TOP END PISTON KIT 75-76 HONDA CR 250 71.0mm 1.0mm OVER VINTCO KTH07-1.0

This top end piston kit is a complete rebuild set for the 1975-1976 Honda CR250, supplied with a VintCo piston kit, wrist pin bearing and a full top-end gasket set for the head, base, intake and exhaust. The components are produced using modern materials and manufacturing techniques for fitment and performance comparable to OEM, and the kit is priced 10% lower than purchasing the items individually.

Features

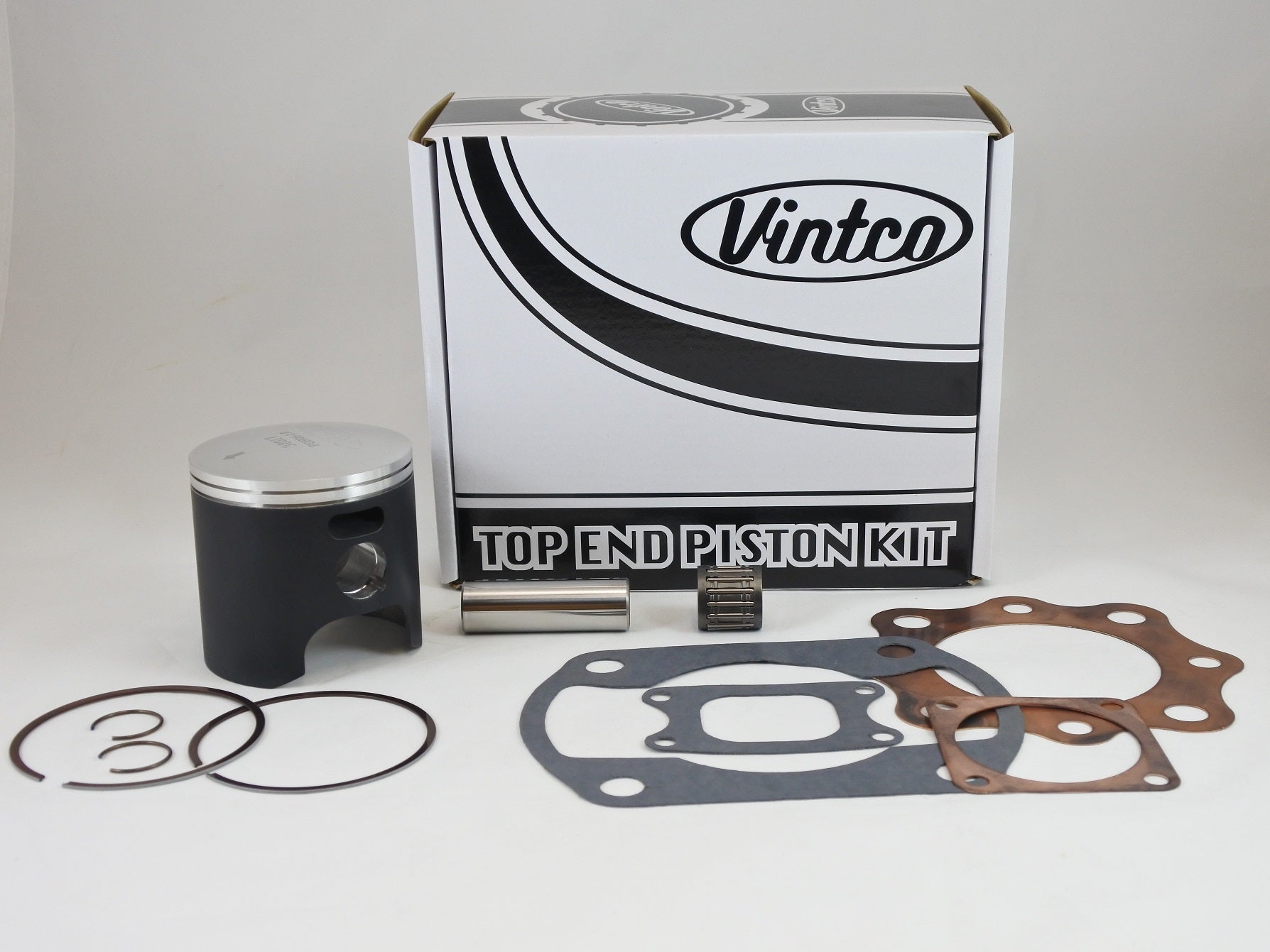

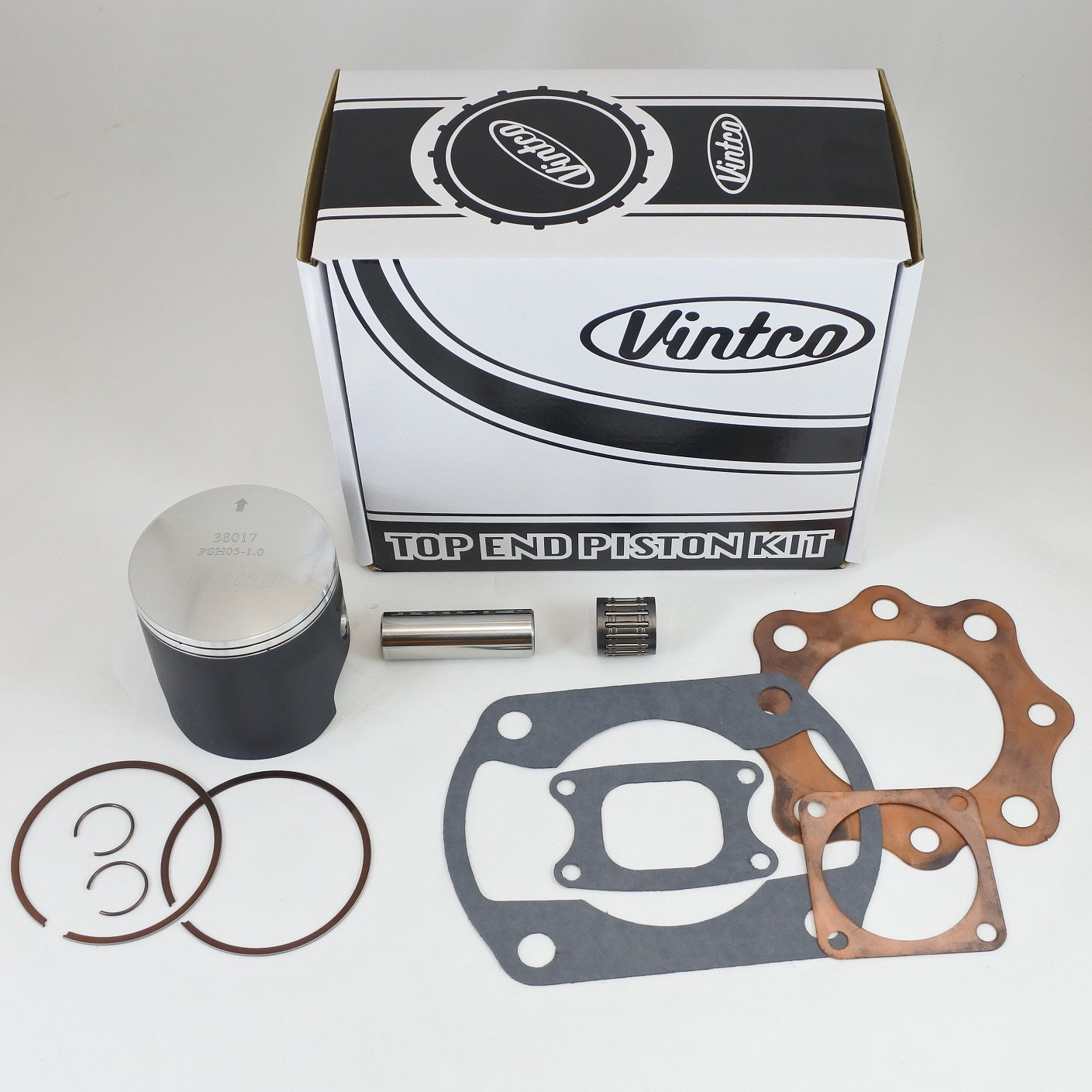

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• Intended for exact-fit replacement on 1975-1976 Honda CR250 models
• Kit pricing is 10% lower than buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH07-1.0
• Product type: Top End Piston Kit
• Piston diameter: 71.0 mm
• Oversize: +1.0 mm
• OEM piston reference diameter: 70.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston origin: Germany

Cross-Reference OEM Part Numbers

• Piston: 13105-395-000
• Head gasket: 12251-357-020
• Base gasket: 12191-381-306
• Intake gasket: 16222-381-000
• Exhaust gasket: 18359-357-000
• Wrist pin bearing: 91015-357-003

Vehicle Fitments

• 1975 Honda CR250
• 1976 Honda CR250
