Top End Piston Kit 75-76 Honda CR 250 70.5mm 0.5mm Over Vintco KTH07-0.5

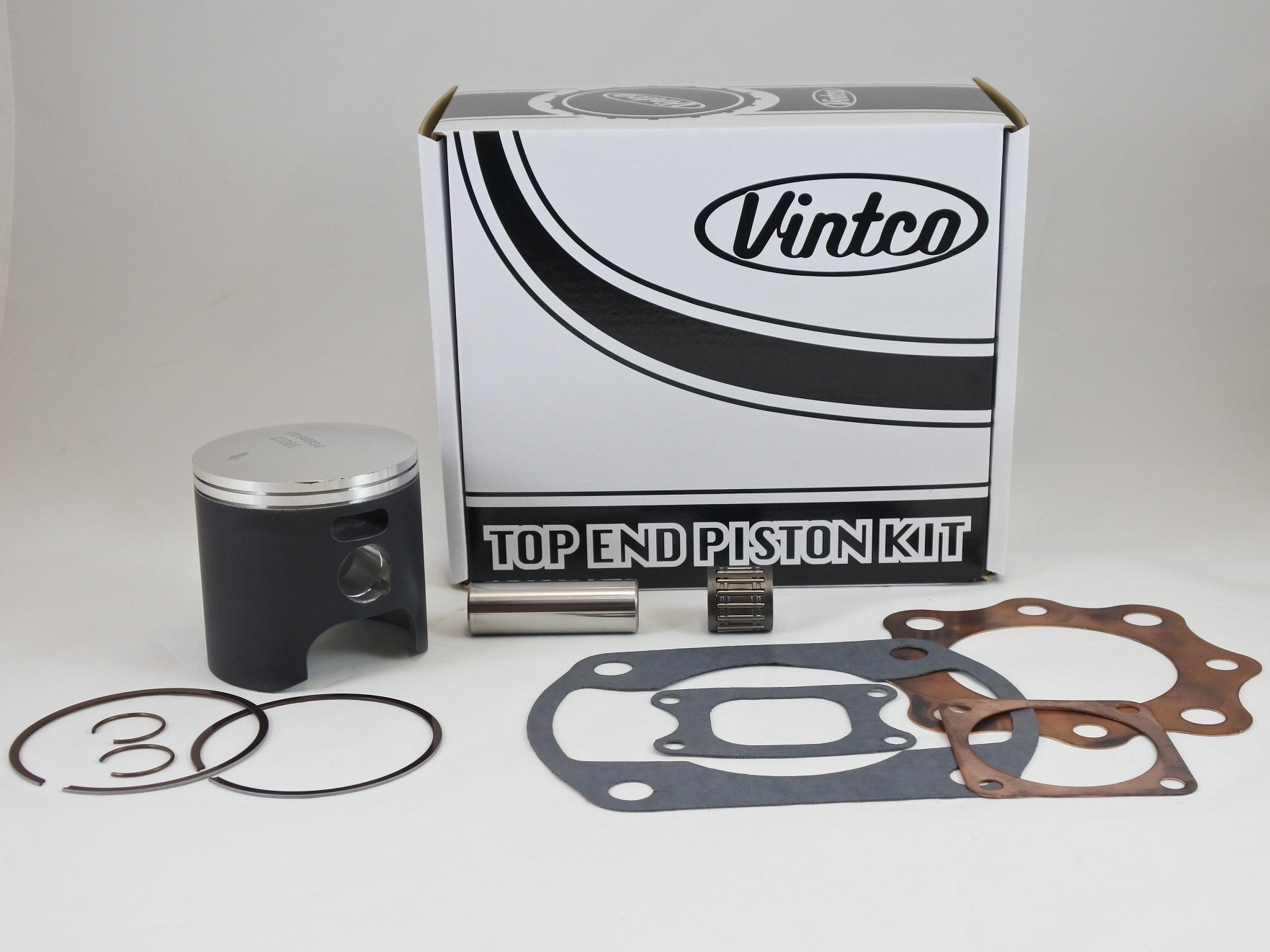

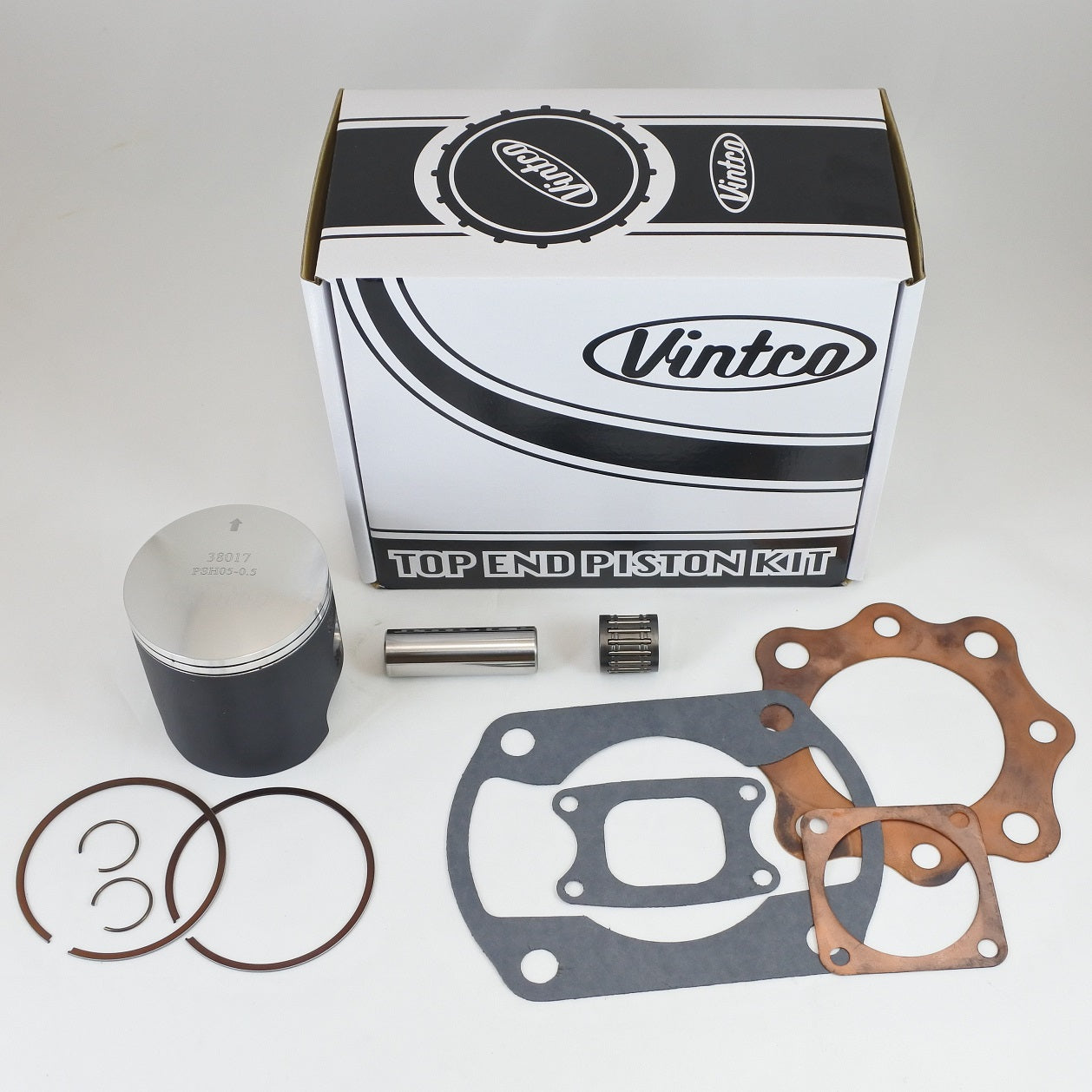

VintCo KTH07-0.5 is a complete top end piston kit for 1975-1976 Honda CR250 models, supplied with a 70.5 mm piston in 0.5 mm oversize for top-end rebuild work. The kit includes a VintCo piston assembly with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing techniques and are intended to provide OEM-equivalent fitment and performance. Additional size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• Intended to simplify top-end rebuilds
• Intended to provide OEM-equivalent fitment and performance
• Kit price includes a 10% saving compared with purchasing the components individually
• MoS2-coated piston for running-in

Specifications

• VintCo Part Number: KTH07-0.5
• Application: 1975-1976 Honda CR250
• Piston size: 70.5 mm
• Oversize: +0.5 mm
• Piston diameter: 70.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13103-395-000
• Head gasket: 12251-357-020
• Base gasket: 12191-381-306
• Intake gasket: 16222-381-000
• Exhaust gasket: 18359-357-000
• Wrist pin bearing: 91015-357-003

Vehicle Fitments

• 1975 Honda CR250
• 1976 Honda CR250
