Top End Piston Kit 74-84 Honda Fl Mt 250 Vintco KTH12-1.0

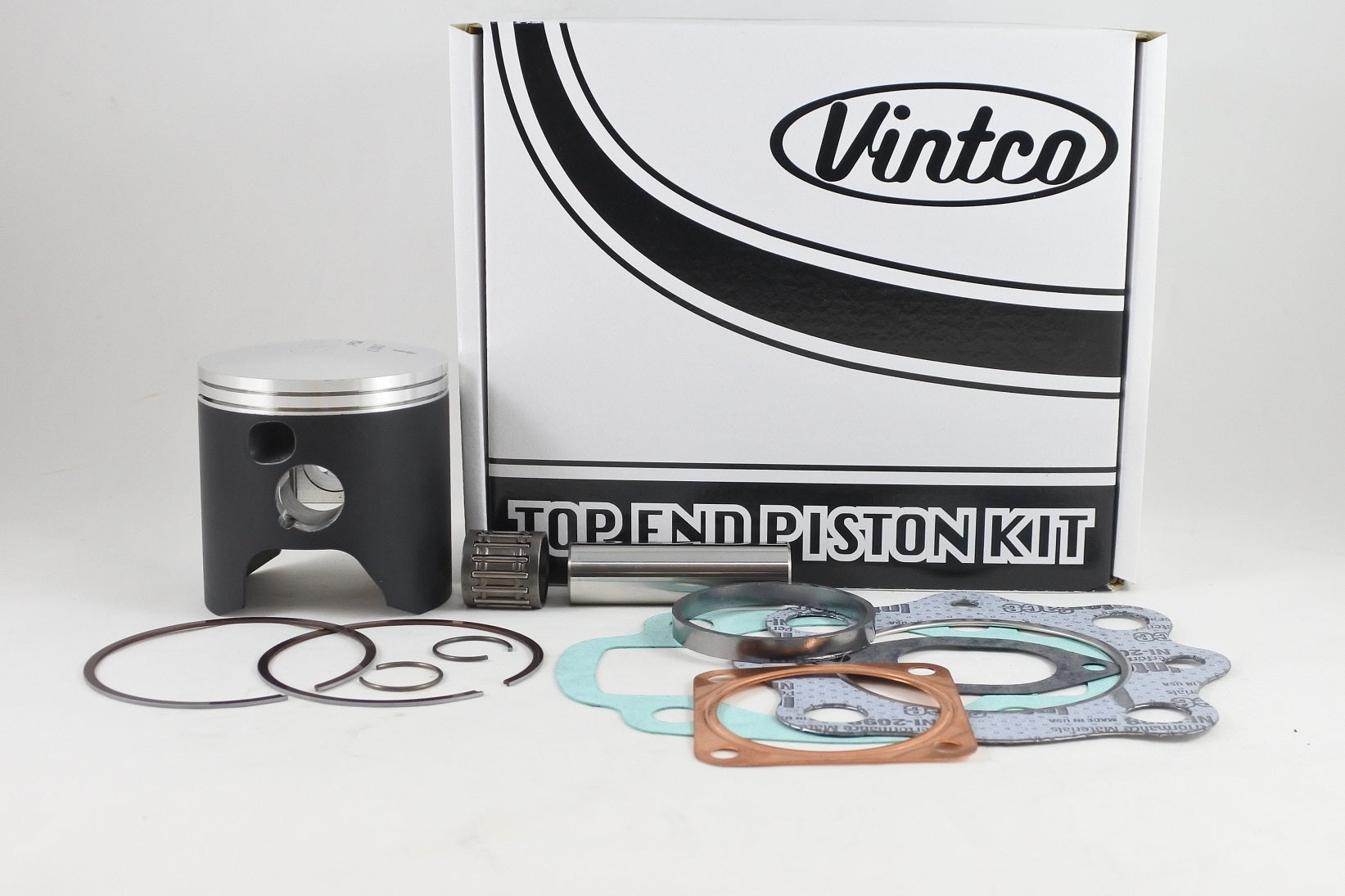

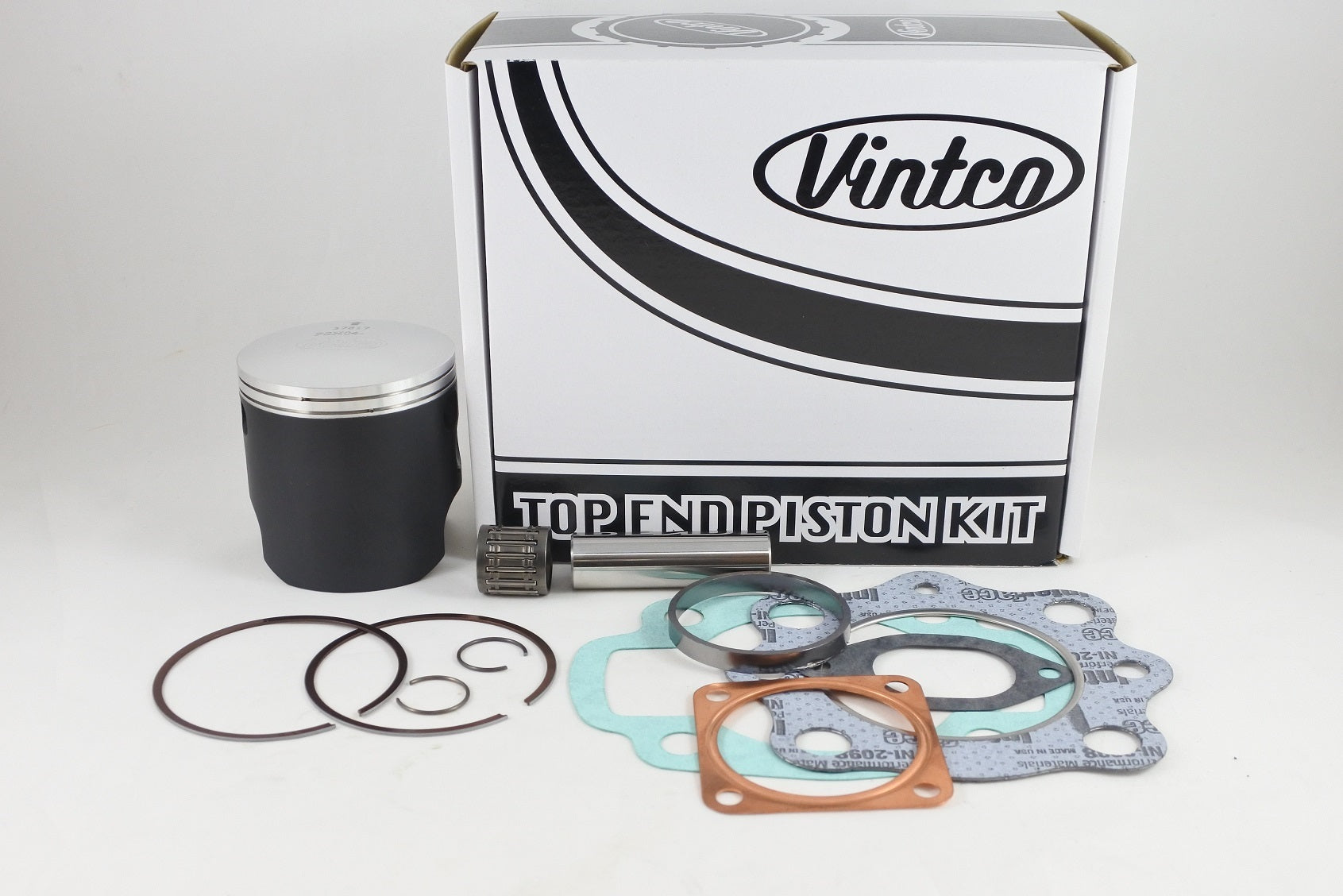

VintCo top end piston kit KTH12-1.0 is a +1.0 mm oversize rebuild kit for 1974-1976 Honda MT250 and 1977-1984 Honda FL250 models. The kit includes a forged piston, head gasket, base gasket, intake gasket, exhaust gaskets and wrist pin bearing, and the kit price includes a 10% discount compared with purchasing the items individually.

Features

• Top end piston kit for engine rebuild and service work
• Includes piston, head gasket, base gasket, intake gasket, exhaust gaskets and wrist pin bearing
• MOS2-coated piston for break-in

Specifications

• VintCo Part Number: KTH12-1.0
• Piston oversize: +1.0 mm
• Piston diameter: 70.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Piston: 13105-395-000 (+1.0 mm)
• Head gasket: 12251-358-306
• Base gasket: 12191-357-306
• Intake gasket: 16229-358-306
• Exhaust gasket: 18359-357-000
• Exhaust gasket: 18352-358-000
• Wrist pin bearing: 91015-357-003

Vehicle Fitments

• 1974 Honda MT250
• 1975 Honda MT250
• 1976 Honda MT250
• 1977 Honda FL250
• 1978 Honda FL250
• 1979 Honda FL250
• 1980 Honda FL250
• 1981 Honda FL250
• 1982 Honda FL250
• 1983 Honda FL250
• 1984 Honda FL250
