TOP END PISTON KIT 74-84 HONDA FL MT 250 STANDARD VINTCO KTH12-00

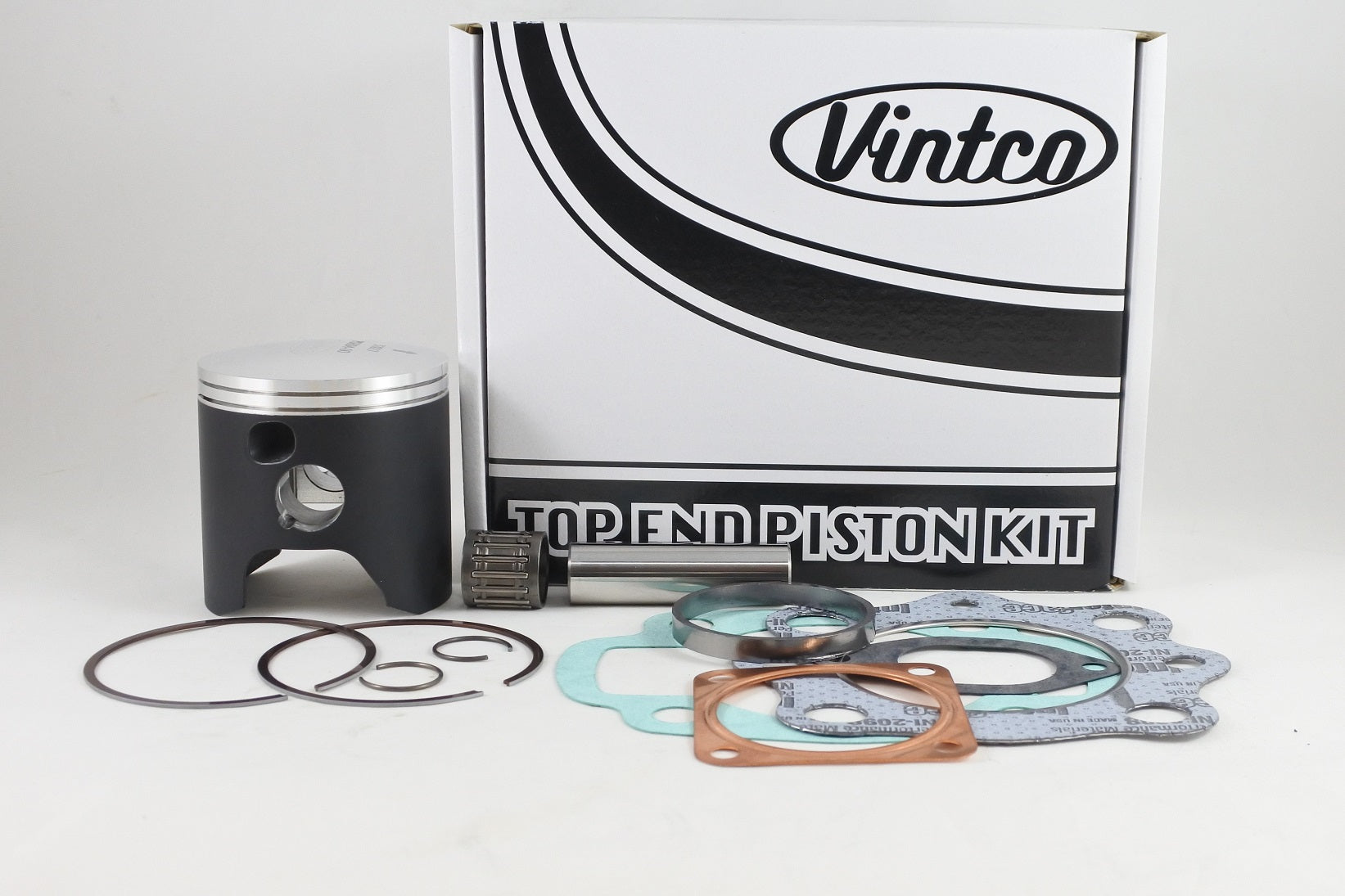

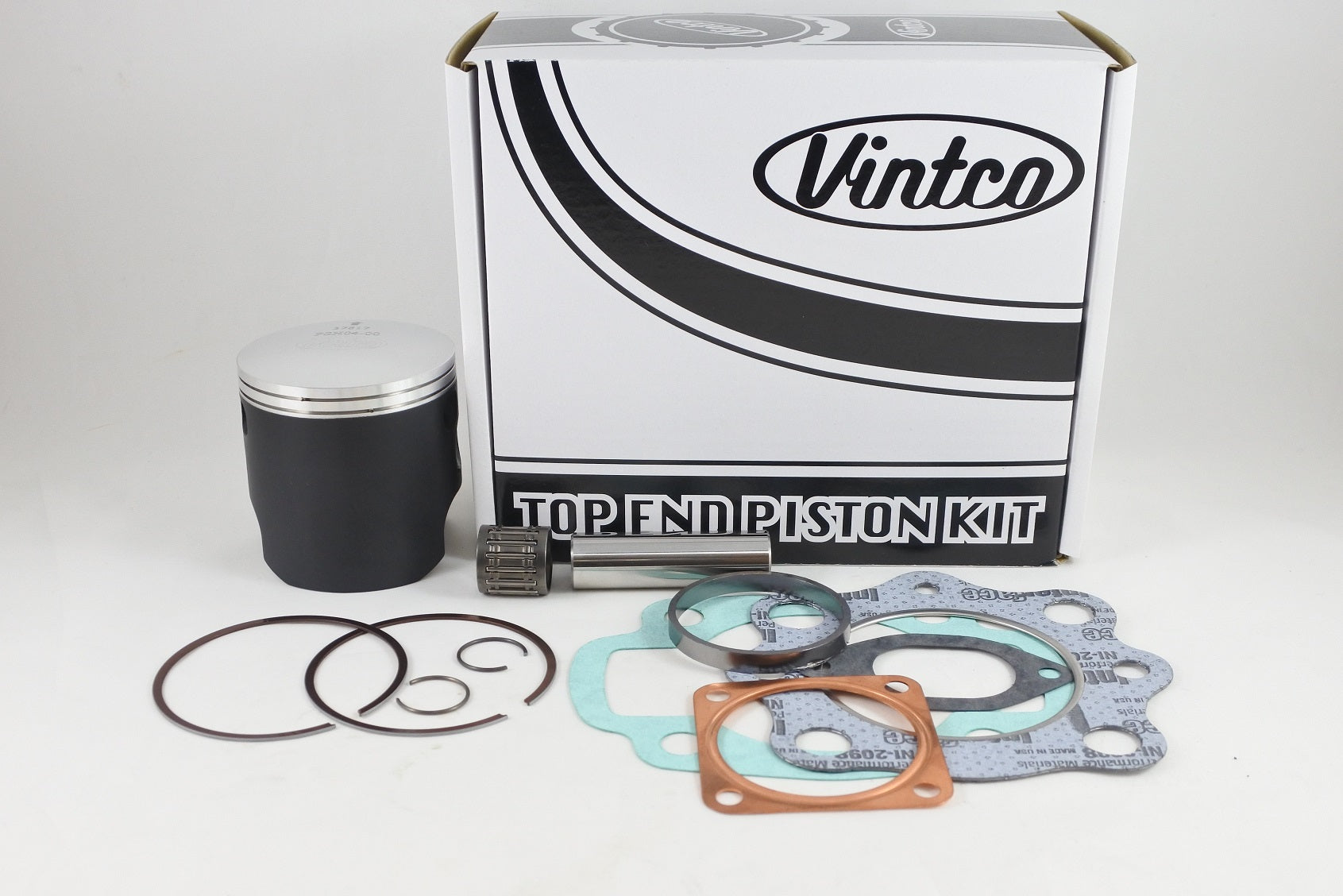

This standard top end piston kit is designed for 1974-1976 Honda MT250 and 1977-1984 Honda FL250 models. The kit combines a forged piston and the required top-end gaskets in one package, with kit pricing set at 10% less than purchasing the items individually.

Features

• Complete top end kit for standard rebuild applications
• Includes forged piston
• Piston is manufactured in Germany
• MOS2-coated piston for break-in
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket

Specifications

• VintCo Part Number: KTH12-00
• Piston size: Standard
• Piston diameter: 69.94 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Piston: 13101-381-000
• Head Gasket: 12251-358-306
• Base Gasket: 12191-357-306
• Intake Gasket: 16229-358-306
• Exhaust Gasket: 18359-357-000
• Exhaust Gasket: 18352-358-000

Vehicle Fitments

• 1974 Honda MT250
• 1975 Honda MT250
• 1976 Honda MT250
• 1977 Honda FL250
• 1978 Honda FL250
• 1979 Honda FL250
• 1980 Honda FL250
• 1981 Honda FL250
• 1982 Honda FL250
• 1983 Honda FL250
• 1984 Honda FL250
