Top End Piston Kit 74-80 Maico 400 78.5mm +1.5mm Over Vintco KTA03-1.5

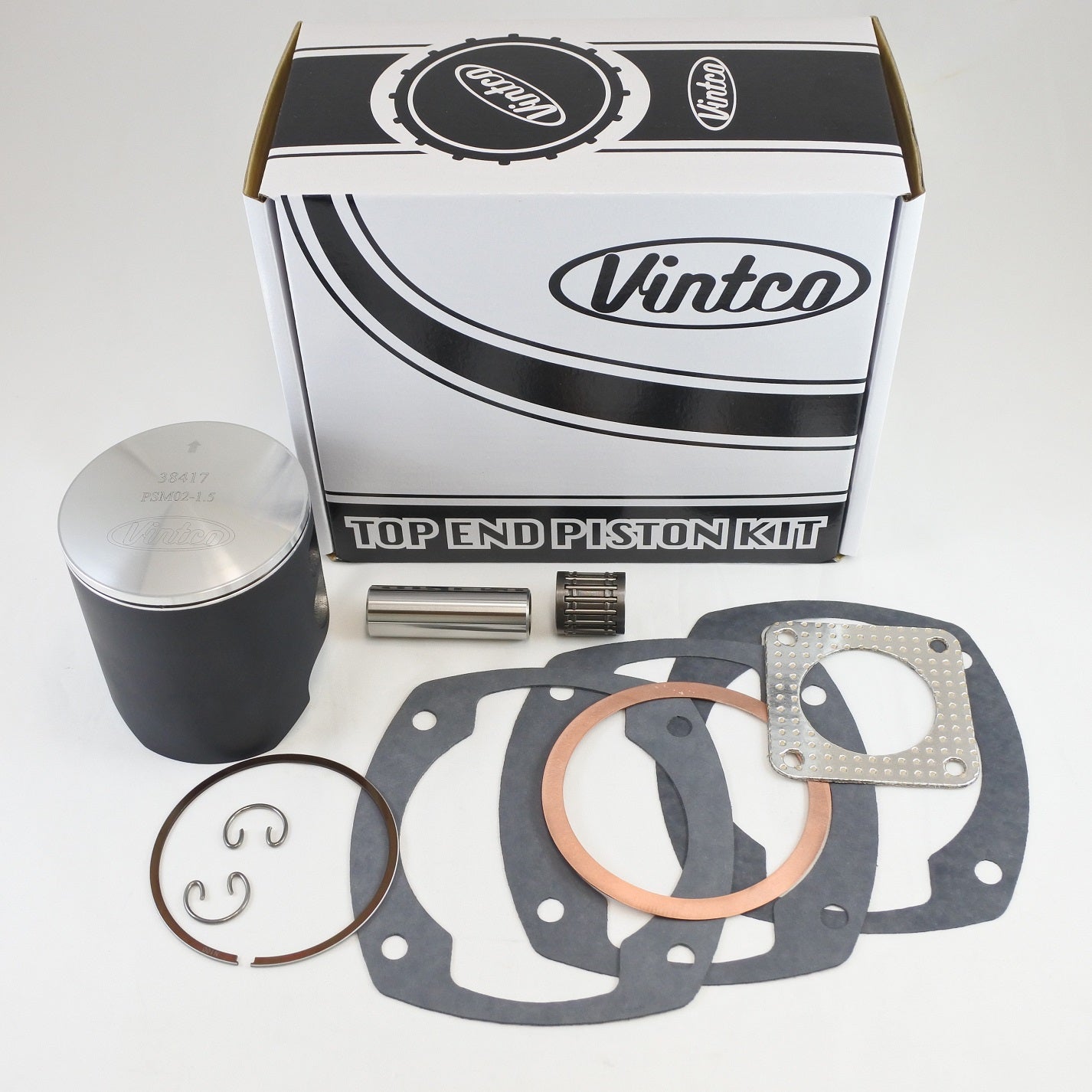

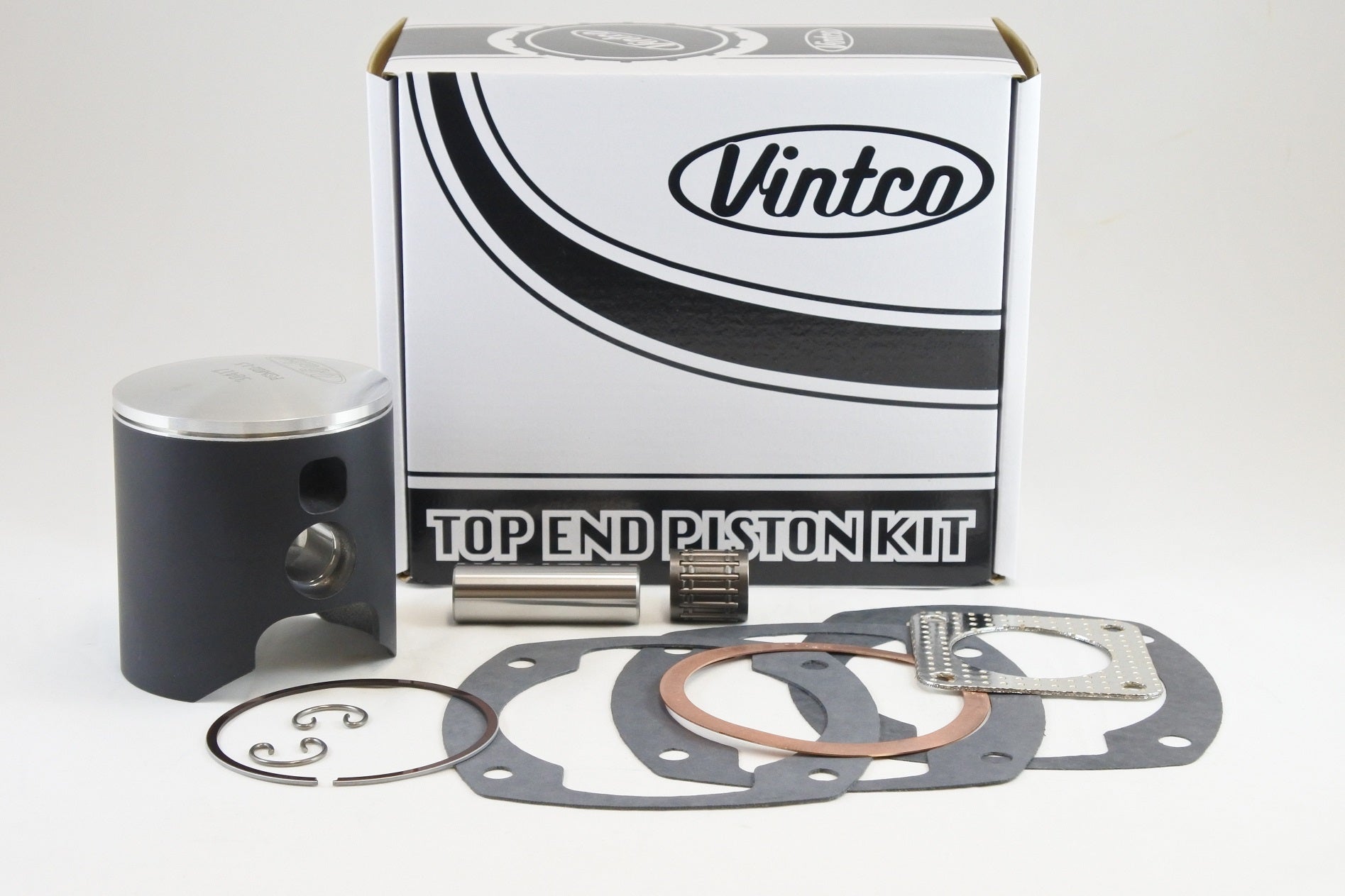

VintCo top end piston kit KTA03-1.5 is a complete rebuild kit for 1974-1980 Maico 400 models. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base and exhaust gaskets. The components are produced using modern materials and manufacturing methods for OEM-equivalent fitment and performance, and the kit is priced at 10% less than purchasing the parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gaskets
• Includes exhaust gasket
• MoS2-coated piston for running-in
• Additional size options available

Specifications

• VintCo Part Number: KTA03-1.5
• Application: Maico 400
• Model years: 1974-1980
• Piston type: Forged
• Country of manufacture: Germany
• Piston size: 78.5 mm
• Oversize: +1.5 mm
• Piston measurement: 78.42 mm
• Piston clearance: 0.08 mm
• Base gasket thickness: 0.3 mm
• Base gasket thickness: 0.5 mm
• Base gasket thickness: 0.7 mm

Cross-Reference OEM Part Numbers

• Head gasket: OE# 720
• Base gasket: OE# 3004
• Base gasket: OE# 721
• Base gasket: OE# 2237
• Exhaust gasket: OE# 298
• Wrist pin bearing: OE# 424

Vehicle Fitments

• 1974 Maico 400
• 1975 Maico 400
• 1976 Maico 400
• 1977 Maico 400
• 1978 Maico 400
• 1979 Maico 400
• 1980 Maico 400
