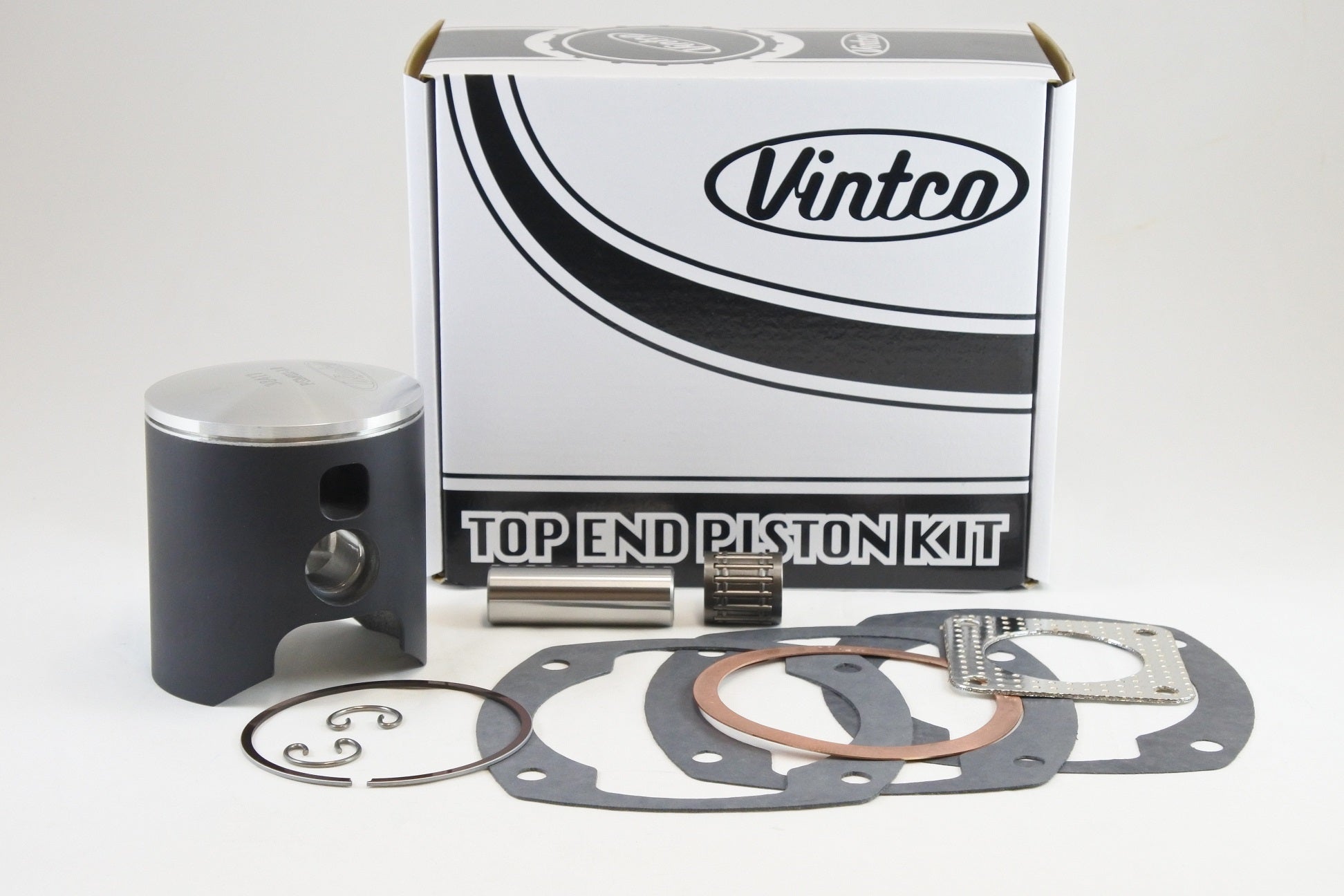

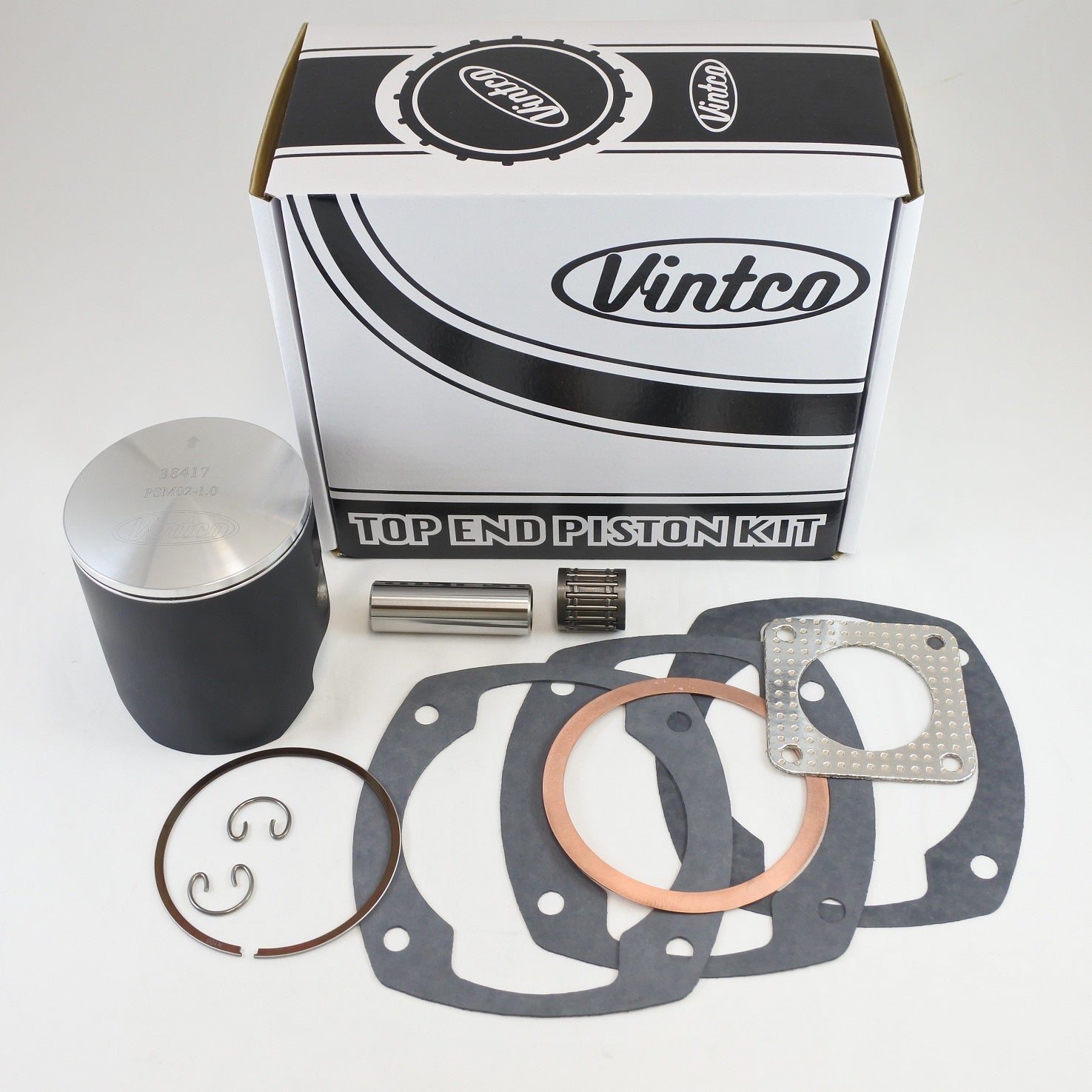

Top End Piston Kit 74-80 Maico 400 78.0mm 1.0mm Over Vintco KTA03-1.0

This top end piston kit is designed for Maico 400 models from 1974 to 1980 and provides the components required for a top-end rebuild in one package. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit with head gasket, base gaskets and exhaust gasket. It is stated as 10% lower in price than purchasing the components individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gaskets
• Includes exhaust gasket
• Designed for Maico 400 models from 1974 to 1980
• Built using modern materials and manufacturing techniques
• Intended to provide OEM-equivalent fitment and performance
• MoS2-coated piston for break-in

Specifications

• VintCo Part Number: KTA03-1.0
• Product type: Top End Piston Kit
• Nominal piston size: 78.0 mm
• Oversize: +1.0 mm over
• Piston measurement: 77.92 mm
• Piston clearance: 0.08 mm
• Base gasket thickness: 0.3 mm
• Base gasket thickness: 0.5 mm
• Base gasket thickness: 0.7 mm
• Piston construction: Forged
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: OE# 2471
• Head gasket: OE# 720
• Base gasket: OE# 3004
• Base gasket: OE# 721
• Base gasket: OE# 2237
• Exhaust gasket: OE# 298
• Wrist pin bearing: OE# 424

Vehicle Fitments

• 1974 Maico 400
• 1975 Maico 400
• 1976 Maico 400
• 1977 Maico 400
• 1978 Maico 400
• 1979 Maico 400
• 1980 Maico 400
