Top End Piston Kit 74-80 Maico 400 77.5mm 0.5mm Over Vintco KTA03-0.5

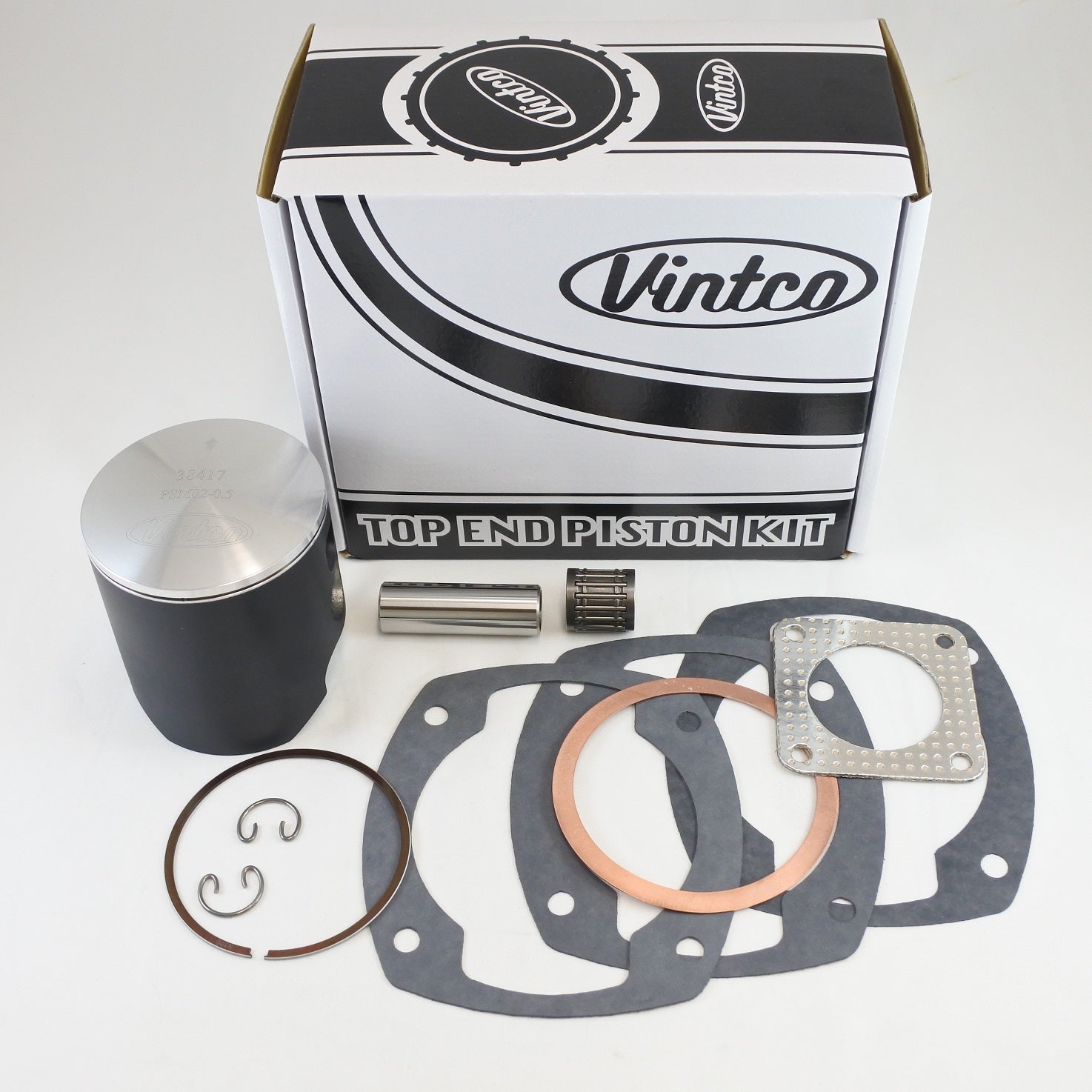

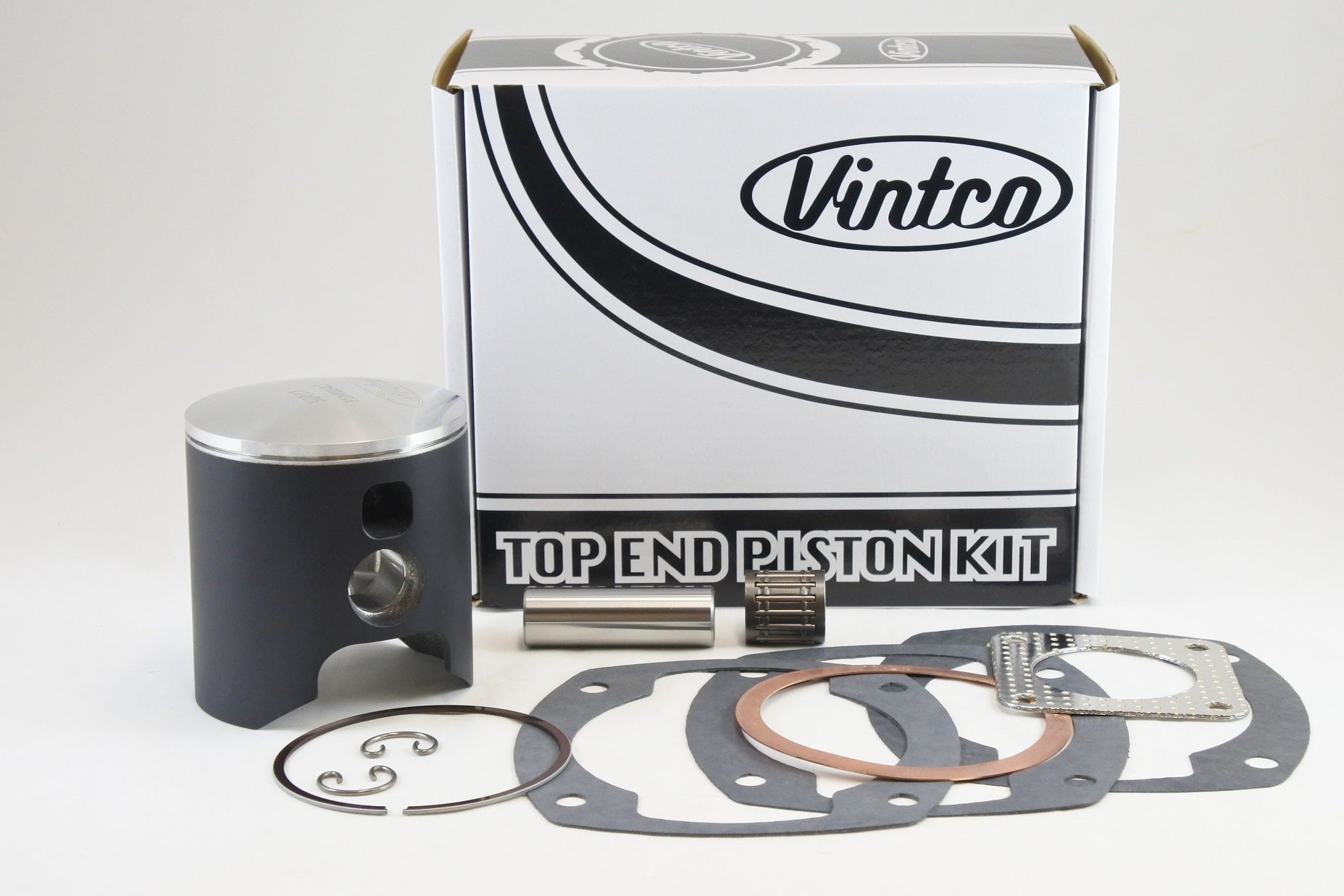

VintCo top end piston kit for 1974-1980 Maico 400 models, supplied as a complete rebuild set with a high-quality VintCo piston kit, top end bearing, and full top-end gasket set. This kit is configured at 77.5 mm with +0.5 mm oversize and uses modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance.

Features

• Complete top end rebuild kit for 1974-1980 Maico 400 models
• Includes VintCo piston kit with piston, rings, pin and clips
• Includes top end bearing, head gasket, base gaskets and exhaust gasket
• Uses modern materials and manufacturing techniques for OEM-equivalent or better fit and performance
• OEM part numbers supplied for exact fitment identification
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options available

Specifications

• VintCo Part Number: KTA03-0.5
• Nominal size: 77.5 mm
• Oversize: +0.5 mm
• Piston size: 77.42 mm
• Clearance: 0.08 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: OE# 720
• Base gasket, 0.3 mm: OE# 3004
• Base gasket, 0.5 mm: OE# 721
• Base gasket, 0.7 mm: OE# 2237
• Exhaust gasket: OE# 298
• Wrist pin bearing: OE# 424

Vehicle Fitments

• 1974 Maico 400
• 1975 Maico 400
• 1976 Maico 400
• 1977 Maico 400
• 1978 Maico 400
• 1979 Maico 400
• 1980 Maico 400
