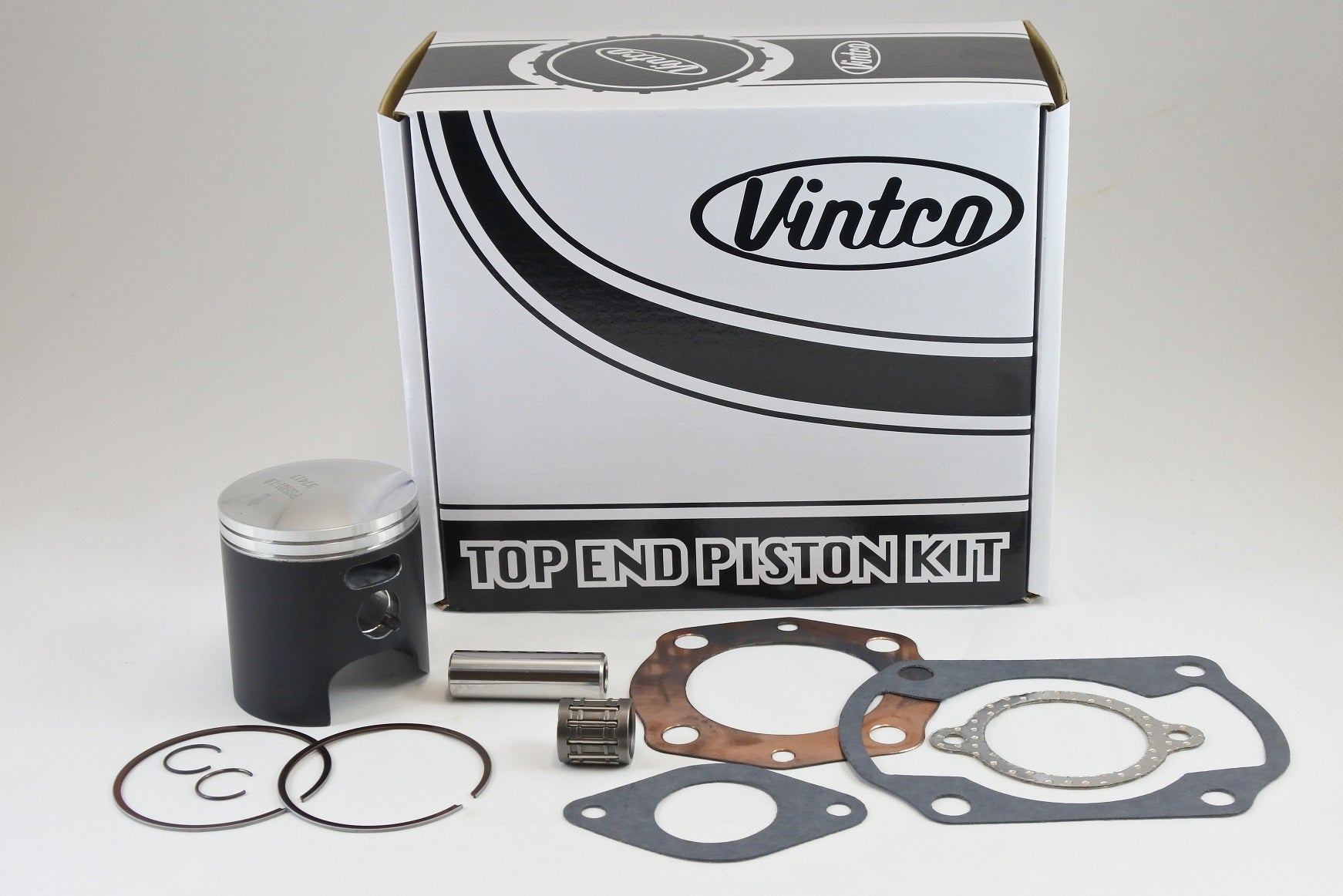

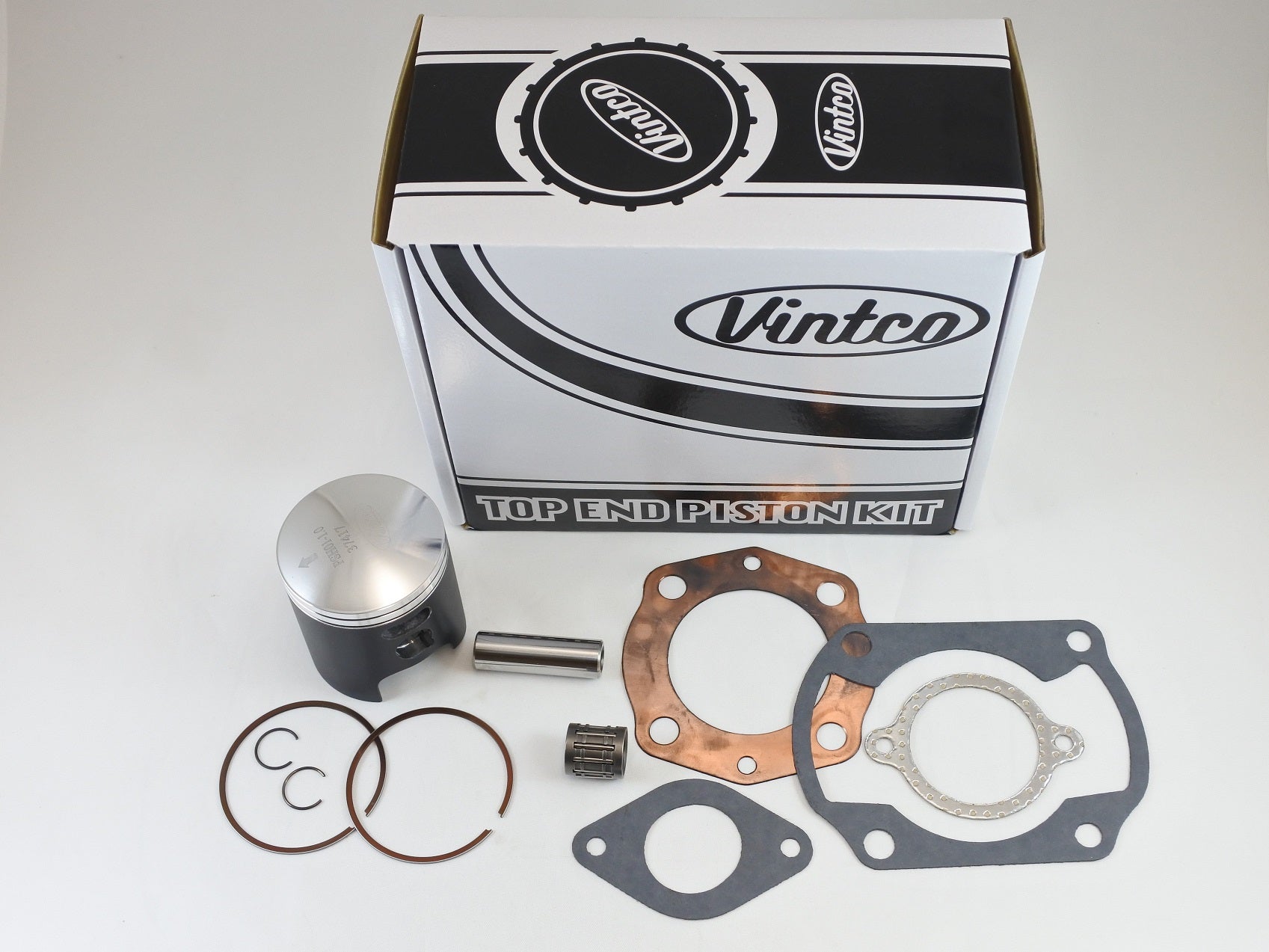

TOP END PISTON KIT 74-78 HONDA CR MT R 125 57.0mm OVER VINTCO KTH01-1.0

VintCo top end piston kit KTH01-1.0 is a complete rebuild kit for 1974-1975 Honda CR125 and 1977-1978 Honda MT125R models. It includes a 57.0 mm (+1.0 mm oversize) piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The kit is intended to simplify top-end rebuilds while providing OEM-equivalent or better fit and performance, and the kit price is 10% lower than buying the components individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Designed to simplify top-end rebuild work
• OEM part numbers supplied for exact fit verification
• Other size options are available

Specifications

• VintCo Part Number: KTH01-1.0
• Bore size: 57.0 mm
• Oversize: +1.0 mm
• Piston diameter: 56.94 mm
• Piston clearance: 0.06 mm
• Forged piston
• Piston made in Germany
• Piston coating: MoS2

Cross-Reference OEM Part Numbers

• Piston: 13105-360-700
• Head Gasket: 12251-360-000
• Base Gasket: 12191-373-306
• Intake Gasket: 16212-360-306
• Exhaust Gasket: 18359-360-000
• Wrist Pin Bearing: 91007-444-004

Vehicle Fitments

• 1974 Honda CR125
• 1975 Honda CR125
• 1977 Honda MT125R
• 1978 Honda MT125R
