TOP END PISTON KIT 74-77 YAMAHA TY 250 70mm STANDARD VINTCO KTY42-00
  • TOP END PISTON KIT 74-77 YAMAHA TY 250 70mm STANDARD VINTCO KTY42-00
  • TOP END PISTON KIT 74-77 YAMAHA TY 250 70mm STANDARD VINTCO KTY42-00
  • TOP END PISTON KIT 74-77 YAMAHA TY 250 70mm STANDARD VINTCO KTY42-00
  • TOP END PISTON KIT 74-77 YAMAHA TY 250 70mm STANDARD VINTCO KTY42-00
TOP END PISTON KIT 74-77 YAMAHA TY 250 70mm STANDARD VINTCO KTY42-00

TOP END PISTON KIT 74-77 YAMAHA TY 250 70mm STANDARD VINTCO KTY42-00

£205.89 GBP
Taxes included. Shipping calculated at checkout.

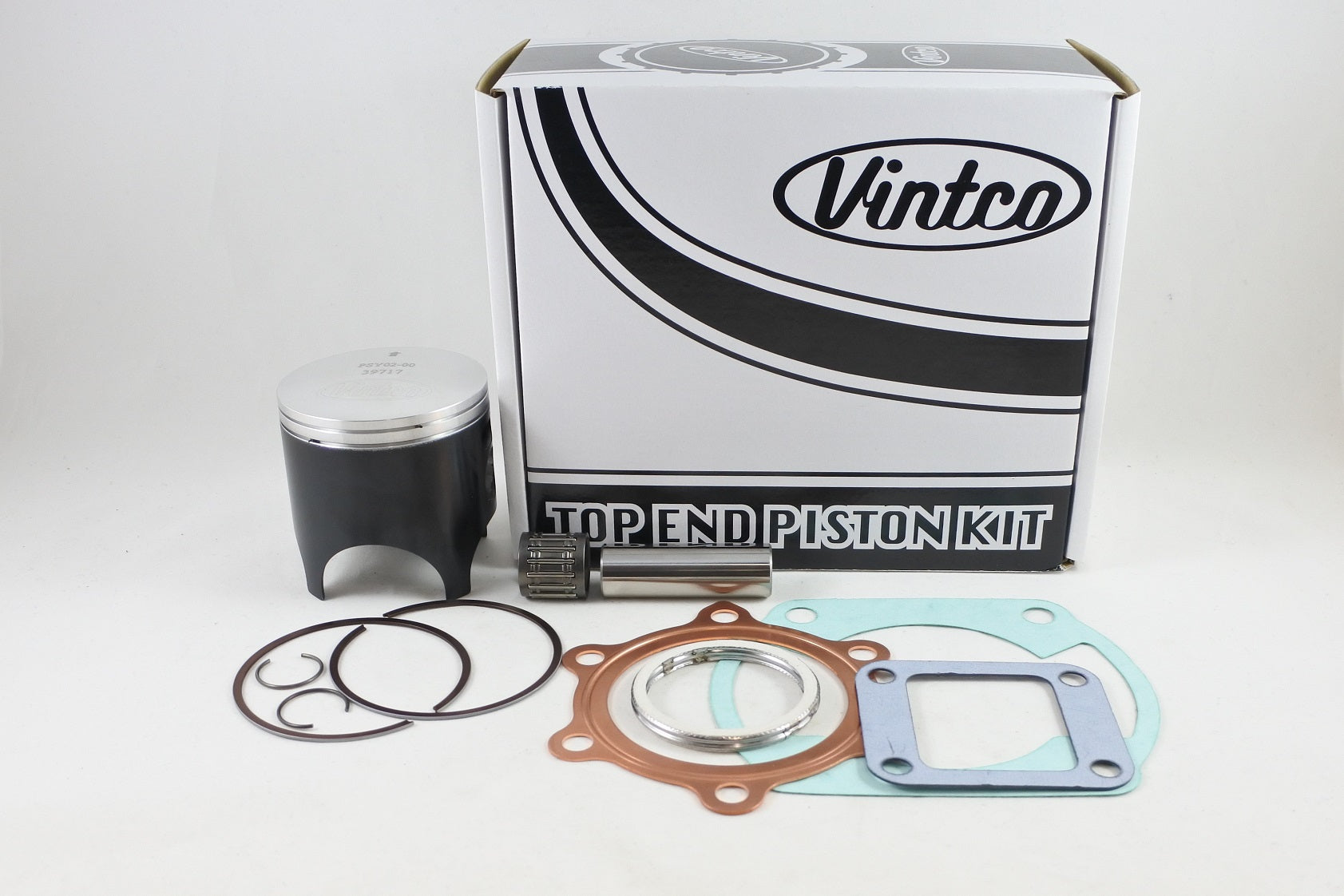

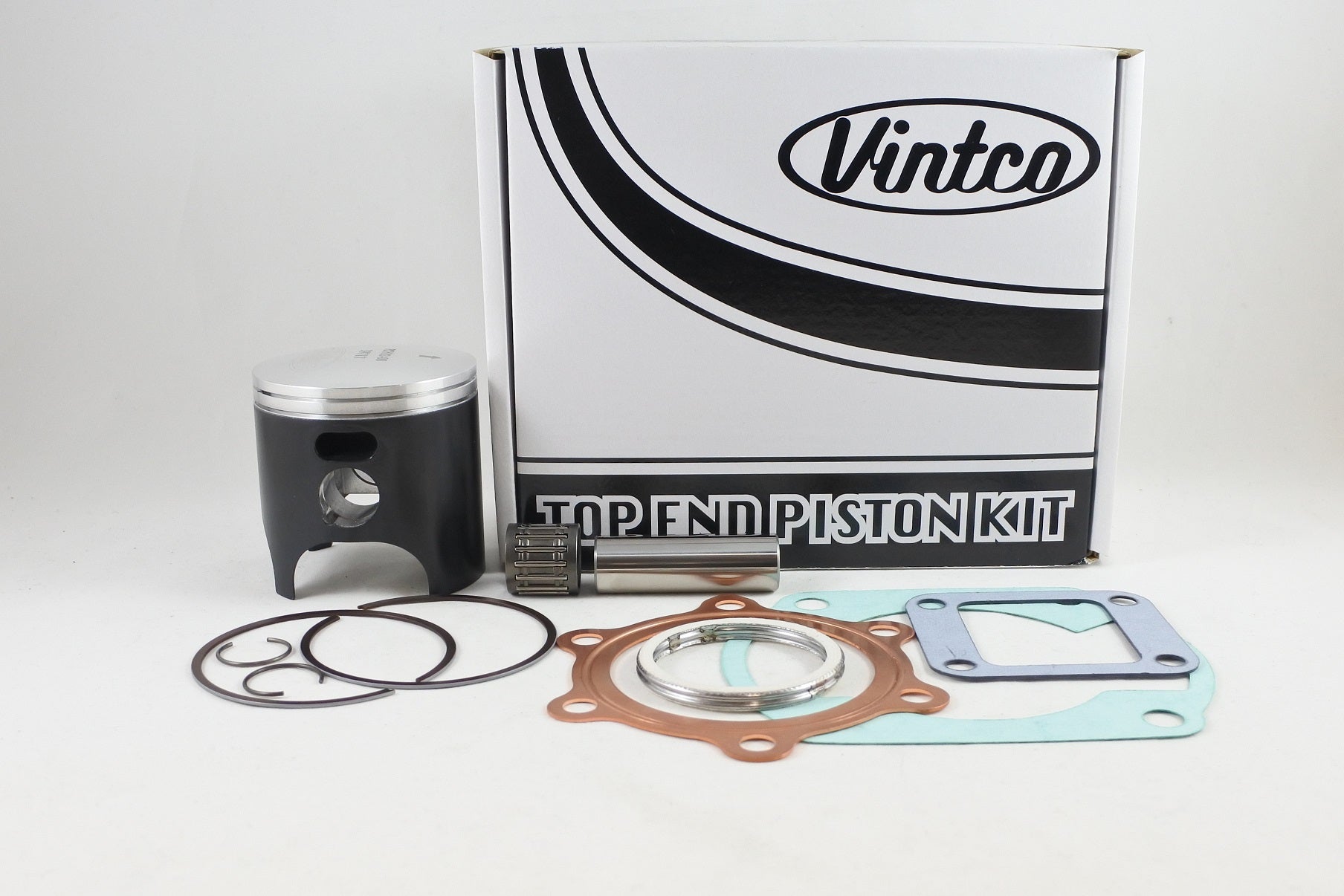

Top end piston kit for 1974-1977 Yamaha TY250 models, supplied with a standard-size piston, the required top end gaskets and a wrist pin bearing for top end service work. The kit includes cylinder head, cylinder base, reed valve and exhaust pipe gaskets. Kit pricing includes a 10% reduction compared with purchasing the items individually.

Features

  • Complete top end piston kit for Yamaha TY250 models
  • Includes standard-size piston
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY42-00
  • Item Category: Top End Piston Kits
  • Piston nominal size: 70 mm standard
  • Piston diameter: 69.94 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 434-11181-00-00
  • Cylinder Base Gasket: 364-11351-01-00
  • Reed Valve Gasket: 87A-13621-00-00
  • Exhaust Pipe Gasket: 214-14613-09-00

Vehicle Fitments

  • 1974 Yamaha TY250
  • 1975 Yamaha TY250
  • 1976 Yamaha TY250
  • 1977 Yamaha TY250
