Top End Piston Kit 74-77 Husqvarna CR WR 250 71.0mm 1.5mm Over Vintco KTU01-1.5

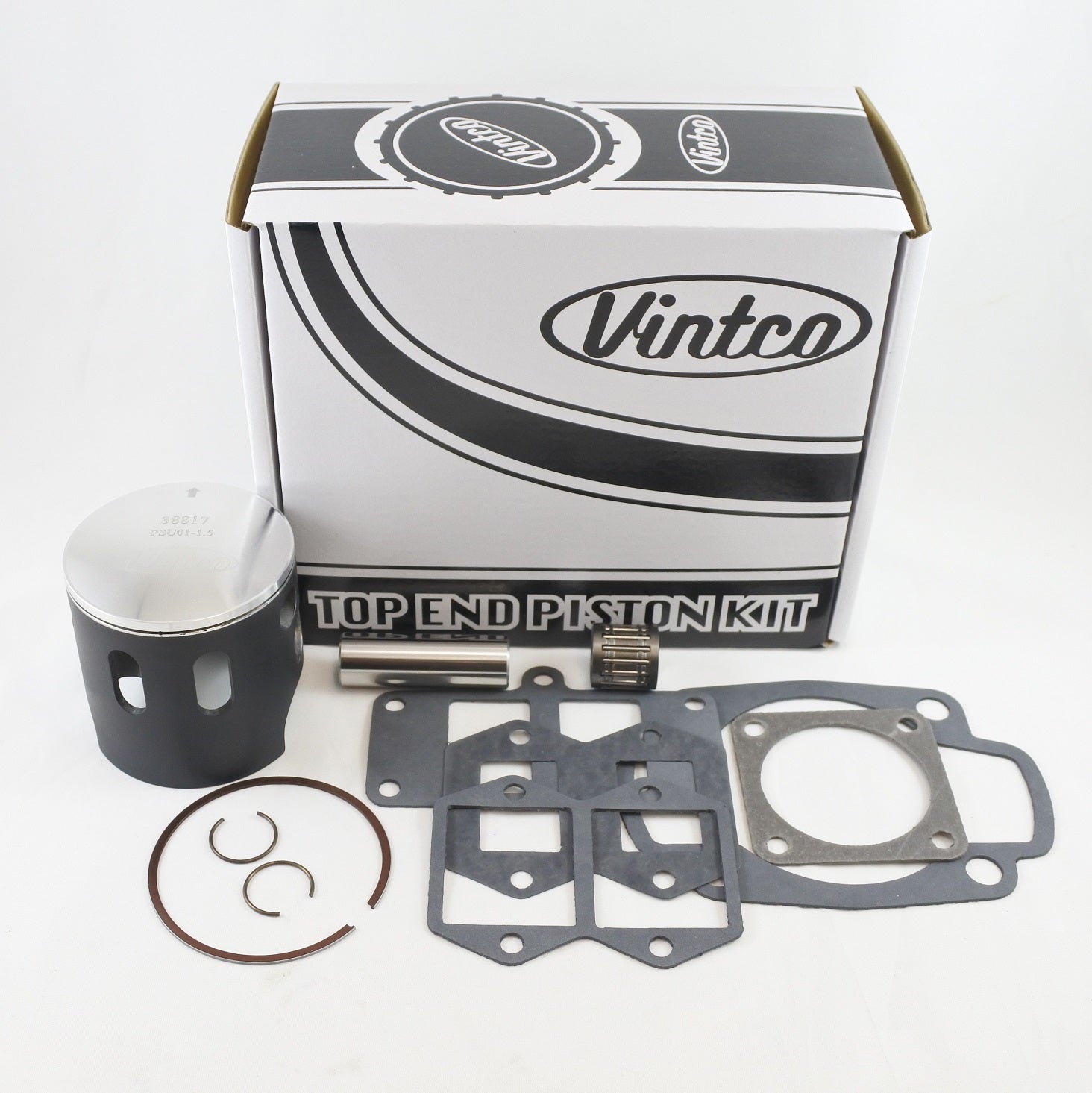

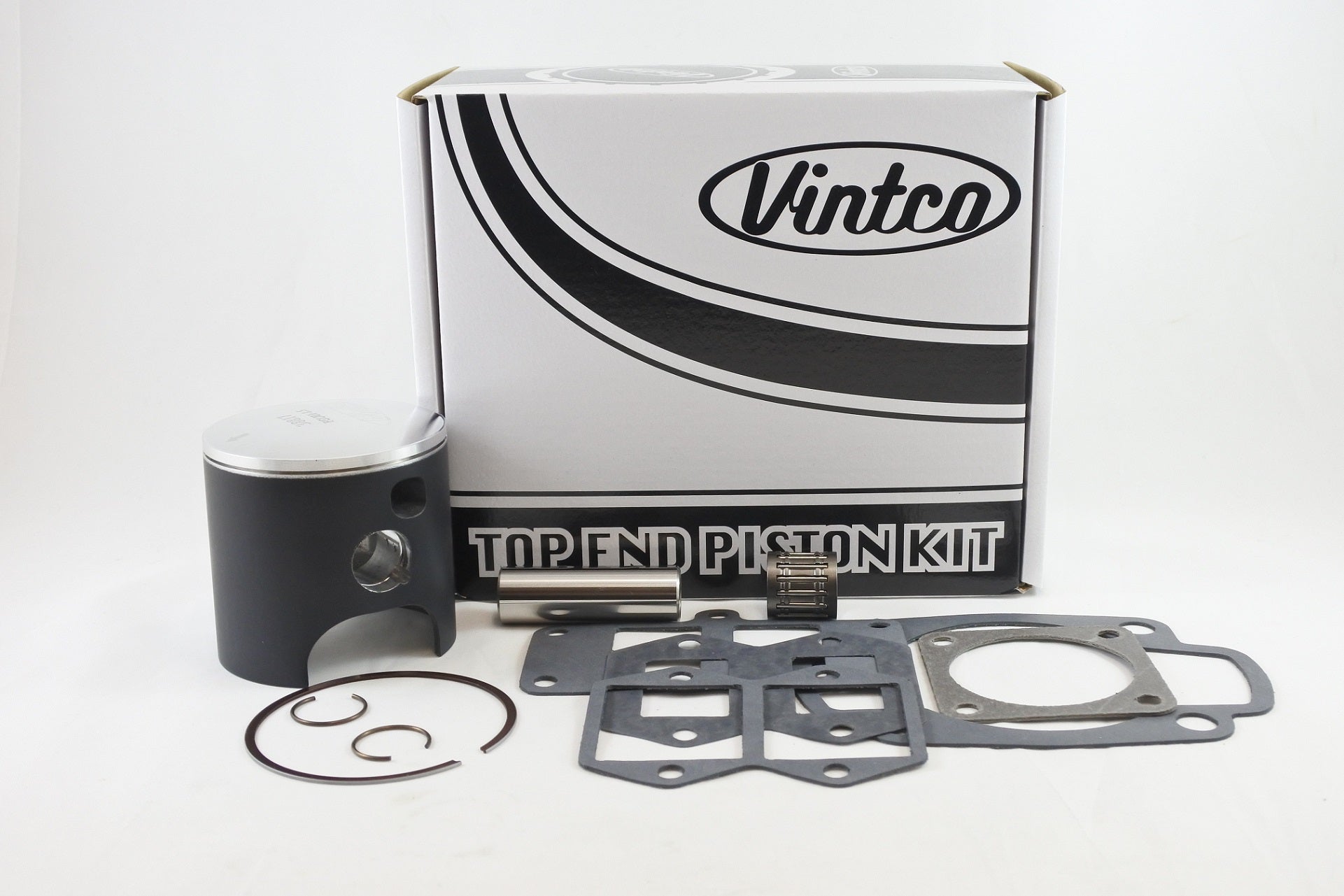

VintCo KTU01-1.5 is a top end piston kit for listed 1974-1977 Husqvarna CR250 and 1975-1977 WR250 models. It is supplied as a complete rebuild package with piston, rings, pin, clips, a top end bearing, and a full top-end gasket set including base, intake, and exhaust gaskets. The kit is intended to simplify top-end rebuilds with OEM-equivalent fitment and performance, and it is supplied in a 71.0 mm, +1.5 mm oversize configuration. Other size options are also available, and the bundled kit pricing is 10% lower than purchasing the components individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Gasket set includes base gasket, intake gaskets and exhaust gasket
• Intended to simplify top-end rebuild work
• Designed for OEM-equivalent fitment and performance
• Supplied as a bundled kit priced 10% lower than the individual components
• Other size options available

Specifications

• VintCo Part Number: KTU01-1.5
• Piston nominal size: 71.0 mm
• Oversize: +1.5 mm
• Piston size: 70.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston origin: Germany

Cross-Reference OEM Part Numbers

• Base gasket: 1 16 10 386-01
• Intake gasket: 1 16 10 361-01
• Intake gasket: 1 16 10 362-01
• Intake gasket: 1 16 10 369-01
• Exhaust gasket: 1 16 10 894-01
• Wrist pin bearing: 16-10-933-01

Vehicle Fitments

• 1974 Husqvarna CR250
• 1975 Husqvarna WR250
• 1975 Husqvarna CR250
• 1976 Husqvarna CR250
• 1976 Husqvarna WR250
• 1977 Husqvarna CR250
• 1977 Husqvarna WR250
