Top End Piston Kit 74-77 Husqvarna CR WR 250 70.mm 0.5mm Over Vintco KTU01-0.5

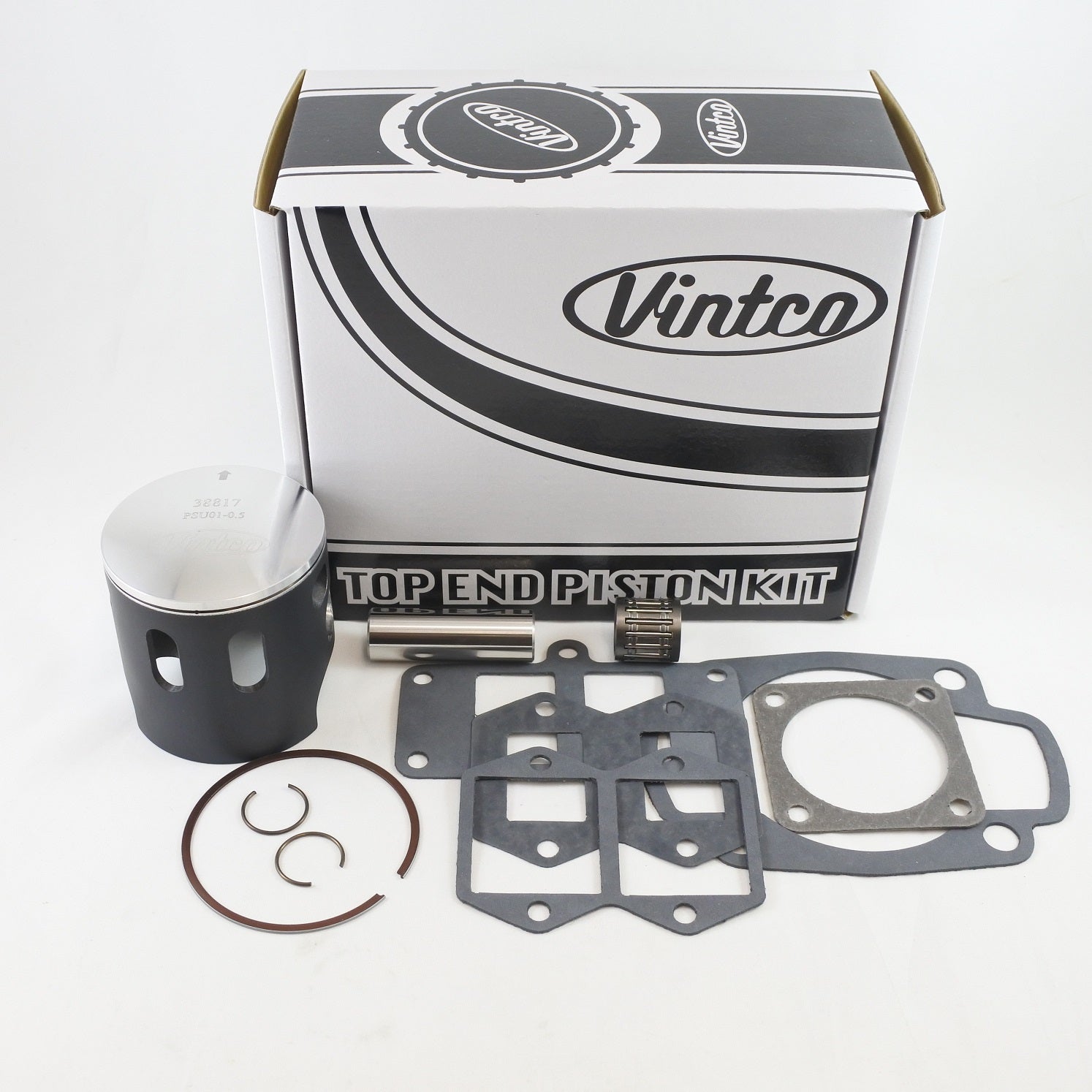

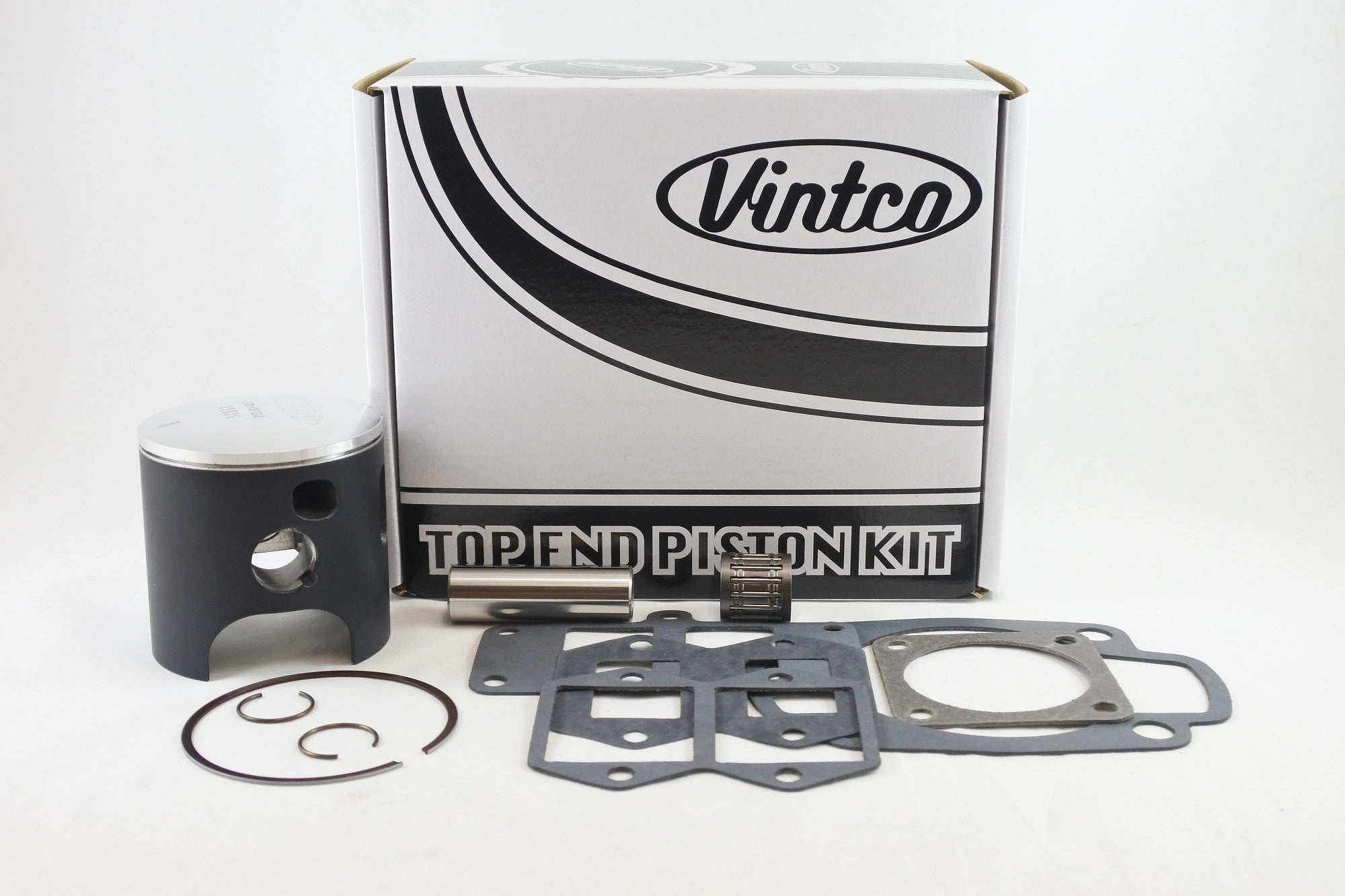

VintCo top end piston kit KTU01-0.5 is a complete rebuild kit for 1974-1977 Husqvarna CR250 and WR250 models, supplied for a 70 mm bore in +0.5 mm oversize. The kit includes a piston assembly with rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with base, intake and exhaust gaskets for a top-end rebuild.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Gasket set includes base, intake and exhaust gaskets
• OEM part numbers provided for fitment verification
• Manufactured using modern materials and manufacturing techniques
• Package price is 10% lower than purchasing the items individually
• Additional size options available

Specifications

• VintCo Part Number: KTU01-0.5
• Product type: Top end piston kit
• Bore size: 70 mm
• Oversize: +0.5 mm
• Piston diameter: 69.94 mm
• Piston-to-wall clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 break-in coating
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 16 10 376-03
• Base gasket: 1 16 10 386-01
• Intake gasket: 1 16 10 361-01
• Intake gasket: 1 16 10 362-01
• Intake gasket: 1 16 10 369-01
• Exhaust gasket: 1 16 10 894-01
• Wrist pin bearing: 16-10-933-01

Vehicle Fitments

• 1974 Husqvarna CR250
• 1975 Husqvarna WR250
• 1975 Husqvarna CR250
• 1976 Husqvarna CR250
• 1976 Husqvarna WR250
• 1977 Husqvarna CR250
• 1977 Husqvarna WR250
