TOP END PISTON KIT 74-77 HUSQVARNA CR WR 250 70.5mm 1.0mm OVER VINTCO KTU01-1.0

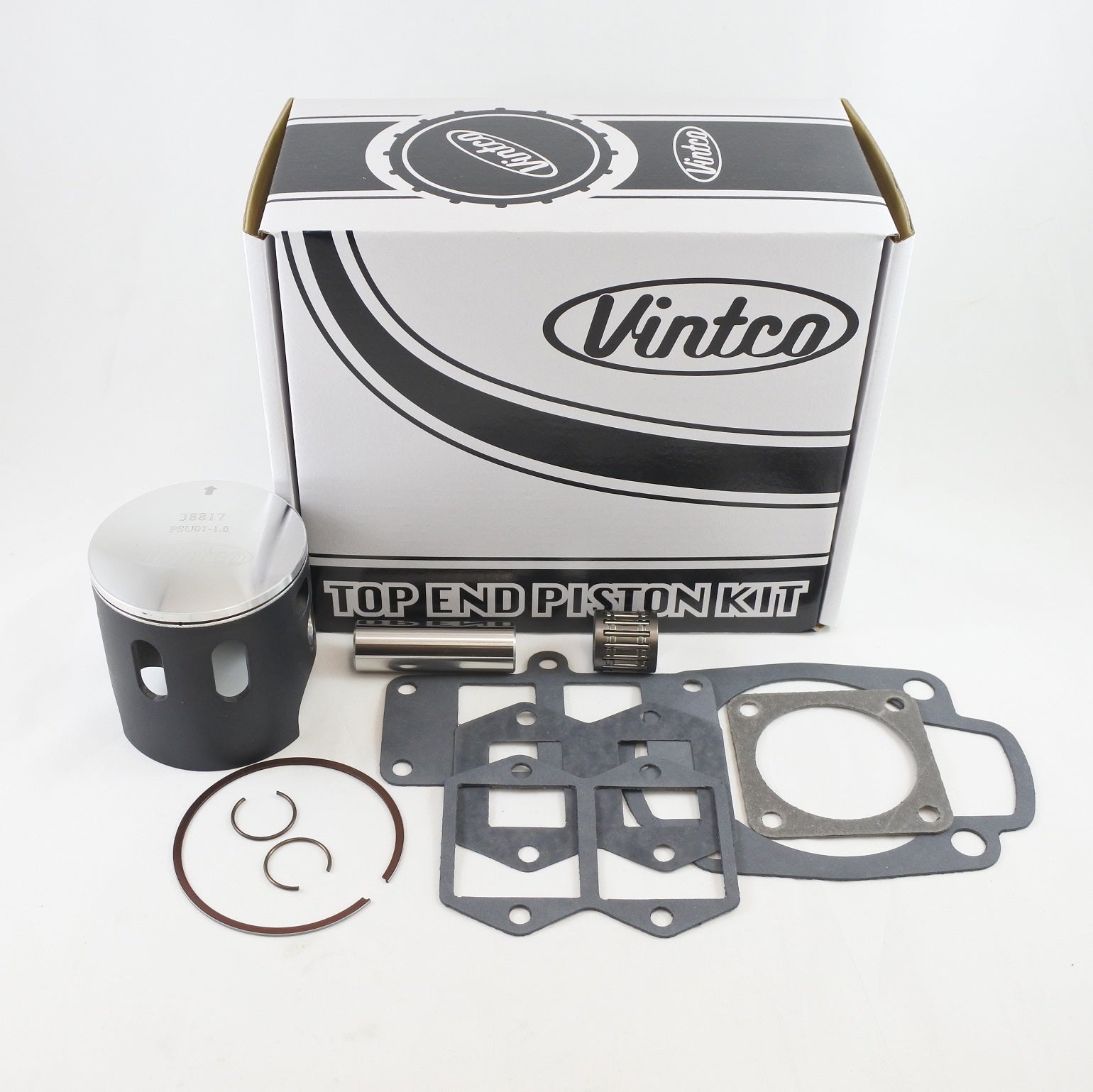

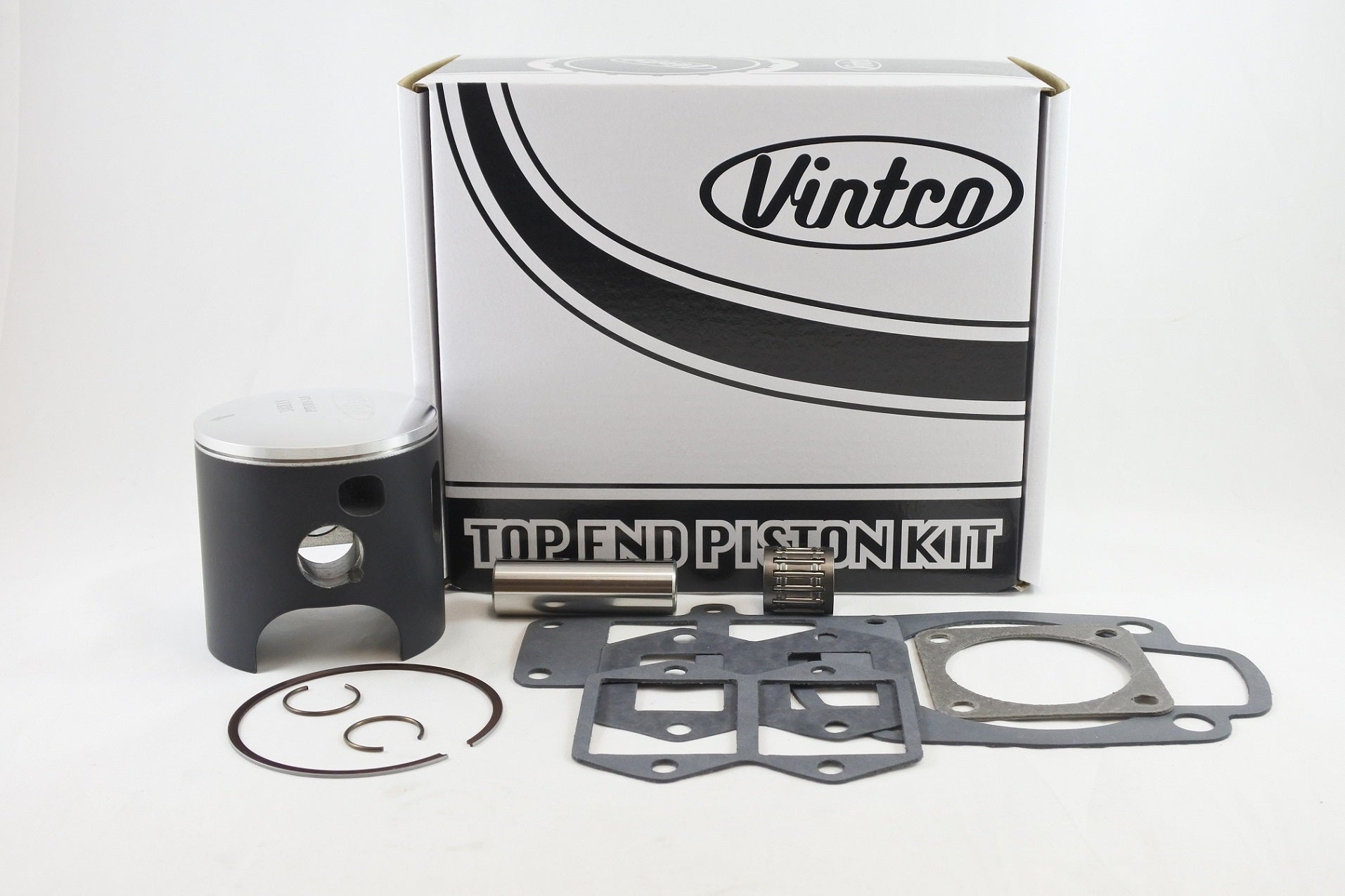

This top end piston kit is designed for 1974–1977 Husqvarna CR250 and WR250 models and provides the components required for a complete top-end rebuild. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising the base gasket, intake gaskets and exhaust gasket. Components are produced using modern materials and manufacturing methods for OEM-equivalent fit and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes base gasket
• Includes intake gaskets
• Includes exhaust gasket
• Forged piston
• MoS2-coated piston for break-in
• Cost is 10% lower than purchasing the components individually
• Other size options are available

Specifications

• VintCo Part Number: KTU01-1.0
• Application: Husqvarna CR250 / WR250
• Year range: 1974–1977
• Piston size: 70.5 mm
• Oversize: +1.0 mm
• Piston measurement: 70.44 mm
• Clearance: 0.06 mm
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Base Gasket: 1 16 10 386-01
• Intake Gasket: 1 16 10 361-01
• Intake Gasket: 1 16 10 362-01
• Intake Gasket: 1 16 10 369-01
• Exhaust Gasket: 1 16 10 894-01
• Wrist Pin Bearing: 16-10-933-01

Vehicle Fitments

• 1974 Husqvarna CR250
• 1975 Husqvarna WR250
• 1975 Husqvarna CR250
• 1976 Husqvarna CR250
• 1976 Husqvarna WR250
• 1977 Husqvarna CR250
• 1977 Husqvarna WR250
