TOP END PISTON KIT 74-77 HUSQVARNA CR WR 250 69.5 mm STANDARD VINTCO KTU01-00

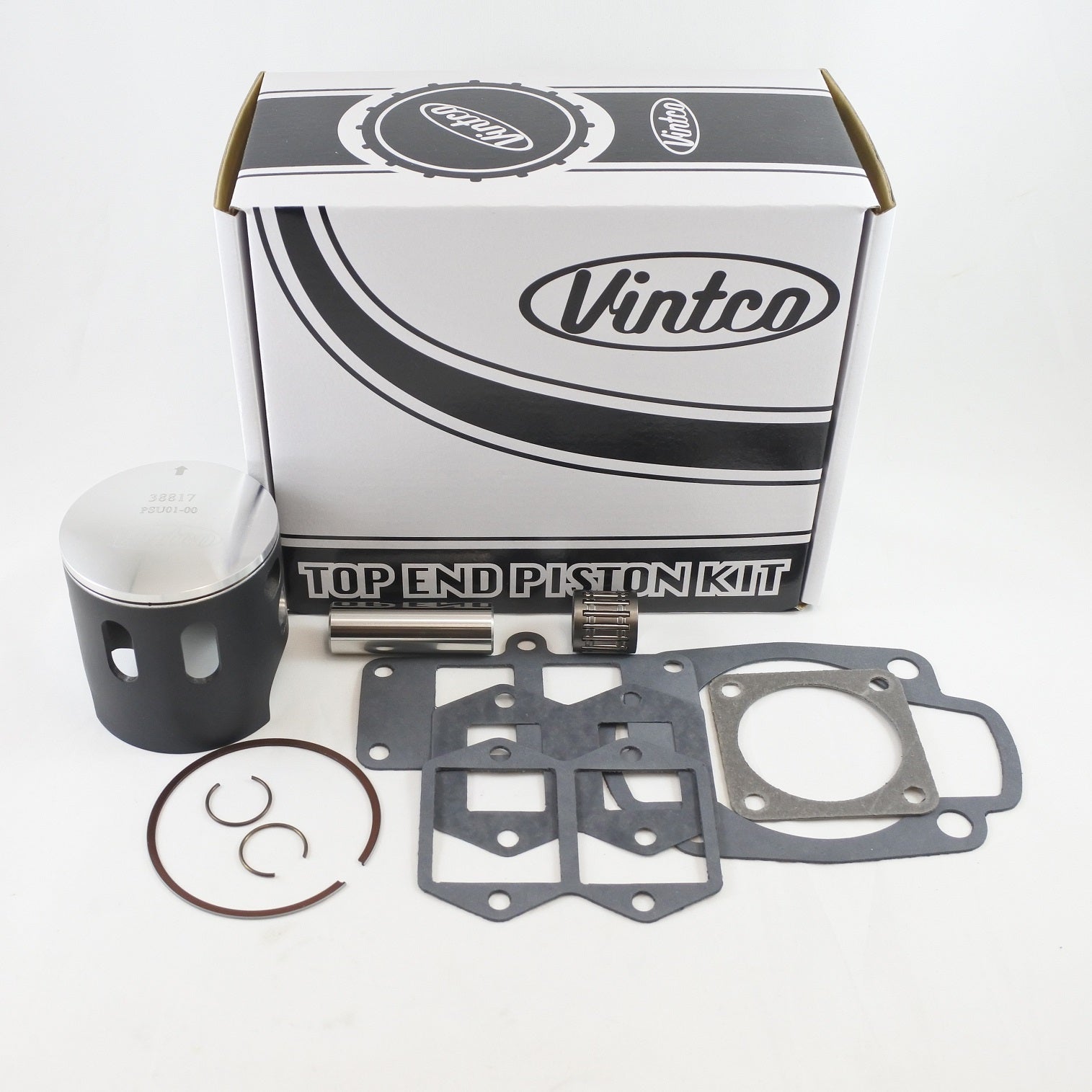

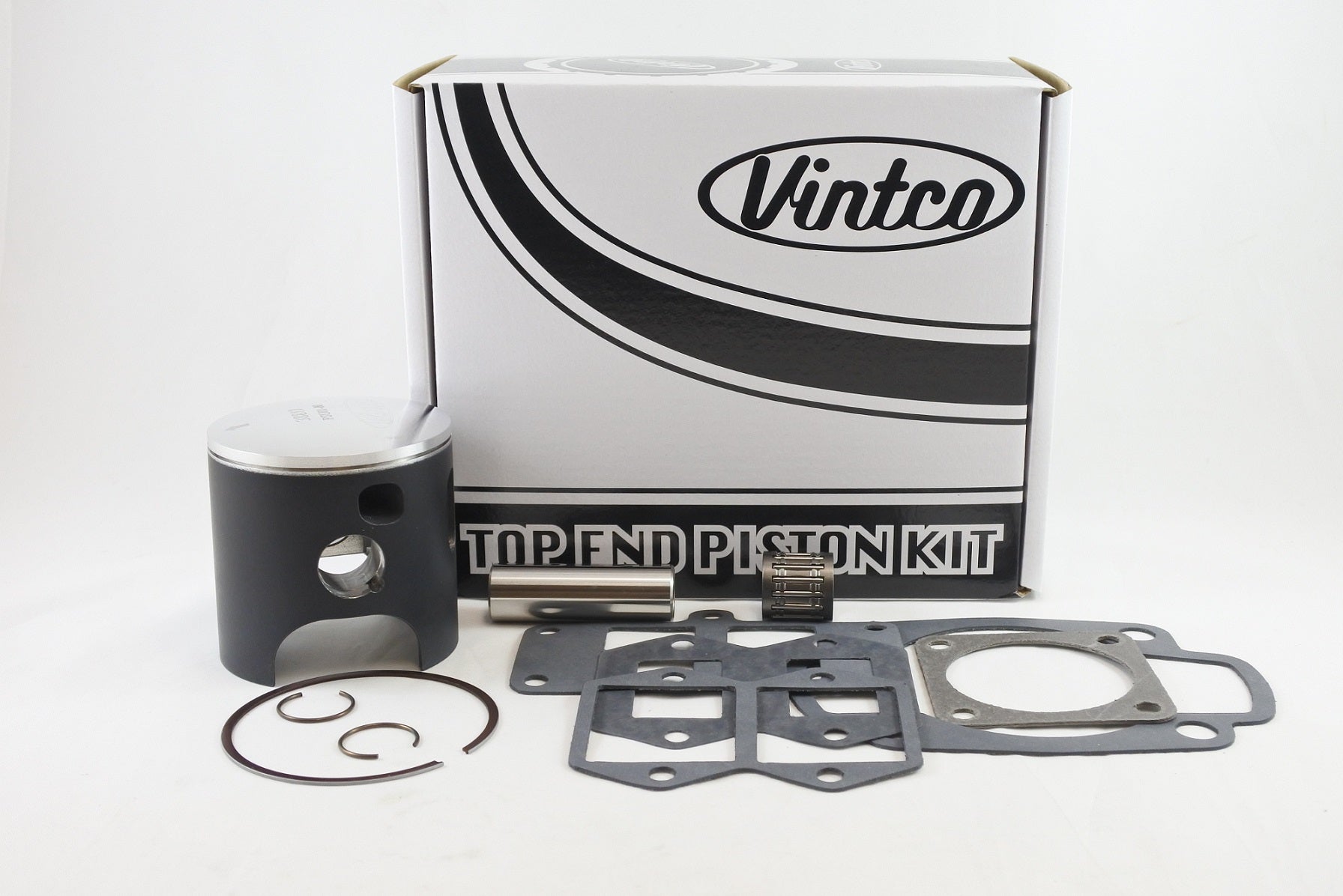

VintCo top end piston kit KTU01-00 for 1974 to 1977 Husqvarna CR250 and WR250 models is a complete rebuild set for a standard 69.5 mm bore. It includes a piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with base, intake and exhaust gaskets, providing the required components for a top-end rebuild in one package.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes base gasket
• Includes intake gaskets
• Includes exhaust gasket
• Manufactured using modern materials and production methods for OEM-equivalent fit and performance
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTU01-00
• Bore Size: 69.5 mm
• Bore Type: Standard
• Piston Diameter: 69.44 mm
• Piston Clearance: 0.06 mm
• Piston Construction: Forged
• Piston Coating: MoS2
• Piston Manufacture: Made in Germany

Cross-Reference OEM Part Numbers

• Piston: 16 10 376-01
• Base Gasket: 1 16 10 386-01
• Intake Gasket: 1 16 10 361-01
• Intake Gasket: 1 16 10 362-01
• Intake Gasket: 1 16 10 369-01
• Exhaust Gasket: 1 16 10 894-01
• Wrist Pin Bearing: 16-10-933-01

Vehicle Fitments

• 1974 Husqvarna CR250
• 1975 Husqvarna WR250
• 1975 Husqvarna CR250
• 1976 Husqvarna CR250
• 1976 Husqvarna WR250
• 1977 Husqvarna CR250
• 1977 Husqvarna WR250
