TOP END PISTON KIT 74-76 KAWASAKI H1 KH 500 61.5mm VINTCO KTK02-1.5

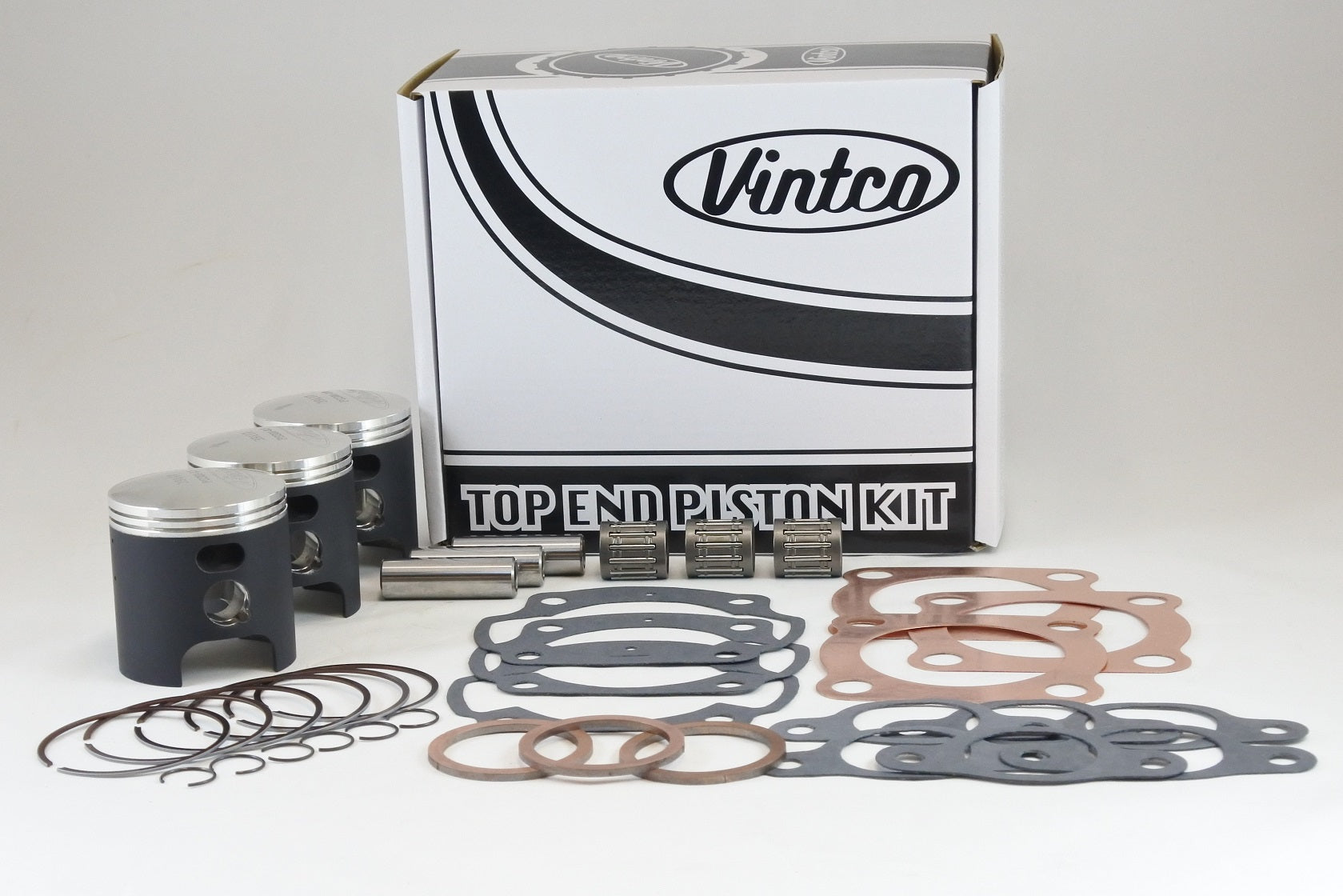

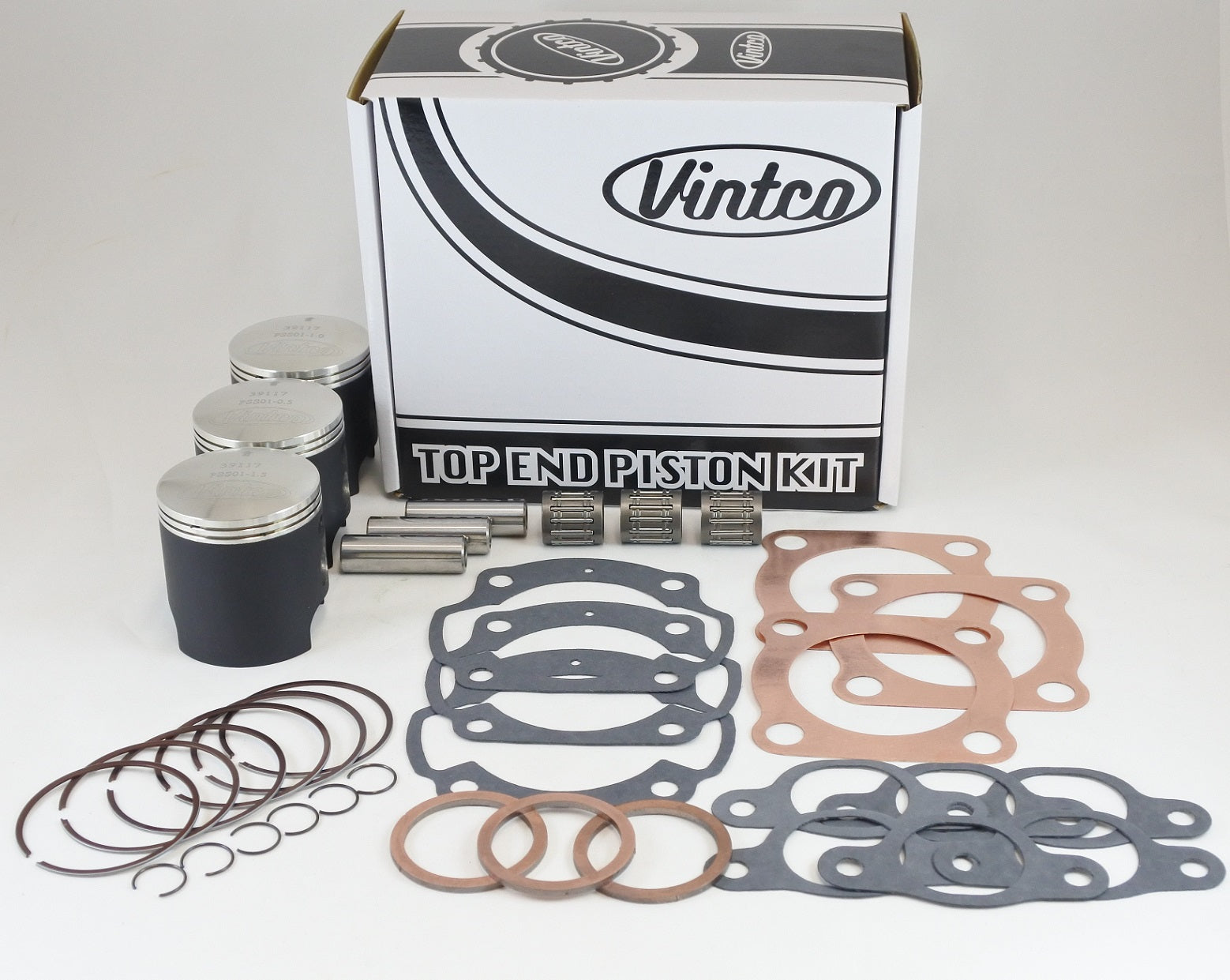

This VintCo top end piston kit is designed for rebuilding the complete three-cylinder top end on 1974-1975 Kawasaki H1-500 and 1976 Kawasaki KH500 models. The kit includes three piston kits with pistons, rings, pins and clips, together with three wrist pin bearings and a full top-end gasket set covering the head, base, intake and exhaust. It is supplied as a matched 61.5 mm nominal size kit with +1.5 mm oversize pistons for complete top-end service.

Features

• Complete top-end rebuild kit for the full three-cylinder engine
• Includes three piston kits
• Includes pistons, rings, pins and clips
• Includes three wrist pin bearings
• Includes a full top-end gasket kit
• Includes head, base, intake and exhaust gaskets
• Forged pistons
• MoS2-coated for running-in
• Manufactured using modern materials and processes for OEM-equivalent fitment and performance
• Supplied as a complete kit rather than individual items
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK02-1.5
• Item Category: Top End Piston Kits
• Nominal size: 61.5 mm
• Oversize: +1.5 mm
• Piston diameter: 61.43 mm
• Clearance: 0.07 mm
• Piston quantity: 3
• Head gasket quantity: 3
• Base gasket quantity: 3
• Intake gasket quantity: 6
• Exhaust gasket quantity: 3
• Wrist pin bearing quantity: 3
• Piston manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11004-048
• Base gasket: 11009-019
• Intake gasket: 16062-011
• Exhaust gasket: 11009-1840
• Wrist pin bearing: 93310-216E1-00

Vehicle Fitments

• 1974 Kawasaki H1-500
• 1975 Kawasaki H1-500
• 1976 Kawasaki KH500
