TOP END PISTON KIT 74-76 KAWASAKI H1 KH 500 61.0mm 1.0mm OVER VINTCO KTK02-1.0

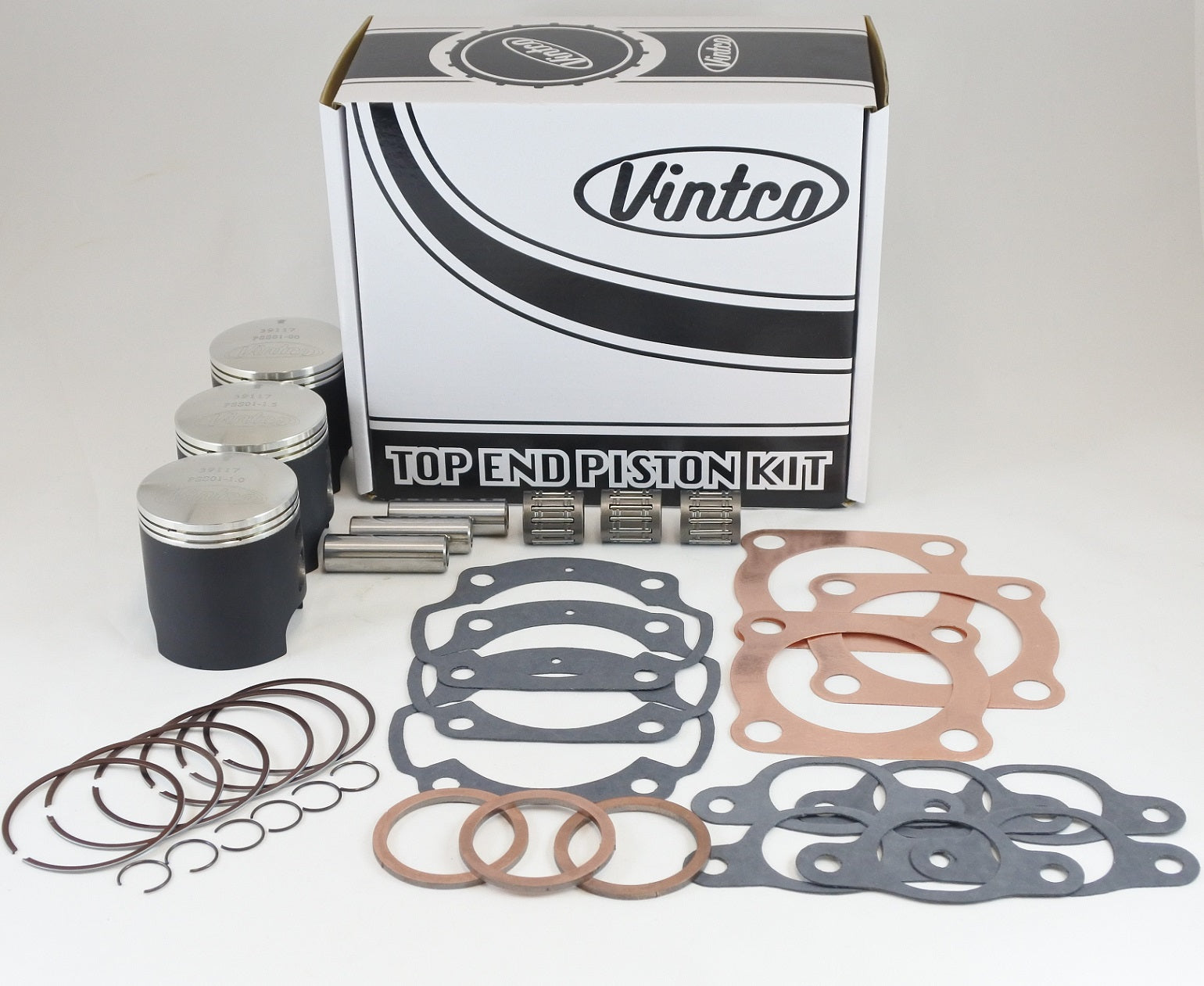

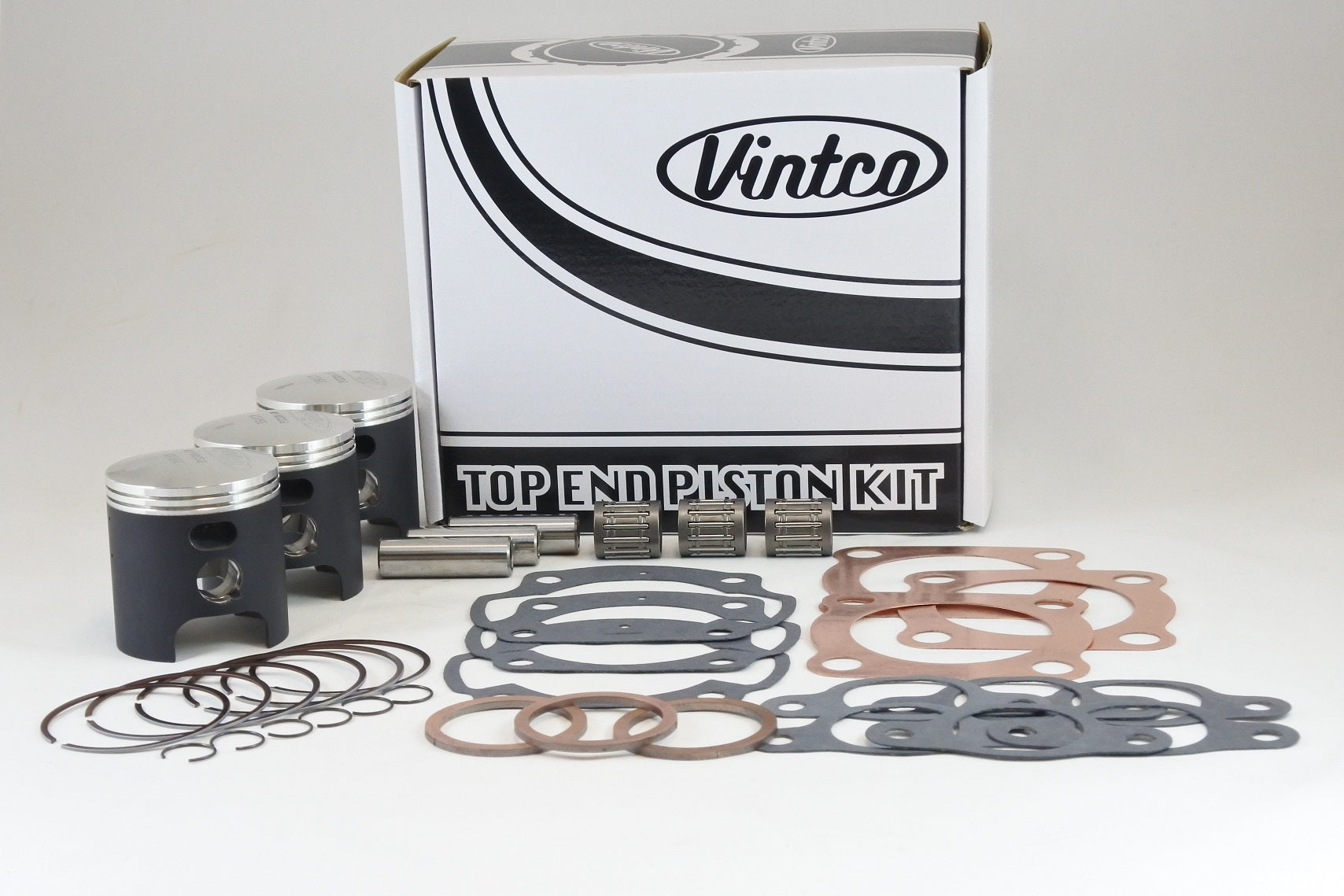

VintCo top end piston kit KTK02-1.0 is a complete rebuild set for the 1974-1975 Kawasaki H1-500 and 1976 Kawasaki KH500. This 61.0 mm piston kit in +1.0 mm oversize includes three piston kits with pistons, rings, pins and clips, three top-end wrist pin bearings, and a full top-end gasket set covering the head, base, intake and exhaust. Components are produced with modern materials and manufacturing techniques for OEM-equivalent or improved fitment and performance.

Features

• Complete top-end rebuild kit
• Includes three piston kits with pistons, rings, pins and clips
• Includes top-end bearings and a full top-end gasket set
• Covers head, base, intake and exhaust sealing points for the entire top end
• Piston coating assists running-in
• Designed for OEM-equivalent or improved fitment and performance
• Kit pricing is 10% lower than purchasing the listed items individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK02-1.0
• Product type: Top End Piston Kit
• Piston size: 61.0 mm
• Oversize: +1.0 mm
• Pistons included: 3
• Piston diameter: 60.93 mm
• Piston clearance: 0.07 mm
• Head gaskets included: 3
• Base gaskets included: 3
• Intake gaskets included: 6
• Exhaust gaskets included: 3
• Wrist pin bearings included: 3
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MoS2

Cross-Reference OEM Part Numbers

• Piston: 13027-031
• Head gasket: 11004-048
• Base gasket: 11009-019
• Intake gasket: 16062-011
• Exhaust gasket: 11009-1840
• Wrist pin bearing: 93310-216E1-00

Vehicle Fitments

• 1974 Kawasaki H1-500
• 1975 Kawasaki H1-500
• 1976 Kawasaki KH500
