Top End Piston Kit 74-76 Kawasaki H1 Kh 500 60.5mm 0.5mm Over Vintco KTK02-0.5

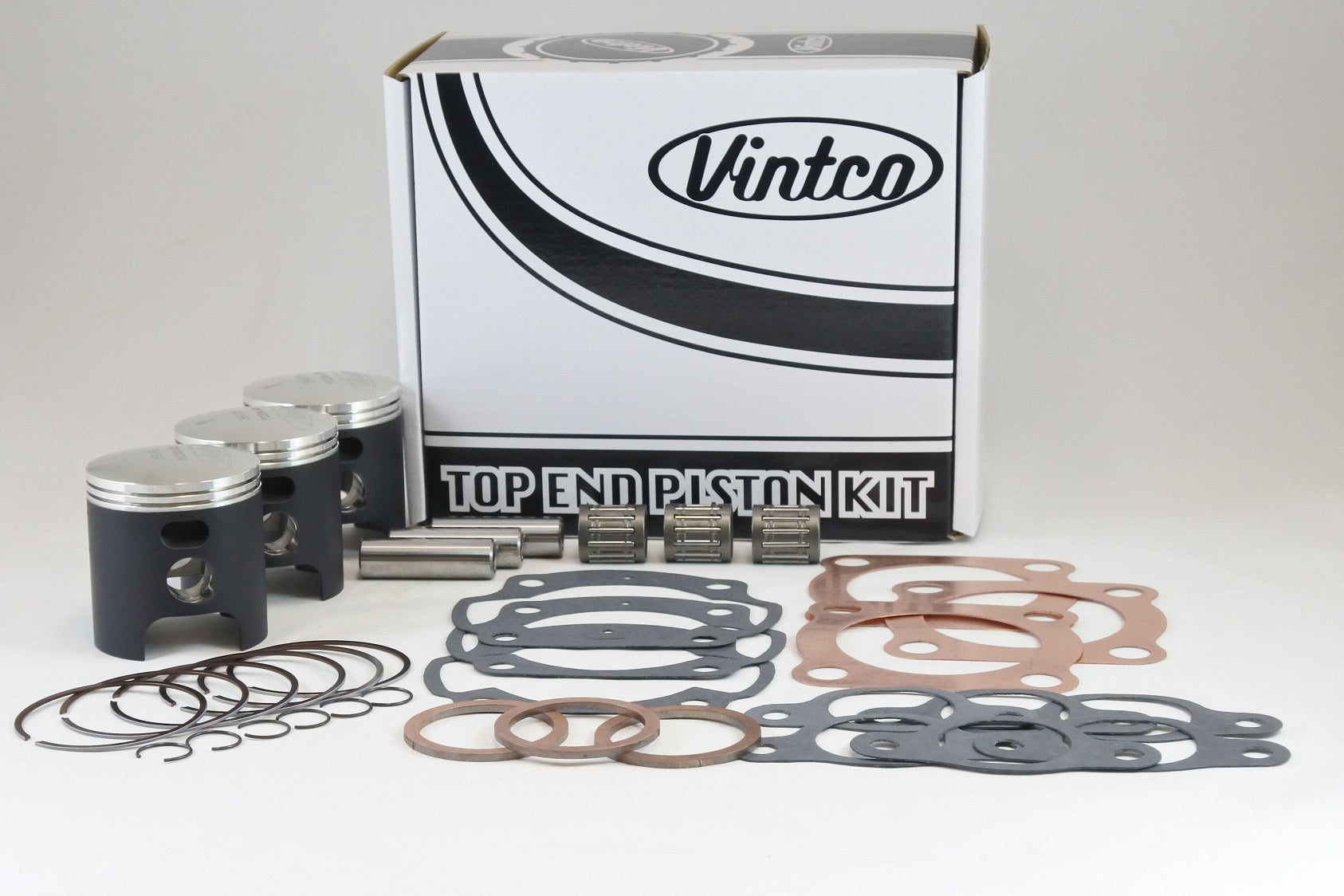

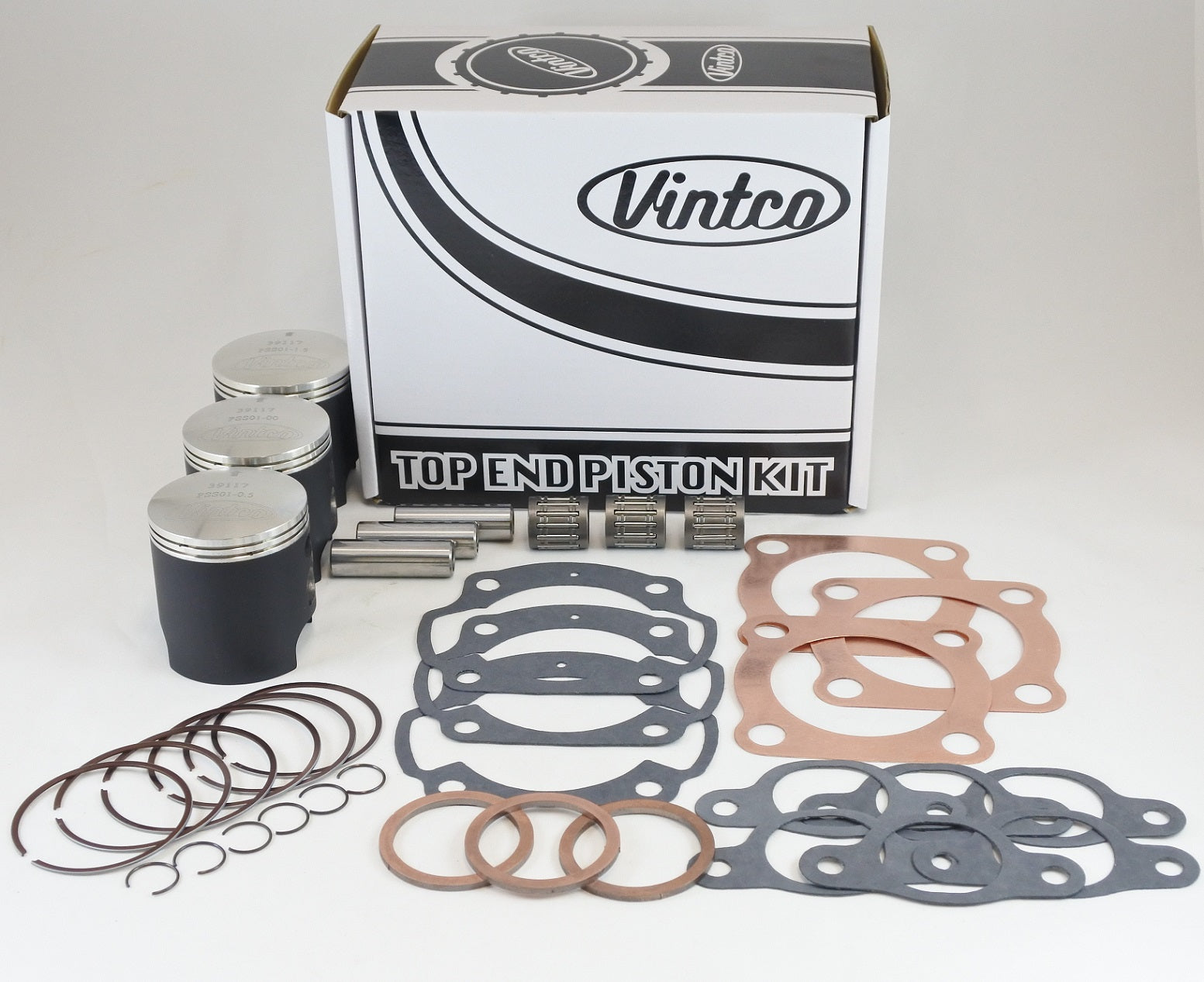

VintCo top end piston kit KTK02-0.5 is a complete rebuild kit for Kawasaki H1-500 and KH500 models, supplied with three piston kits, top end bearings and a full top-end gasket set for the entire top end. It is manufactured using modern materials and manufacturing techniques for OEM-equivalent or better fitment and performance, and is supplied in the 60.5 mm, +0.5 mm oversize.

Features

• Complete top end rebuild kit
• Includes three piston kits with pistons, rings, pins and clips
• Includes top end bearings
• Includes a full top-end gasket kit for the entire top end
• Includes head gaskets, base gaskets, intake gaskets and exhaust gaskets
• MoS2-coated pistons for running-in
• Manufactured using modern materials and manufacturing techniques for OEM-equivalent or better fitment and performance
• Kit price includes a 10% saving compared with buying the parts individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK02-0.5
• Product type: Top End Piston Kit
• Size designation: 60.5 mm
• Oversize: +0.5 mm
• Piston measurement: 60.43 mm
• Piston clearance: 0.07 mm
• Pistons included: 3
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MoS2
• Head gaskets included: 3
• Base gaskets included: 3
• Intake gaskets included: 6
• Exhaust gaskets included: 3
• Wrist pin bearings included: 3

Cross-Reference OEM Part Numbers

• Pistons: 13029-031
• Head gaskets: 11004-048
• Base gaskets: 11009-019
• Intake gaskets: 16062-011
• Exhaust gaskets: 11009-1840
• Wrist pin bearings: 93310-216E1-00

Vehicle Fitments

• 1974 Kawasaki H1-500
• 1975 Kawasaki H1-500
• 1976 Kawasaki KH500
