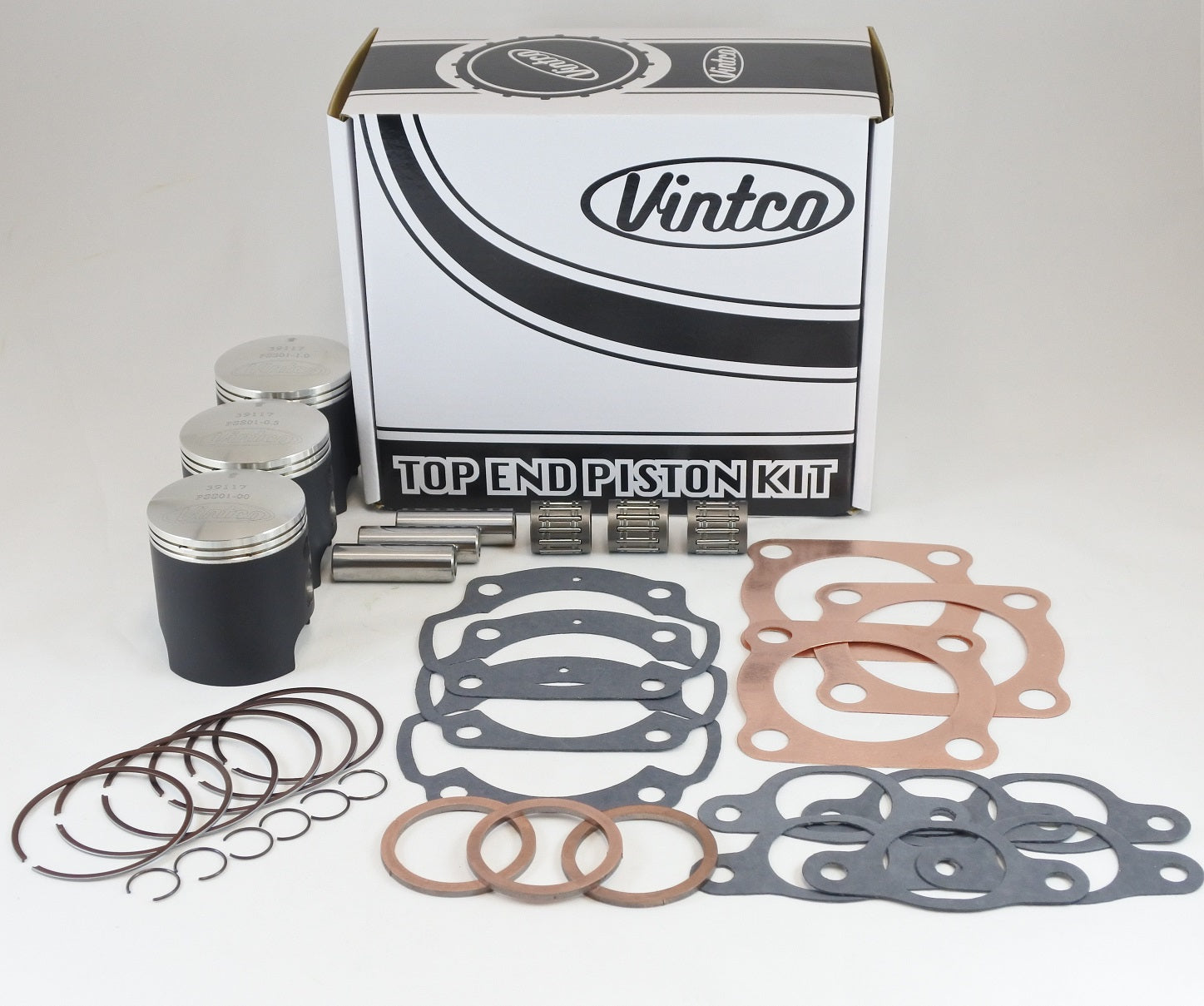

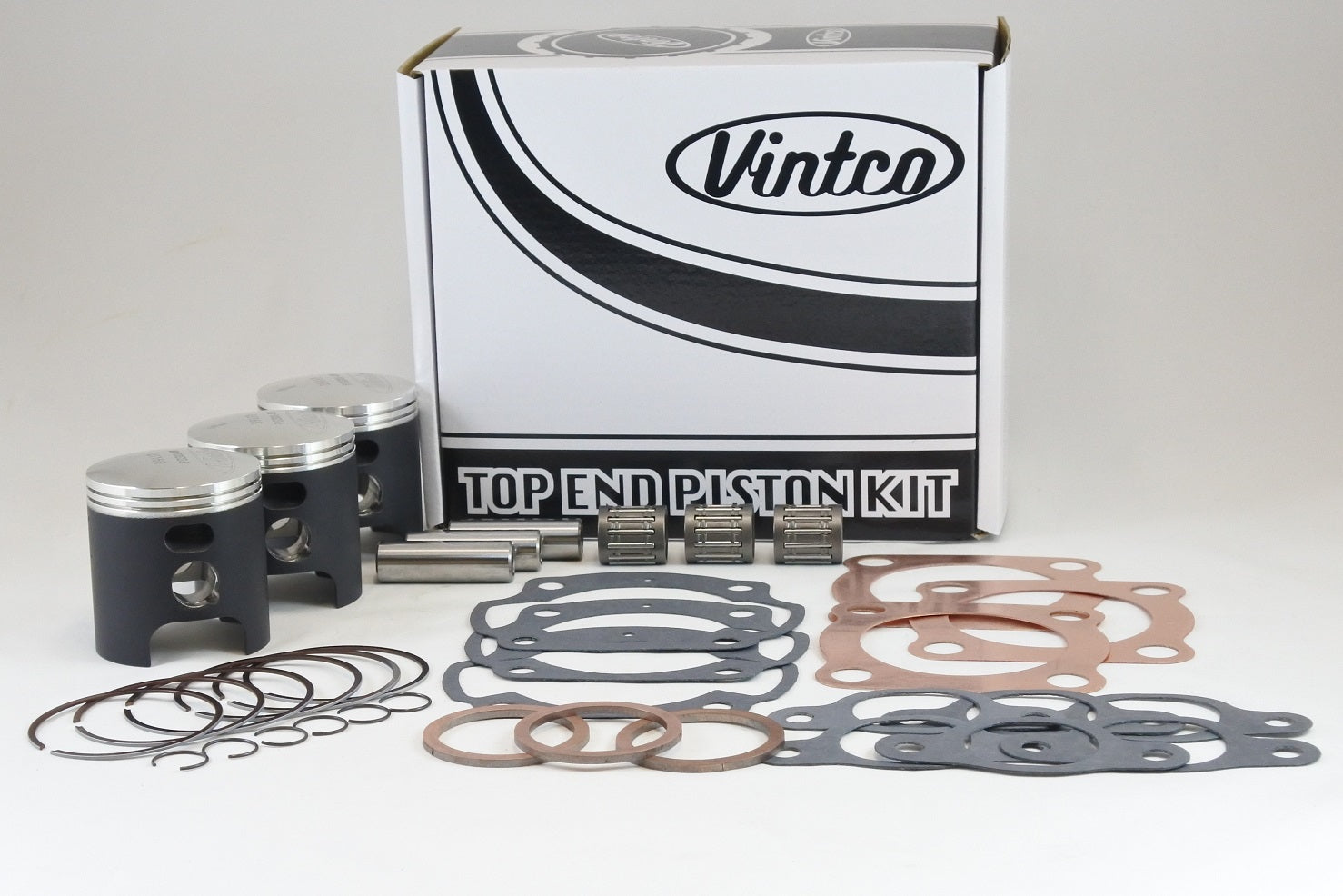

TOP END PISTON KIT 74-76 KAWASAKI H1 KH 500 60.0mm STANDARD VINTCO KTK02-00

This VintCo top end piston kit is a standard-bore rebuild set for 1974-1975 Kawasaki H1-500 and 1976 Kawasaki KH500 models. It includes three complete piston kits with pistons, rings, pins and clips, three wrist pin bearings, and a full top-end gasket set covering the complete top end with head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods for OEM-equivalent or better fitment and performance, and the complete kit is priced 10% lower than purchasing the parts individually.

Features

• Complete top-end rebuild kit
• Includes three piston kits with pistons, rings, pins and clips
• Includes three wrist pin bearings
• Includes a full top-end gasket kit
• Covers head, base, intake and exhaust gasket replacement
• OEM cross-reference numbers provided for exact fitment
• Additional size options available
• Kit pricing is 10% lower than purchasing the parts individually

Specifications

• VintCo Part Number: KTK02-00
• Bore size: 60.0 mm
• Bore type: Standard
• Piston diameter: 59.93 mm
• Piston clearance: 0.07 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston manufacture: Germany

Cross-Reference OEM Part Numbers

• 3 pistons: 13001-031
• 3 head gaskets: 11004-048
• 3 base gaskets: 11009-019
• 6 intake gaskets: 16062-011
• 3 exhaust gaskets: 11009-1840
• 3 wrist pin bearings: 93310-216E1-00

Vehicle Fitments

• 1974 Kawasaki H1-500
• 1975 Kawasaki H1-500
• 1976 Kawasaki KH500
