Top End Piston Kit 74-76 Honda Mt 125 Standard Vintco KTH11-00
  • Top End Piston Kit 74-76 Honda Mt 125 Standard Vintco KTH11-00
  • Top End Piston Kit 74-76 Honda Mt 125 Standard Vintco KTH11-00
  • Top End Piston Kit 74-76 Honda Mt 125 Standard Vintco KTH11-00
  • Top End Piston Kit 74-76 Honda Mt 125 Standard Vintco KTH11-00
Top End Piston Kit 74-76 Honda Mt 125 Standard Vintco KTH11-00

Top End Piston Kit 74-76 Honda Mt 125 Standard Vintco KTH11-00

£164.31 GBP
Taxes included. Shipping calculated at checkout.

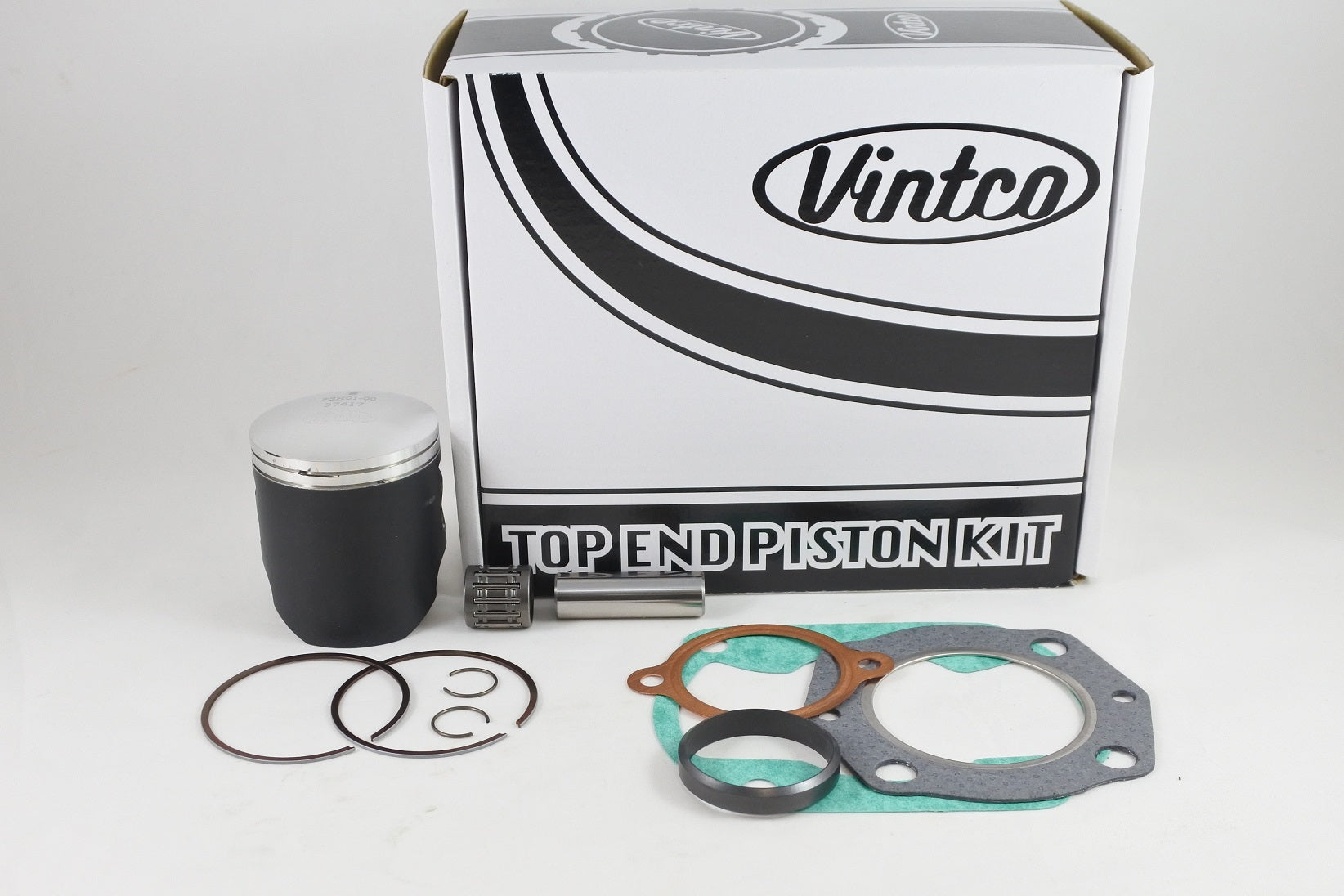

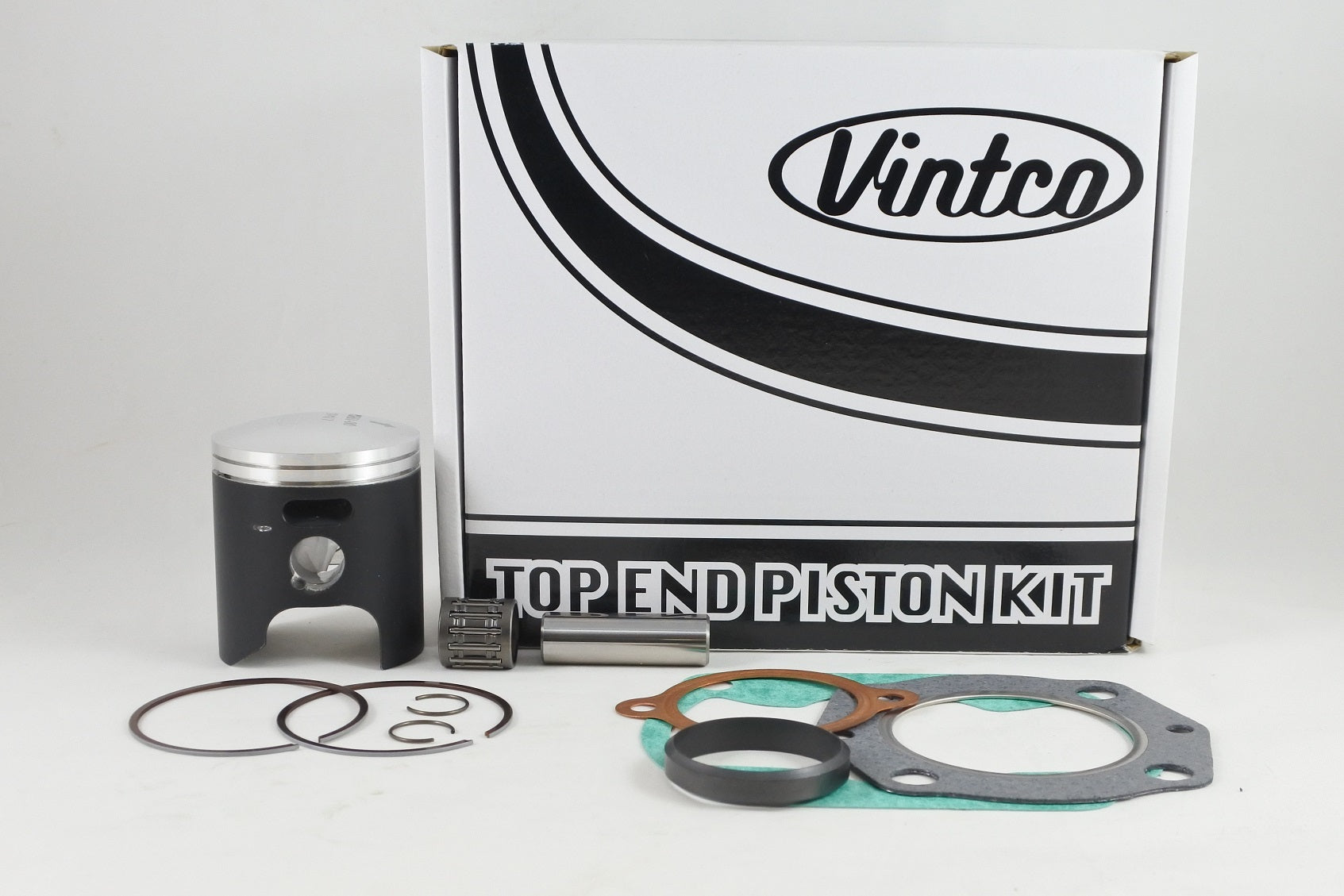

This standard top end piston kit is for 1974-1976 Honda MT125 models and includes a piston, head gasket, base gasket, exhaust gaskets and wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the individual items separately.

Features

  • Complete top end kit for piston service
  • Includes piston, head gasket, base gasket, exhaust gaskets and wrist pin bearing
  • Suitable for standard bore applications

Specifications

  • VintCo Part Number: KTH11-00
  • Piston construction: Forged
  • Piston coating: MOS2
  • Piston origin: Germany

Cross-Reference OEM Part Numbers

  • Piston: 13101-360-700
  • Piston: 13101-400-020
  • Head gasket: 12251-361-405
  • Base gasket: 12191-373-306
  • Exhaust gasket: 18359-360-000
  • Exhaust gasket: 18352-361-000
  • Wrist pin bearing: 91007-444-004

Vehicle Fitments

  • 1974 Honda MT125
  • 1975 Honda MT125
  • 1976 Honda MT125
