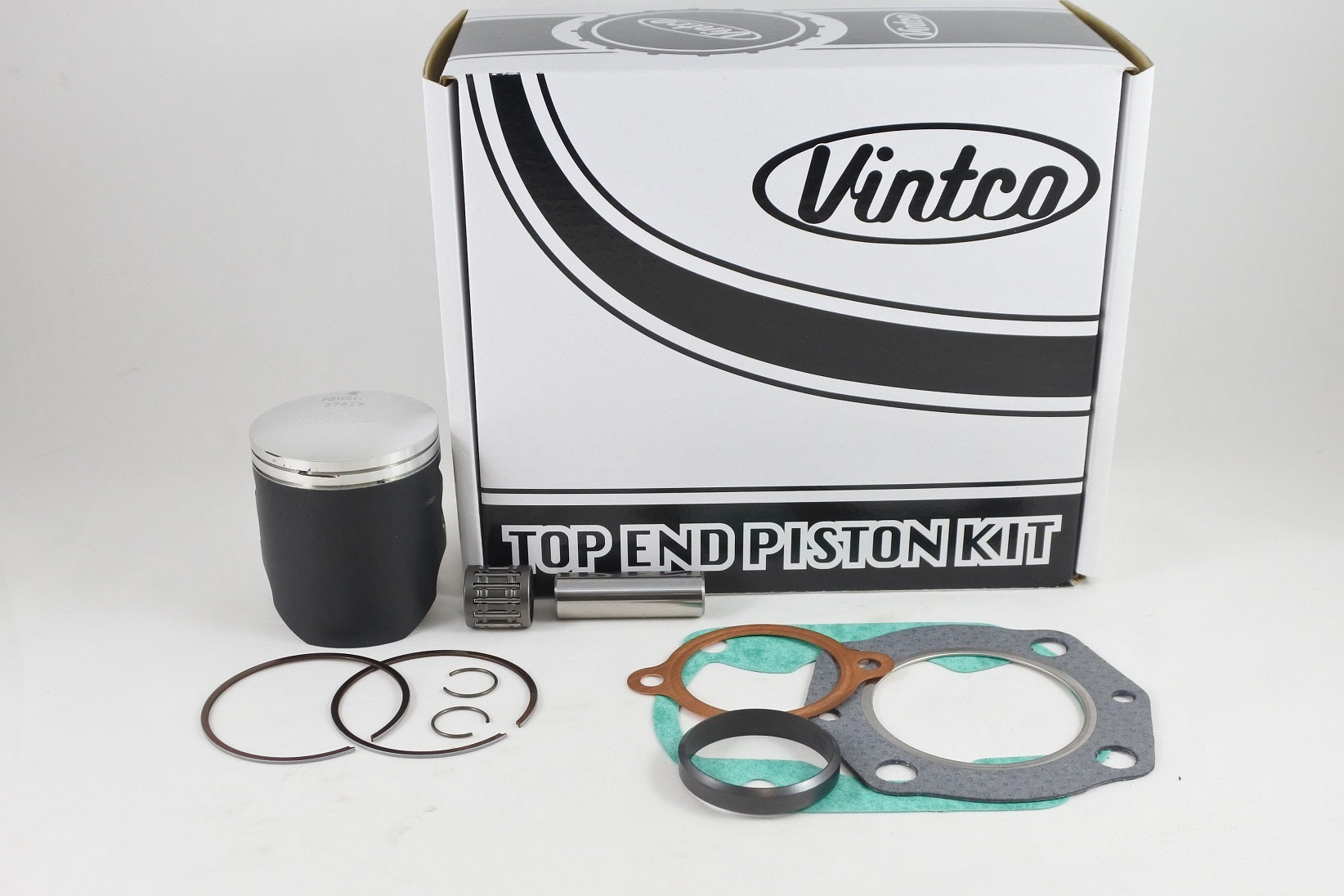

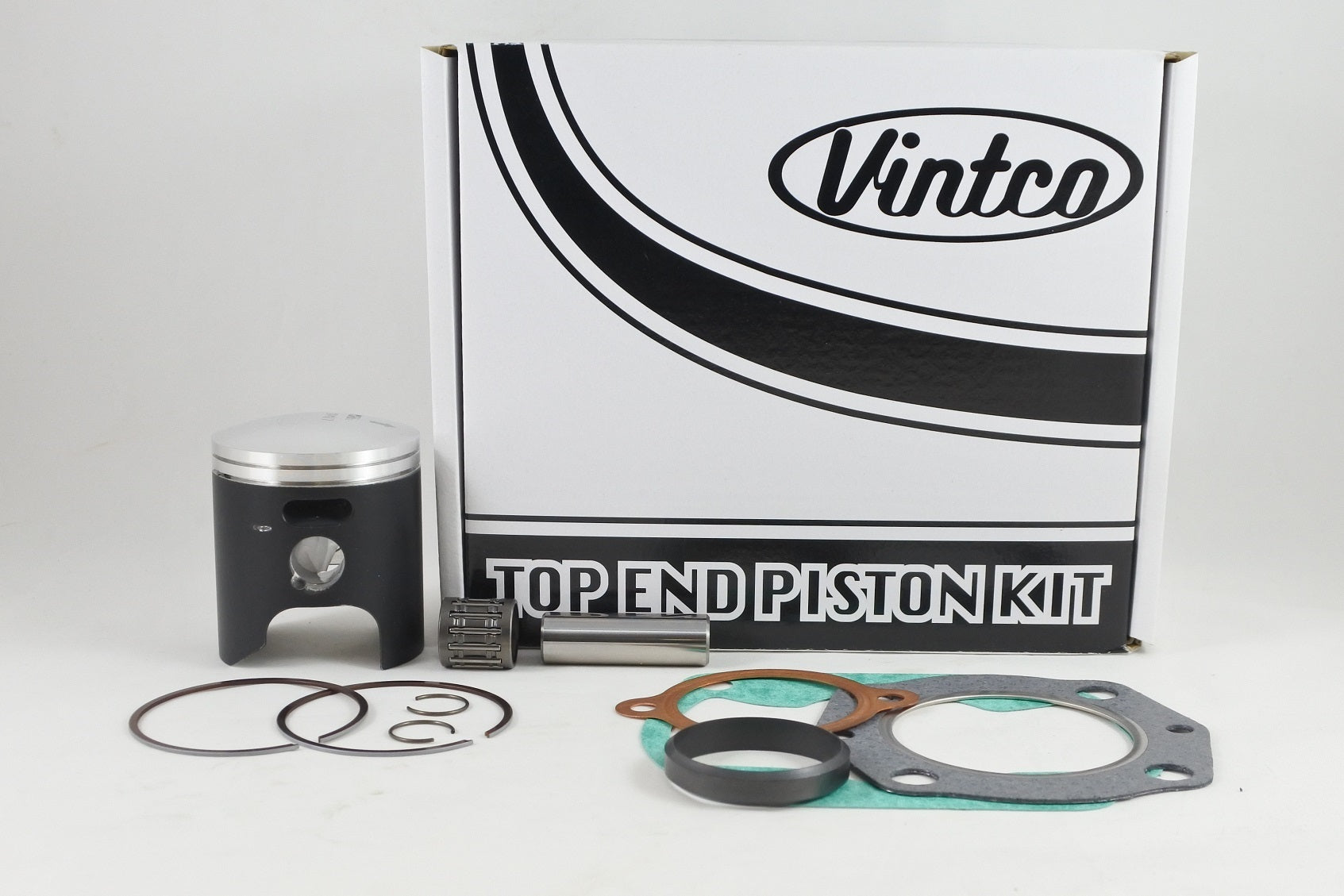

Top End Piston Kit 74-76 Honda Mt 125 +1.5mm Over Vintco KTH11-1.5

This top end piston kit is designed for 1974–1976 Honda MT125 models and includes a forged piston made in Germany, along with the head gasket, base gasket, exhaust gasket and wrist pin bearing required for a top end rebuild. Kit price includes a 10% discount over the individual items.

Features

• Complete top end piston kit
• Forged piston for top end rebuild work
• MOS2 coating for break-in
• Includes head gasket
• Includes base gasket
• Includes exhaust gasket
• Includes wrist pin bearing
• Made in Germany

Specifications

• VintCo Part Number: KTH11-1.5
• Oversize designation: +1.5 mm over
• Piston size listed in kit contents: +1.0 mm
• Piston diameter: 57.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head Gasket: 12251-361-405
• Base Gasket: 12191-373-306
• Exhaust Gasket: 18359-360-000
• Exhaust Gasket: 18352-361-000
• Wrist Pin Bearing: 91007-444-004

Vehicle Fitments

• 1974 Honda MT125
• 1975 Honda MT125
• 1976 Honda MT125
