TOP END PISTON KIT 74-76 HONDA MT 125 +1.0mm OVER VINTCO KTH11-1.0

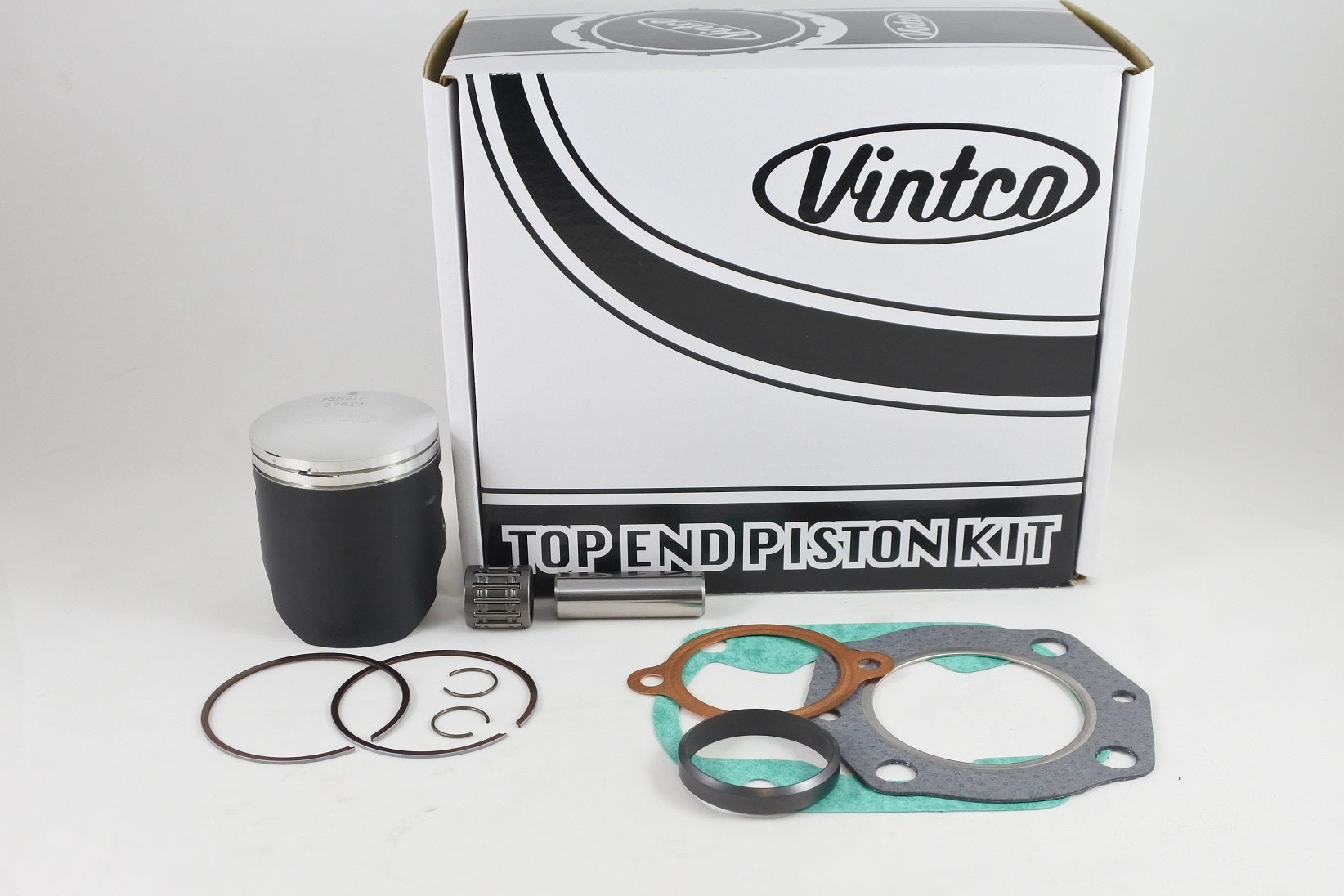

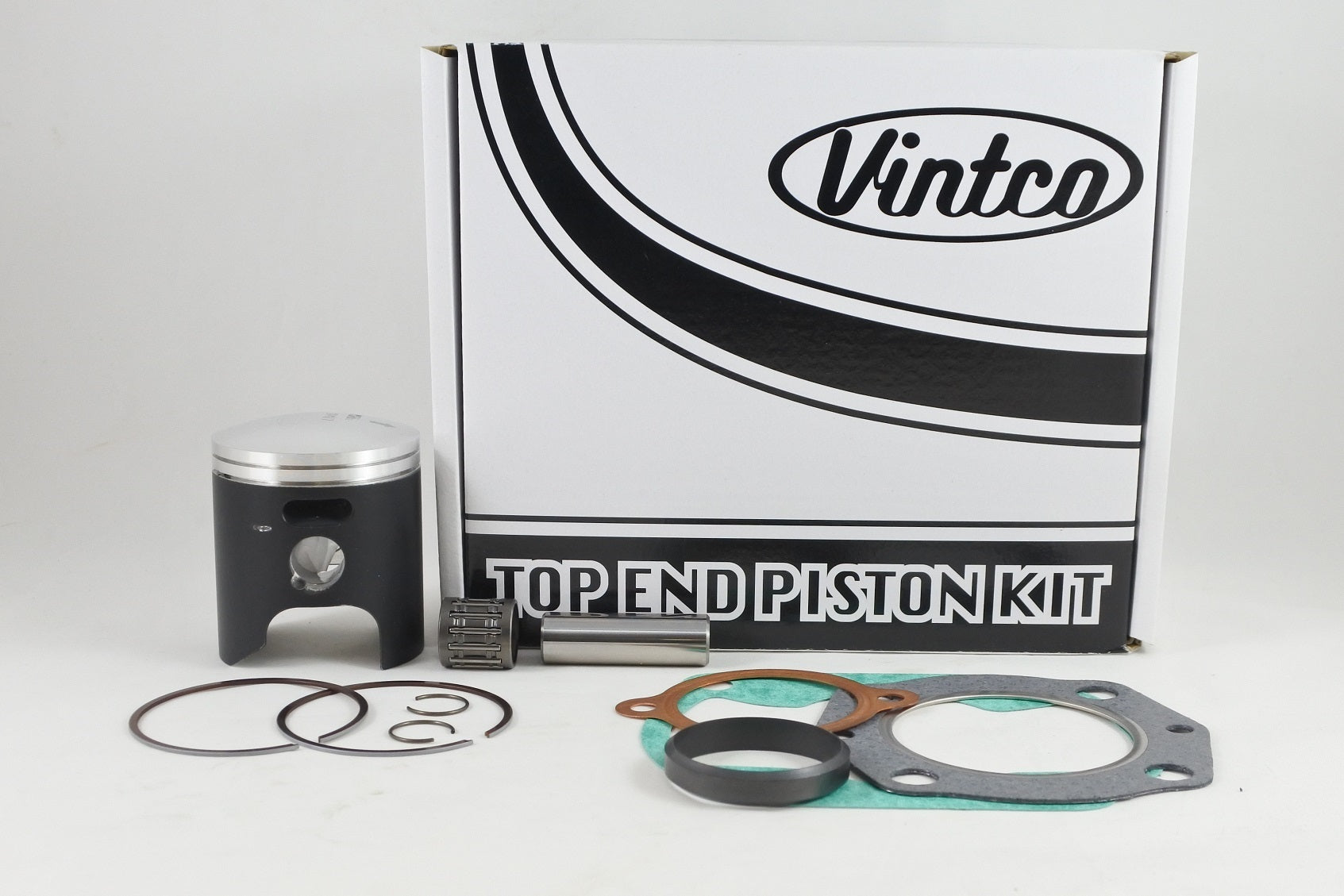

This VintCo top end piston kit is designed for 1974-1976 Honda MT125 models and includes a forged piston manufactured in Germany with an MOS2 break-in coating, together with the required head gasket, base gasket, exhaust gasket and wrist pin bearing. The kit is supplied in a +1.0 mm oversize and the kit price includes a 10% discount compared with purchasing the individual items separately.

Features

• Complete top end kit for Honda MT125 models
• Includes forged piston with MOS2 coating for break-in
• Includes head gasket
• Includes base gasket
• Includes exhaust gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTH11-1.0
• Piston oversize: +1.0 mm
• Piston diameter: 56.94 mm
• Clearance: 0.06 mm
• Piston manufactured in Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-361-405
• Base gasket: 12191-373-306
• Exhaust gasket: 18359-360-000
• Exhaust gasket: 18352-361-000
• Wrist pin bearing: 91007-444-004

Vehicle Fitments

• 1974 Honda MT125
• 1975 Honda MT125
• 1976 Honda MT125
