TOP END PISTON KIT 73-75 YAMAHA RD 350 65.5mm 1.5mm OVER VINTCO KTY13-1.5

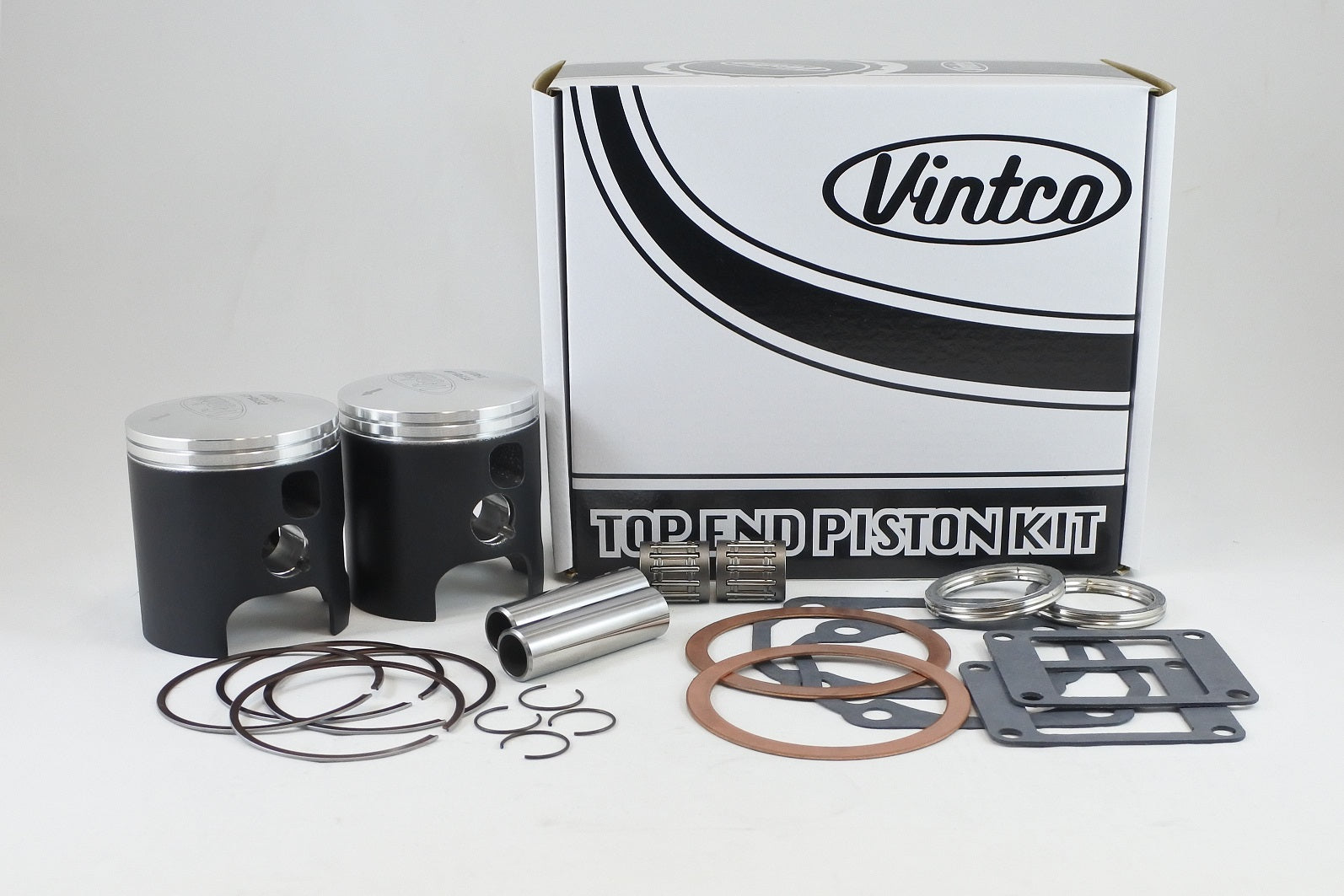

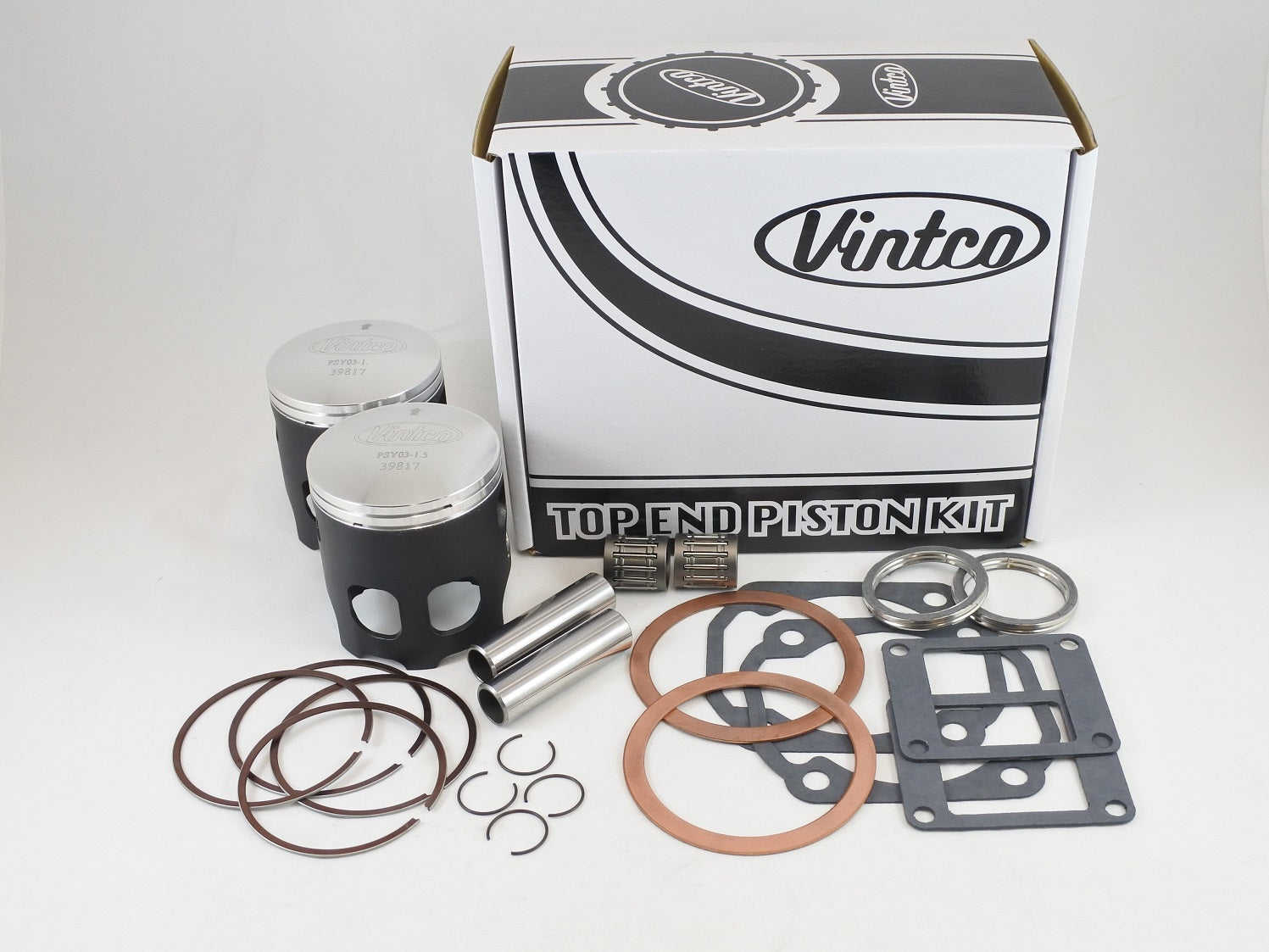

This VintCo top end piston kit is for 1973–1975 Yamaha RD350 models and is supplied in a 65.5 mm, +1.5 mm oversize configuration. It is a complete top end rebuild kit including two piston kits, top end bearings and a full top-end gasket set for the full assembly. The listed offer price is $340.95, and the kit is priced at 10% less than purchasing the included components individually. Additional size options are also available.

Features

• Complete top end rebuild kit for Yamaha RD350 models
• Includes two piston kits
• Each piston kit includes piston, rings, pin and clips
• Includes top end bearings
• Includes full top-end gasket kit
• Includes head gaskets
• Includes base gaskets
• Includes intake gaskets
• Includes exhaust gaskets
• Intended for full top end rebuild work
• Manufactured using modern materials and production methods for OEM-equivalent fit and performance
• Kit pricing includes a 10% saving compared with buying the components individually

Specifications

• VintCo Part Number: KTY13-1.5
• Product Type: Top End Piston Kit
• Nominal piston size: 65.5 mm
• Oversize: +1.5 mm
• Piston measurement: 65.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany
• Included piston kit quantity: 2

Cross-Reference OEM Part Numbers

• Head gasket: 278-11181-01-00
• Base gasket: 278-11351-11-00
• Intake gasket: 87A-13621-00-00
• Exhaust gasket: 3PA-14613-10-00
• Wrist pin bearing: 92046-1038

Vehicle Fitments

• 1973 Yamaha RD350
• 1974 Yamaha RD350
• 1975 Yamaha RD350
