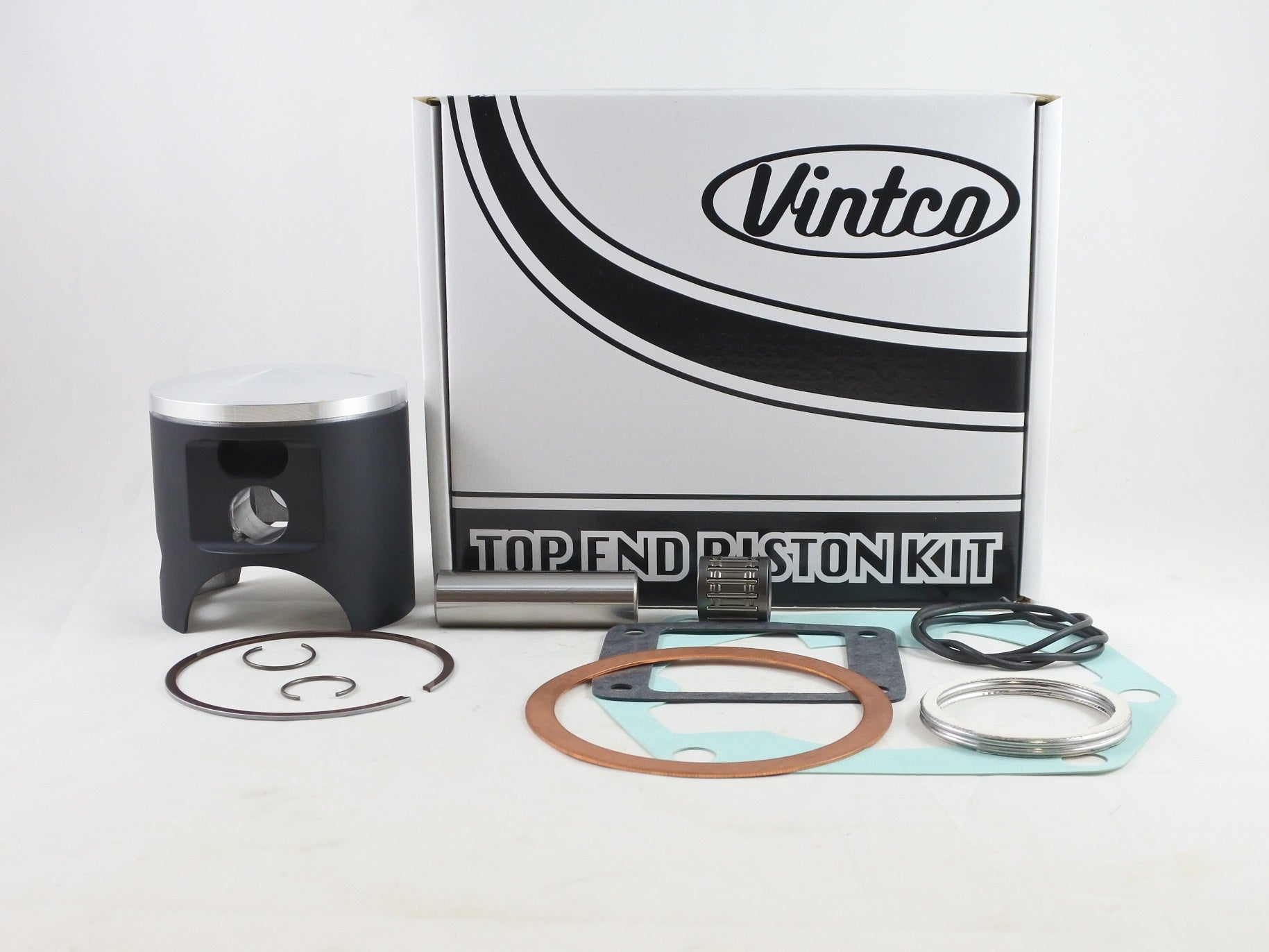

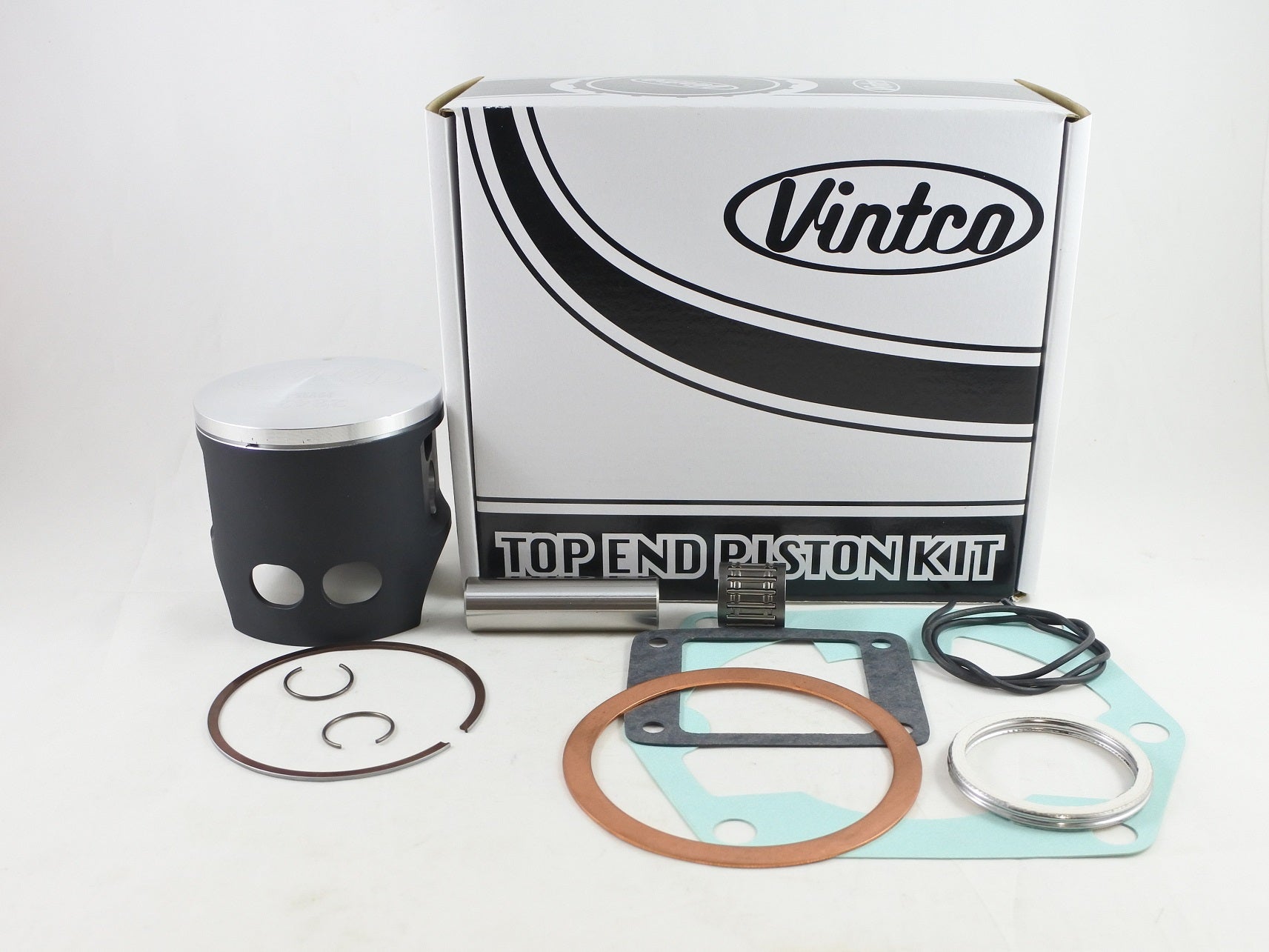

Top End Piston Kit 73-74 Yamaha MX 360 81.5mm 1.5mm Over Vintco KTY72-1.5

VintCo top end piston kit KTY72-1.5 is a complete rebuild kit for 1973-1974 Yamaha MX360 models, supplied in 81.5 mm (+1.5 mm oversize). The kit includes a piston assembly with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance. Purchasing the kit saves 10% compared with buying the parts individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Supplied with OEM cross-reference part numbers for exact fitment
• Intended for Yamaha MX360 top-end rebuilds
• Purchasing as a kit saves 10% compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTY72-1.5
• Product type: Top End Piston Kit
• Piston size: 81.5 mm
• Oversize: +1.5 mm
• Piston measurement: 81.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 90430-83065-00
• Cylinder Base Gasket: 365-11351-09-00
• Intake Gasket: 363-13621-01-00
• Exhaust Pipe Gasket: 214-14613-09-00
• Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

• 1973 Yamaha MX360
• 1974 Yamaha MX360
