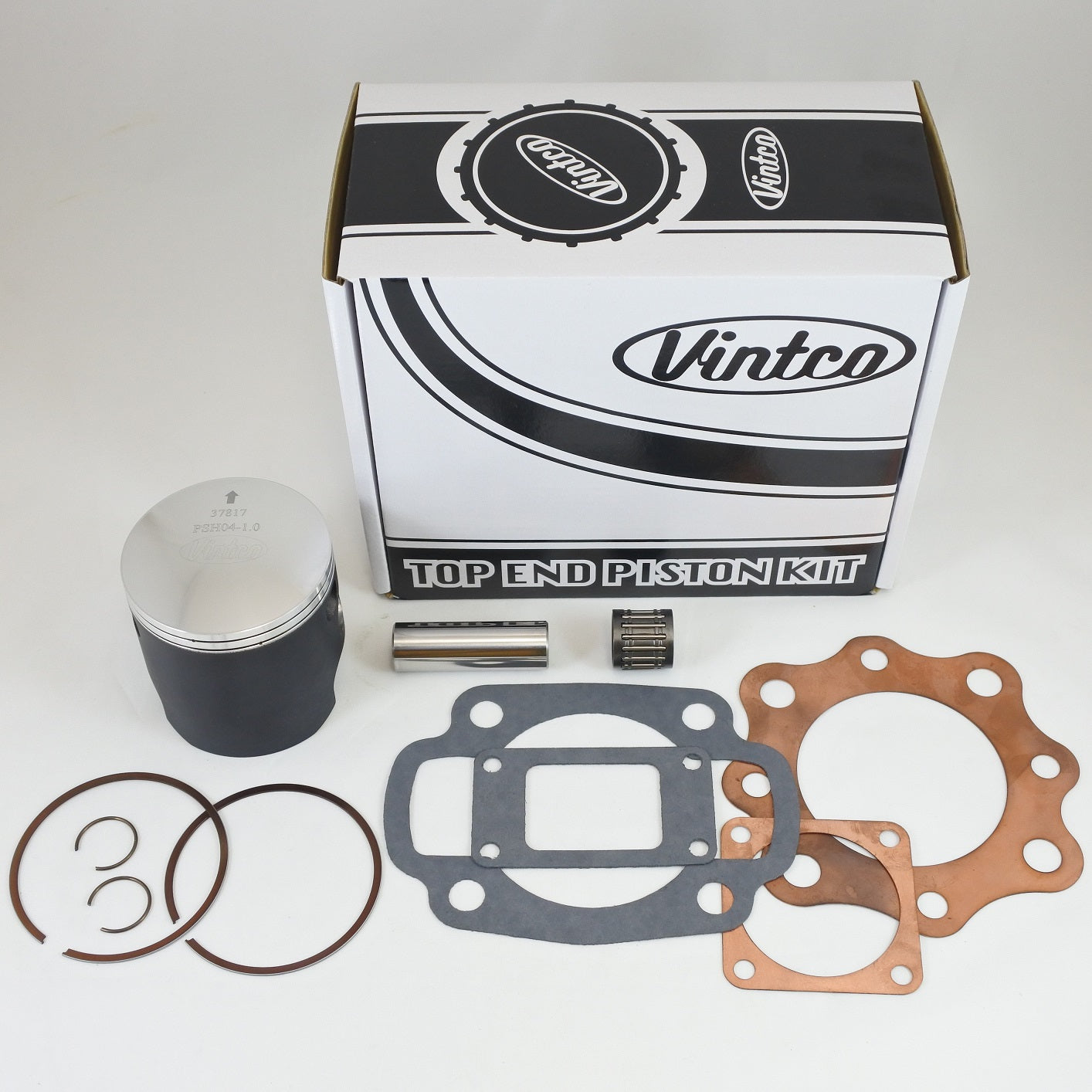

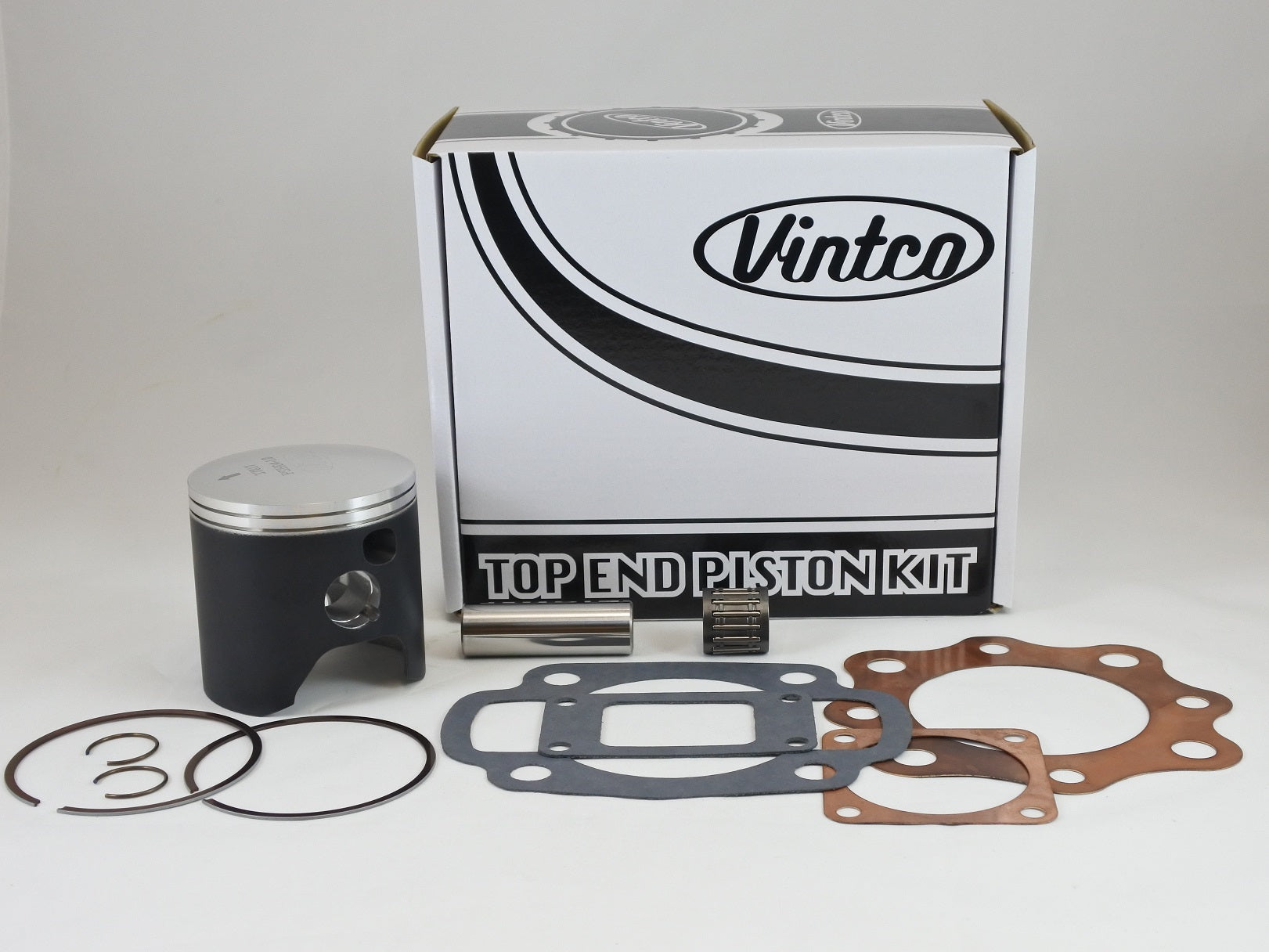

TOP END PISTON KIT 73-74 HONDA CR 250 71.0mm 1.0mm OVER VINTCO KTH06-1.0

This VintCo top end piston kit is for 1973-1974 Honda CR250 models and is intended for top-end rebuild work. It includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket kit with head, base, intake and exhaust gaskets. The kit uses modern materials and manufacturing methods for OEM-equivalent fitment and is supplied as a combined package at 10% less than purchasing the included items individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Designed for OEM-equivalent fitment and performance
• Other size options are available

Specifications

• VintCo Part Number: KTH06-1.0
• Piston size: 71.0 mm
• Oversize: +1.0 mm over
• Piston reference size: 70.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Piston: 13105-357-000
• Head Gasket: 12251-357-020
• Base Gasket: 12191-357-306
• Intake Gasket: 16229-357-010
• Exhaust Gasket: 18359-357-000
• Wrist Pin Bearing: 91015-357-003

Vehicle Fitments

• 1973 Honda CR250
• 1974 Honda CR250
