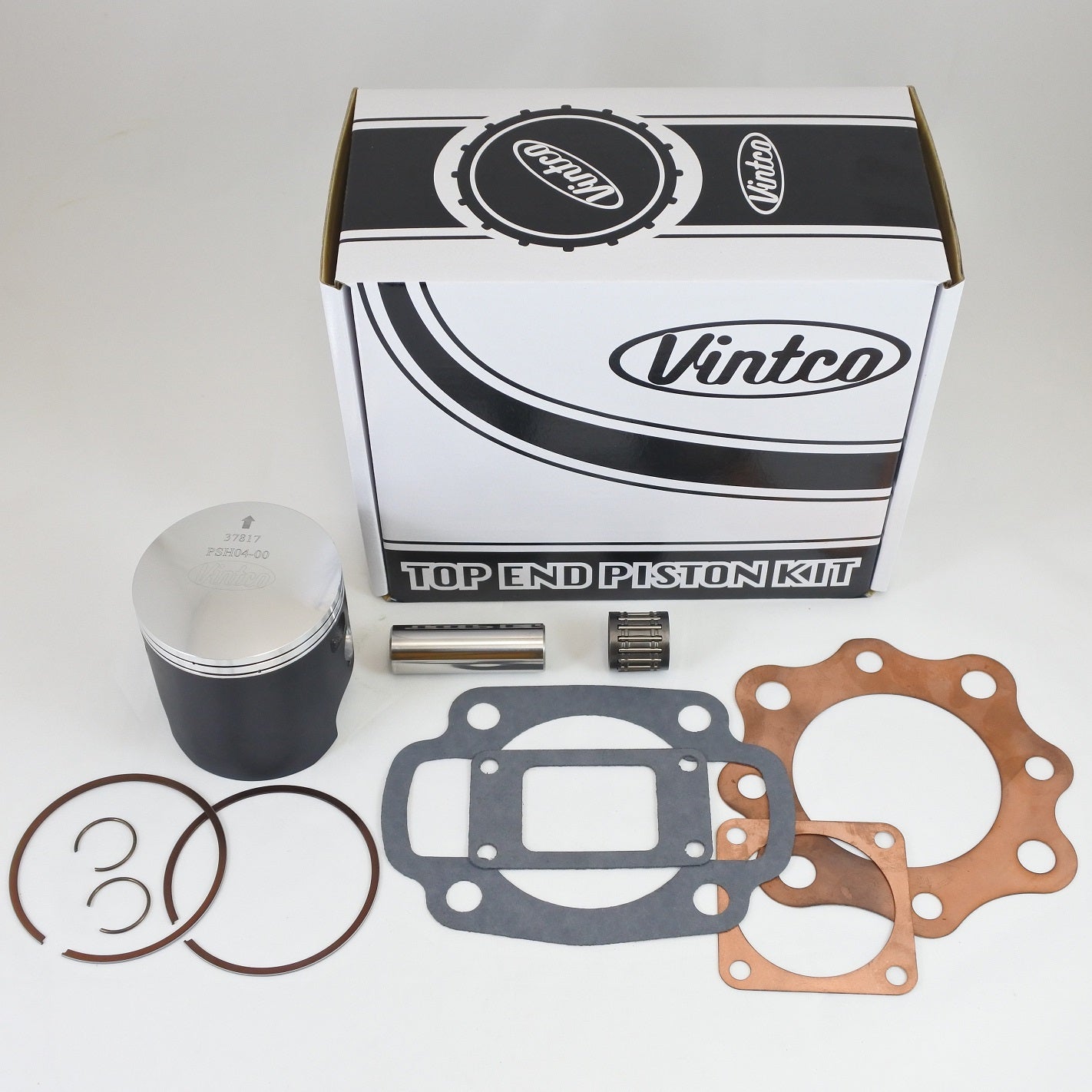

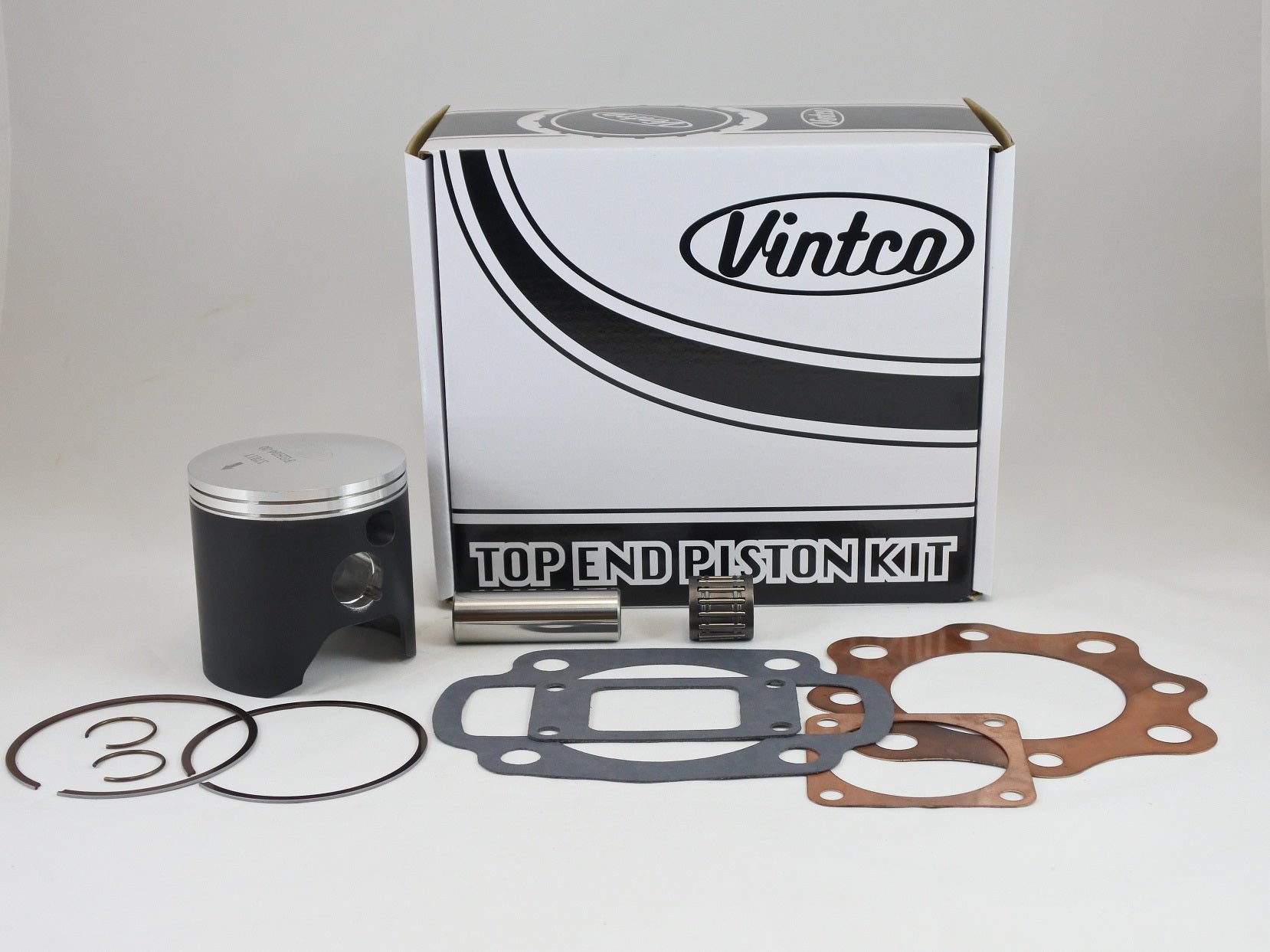

TOP END PISTON KIT 73-74 HONDA CR 250 70.0mm STANDARD VINTCO KTH06-00

VintCo KTH06-00 is a top end piston kit for 1973-1974 Honda CR250 models with a standard 70.0 mm bore. It is supplied for top-end rebuilds and includes a piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit comprising head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods for OEM-equivalent fit and performance, and the kit price is 10% lower than purchasing the included parts individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Intended for 1973-1974 Honda CR250 models
• Manufactured using modern materials and manufacturing methods for OEM-equivalent fit and performance
• Kit price includes a 10% saving compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH06-00
• Standard bore size: 70.0 mm
• Piston diameter: 69.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13100-357-040
• Head gasket: 12251-357-020
• Base gasket: 12191-357-306
• Intake gasket: 16229-357-010
• Exhaust gasket: 18359-357-000
• Wrist pin bearing: 91015-357-003

Vehicle Fitments

• 1973 Honda CR250
• 1974 Honda CR250
