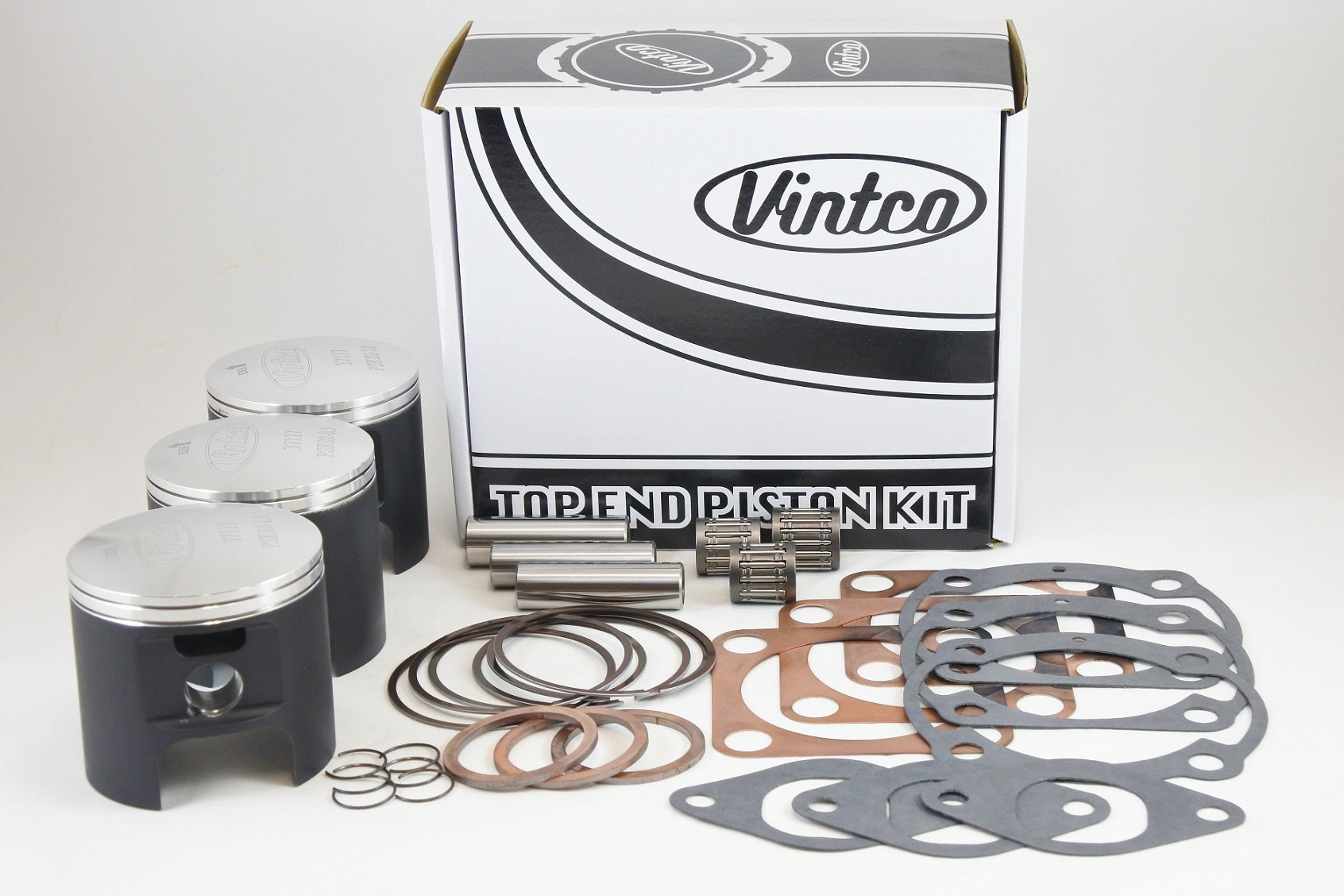

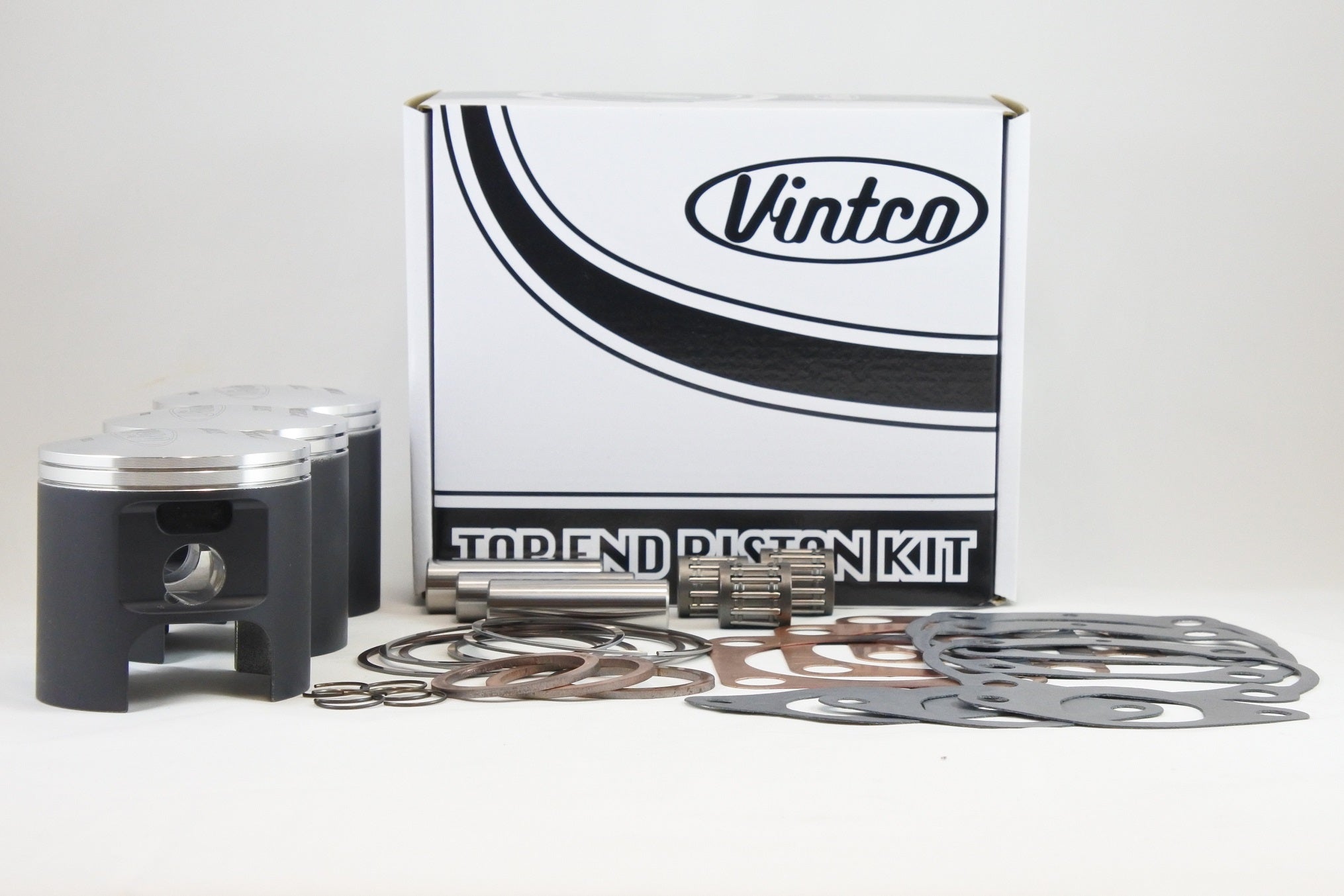

Top End Piston Kit 72-75 Kawasaki H2 750 72.5mm 1.5mm Over Vintco KTK03-1.5

VintCo top end piston kit KTK03-1.5 is a complete rebuild kit for 1972-1975 Kawasaki H2-750 models. This 72.5mm kit in +1.5mm oversize includes three piston assemblies with rings, pins and clips, together with top end bearings and a full top-end gasket set covering the head, base, intake and exhaust. Components are manufactured using modern materials and production methods to provide OEM-equivalent fitment and performance, and the kit price is 10% lower than purchasing the parts individually.

Features

• Complete top-end rebuild kit
• Includes piston assemblies with rings, pins and clips
• Includes top end bearings
• Includes a full top-end gasket set
• Covers head, base, intake and exhaust sealing requirements
• OEM part numbers supplied for fitment verification
• Additional size options are available
• Kit pricing includes a 10% saving compared with individual items

Specifications

• VintCo Part Number: KTK03-1.5
• Bore size: 72.5mm
• Oversize: +1.5mm
• Piston diameter: 72.43mm
• Piston clearance: 0.07mm
• Piston quantity: 3
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MoS2
• Head gasket quantity: 3
• Base gasket quantity: 3
• Intake gasket quantity: 3
• Exhaust gasket quantity: 3
• Wrist pin bearing quantity: 3

Cross-Reference OEM Part Numbers

• Head gasket: 11004-049
• Base gasket: 11009-028
• Intake gasket: 16062-016
• Exhaust gasket: 18067-008
• Wrist pin bearing: 13033-027

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
