TOP END PISTON KIT 72-75 KAWASAKI H2 750 72.0mm 1.0mm OVER VINTCO
  • TOP END PISTON KIT 72-75 KAWASAKI H2 750 72.0mm 1.0mm OVER VINTCO
  • TOP END PISTON KIT 72-75 KAWASAKI H2 750 72.0mm 1.0mm OVER VINTCO
  • TOP END PISTON KIT 72-75 KAWASAKI H2 750 72.0mm 1.0mm OVER VINTCO
  • TOP END PISTON KIT 72-75 KAWASAKI H2 750 72.0mm 1.0mm OVER VINTCO
TOP END PISTON KIT 72-75 KAWASAKI H2 750 72.0mm 1.0mm OVER VINTCO

TOP END PISTON KIT 72-75 KAWASAKI H2 750 72.0mm 1.0mm OVER VINTCO

£571.40 GBP
Taxes included. Shipping calculated at checkout.

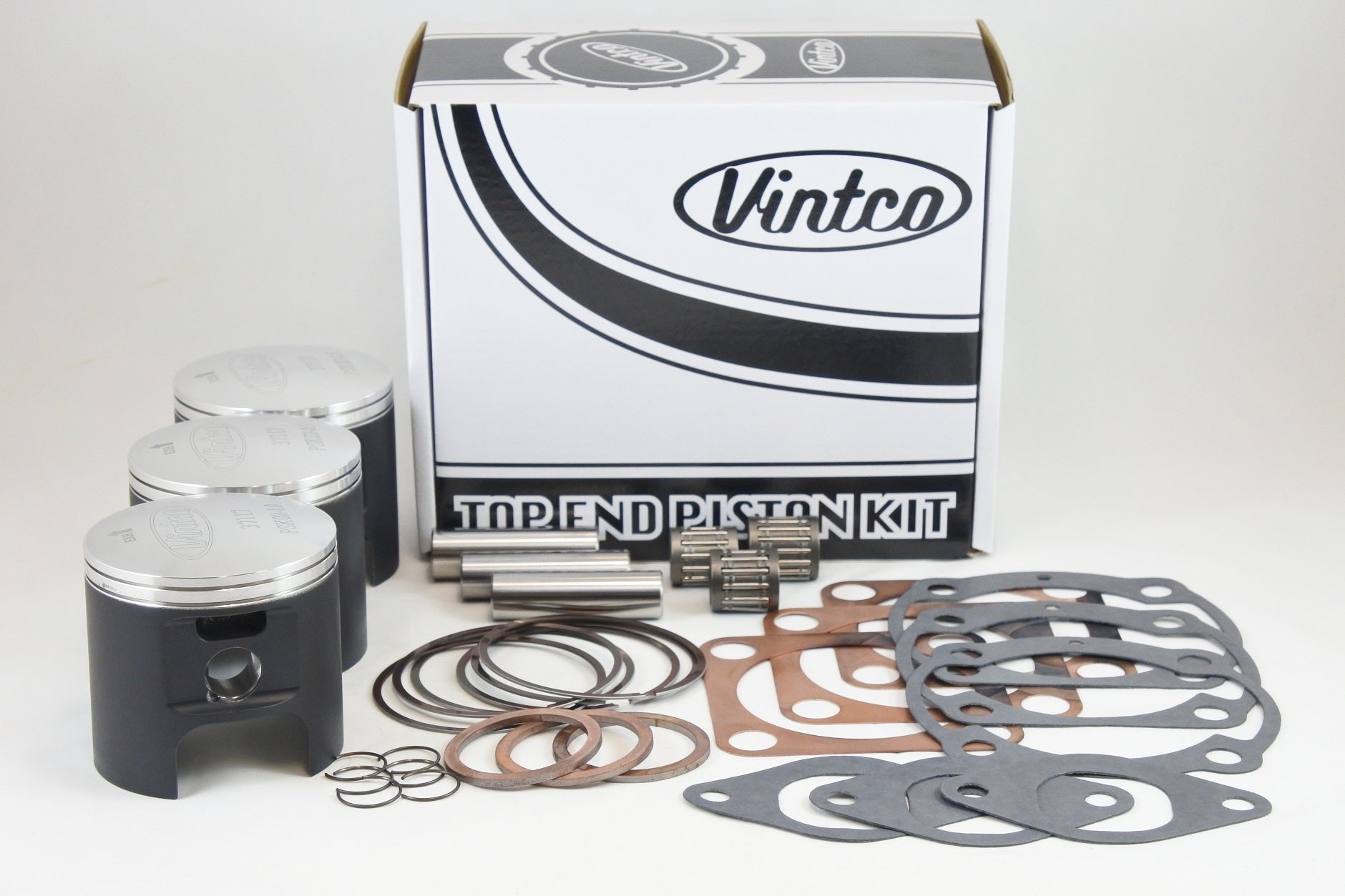

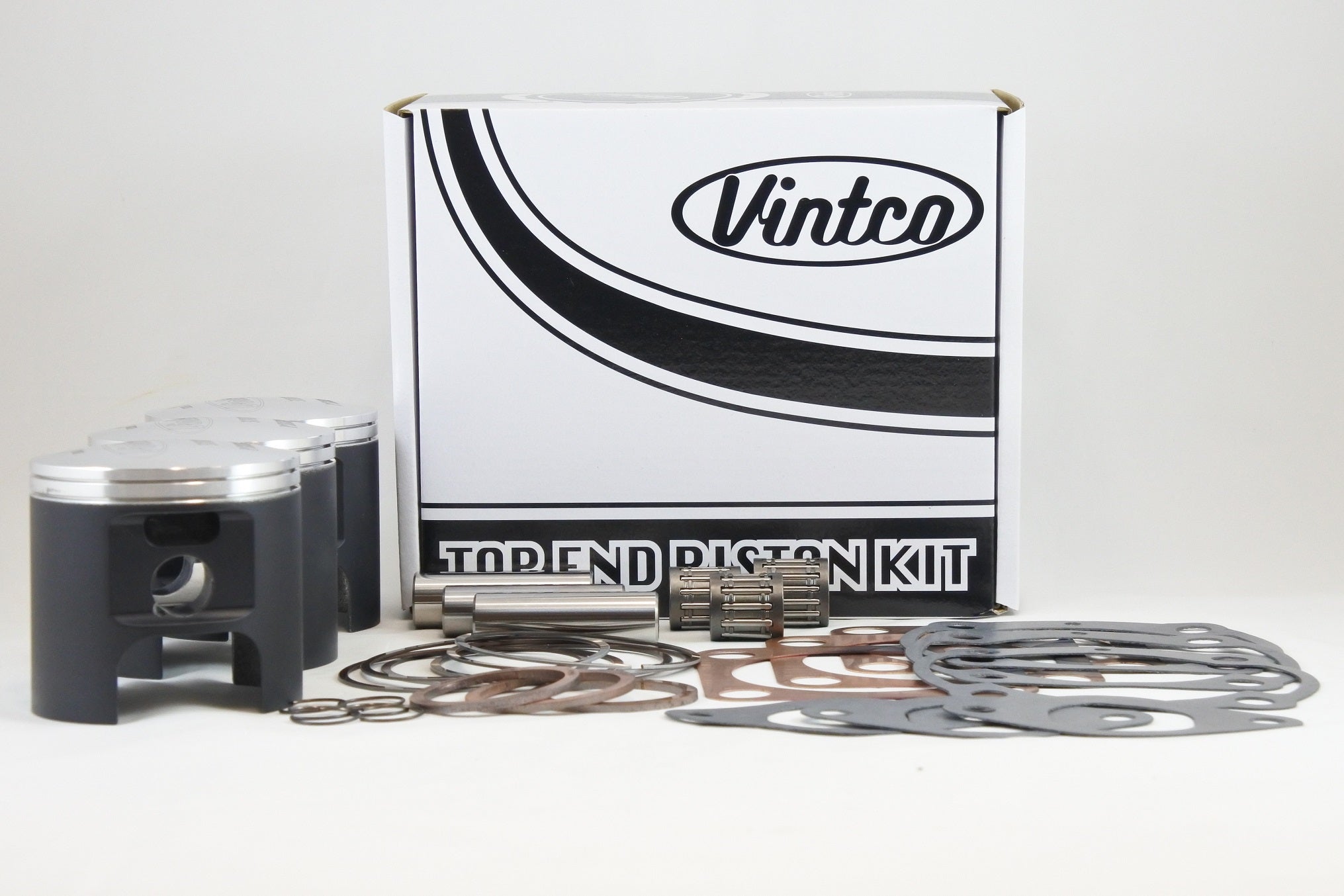

This VintCo top end piston kit is a complete rebuild set for 1972-1975 Kawasaki H2-750 models, supplied in 72.0 mm, +1.0 mm oversize form. It includes three piston kits with pistons, rings, pins and clips, three wrist pin bearings, and a full top-end gasket set with head, base, intake and exhaust gaskets for the entire top end. The components are produced using modern materials and manufacturing techniques for OEM-equivalent fit and performance, and the kit price is 10% lower than purchasing the parts individually.

Features

  • Complete top-end rebuild kit
  • Includes piston assemblies, wrist pin bearings and a full top-end gasket set
  • Suitable for full top-end rebuild work
  • MoS2-coated pistons for running-in
  • Designed for OEM-equivalent fit and performance
  • Additional size options available

Specifications

  • VintCo Part Number: KTK03-1.0
  • Piston type: Forged
  • Manufactured in: Germany
  • Nominal size: 72.0 mm
  • Oversize: +1.0 mm
  • Piston measurement listed: 71.93 mm
  • Clearance: 0.07 mm

Cross-Reference OEM Part Numbers

  • Piston: 13027-049
  • Head gasket: 11004-049
  • Base gasket: 11009-028
  • Intake gasket: 16062-016
  • Exhaust gasket: 18067-008
  • Wrist pin bearing: 13033-027

Vehicle Fitments

  • 1972 Kawasaki H2-750
  • 1973 Kawasaki H2-750
  • 1974 Kawasaki H2-750
  • 1975 Kawasaki H2-750
