TOP END PISTON KIT 72-75 KAWASAKI H2 750 71.5mm 0.5mm OVER VINTCO KTK03-0.5

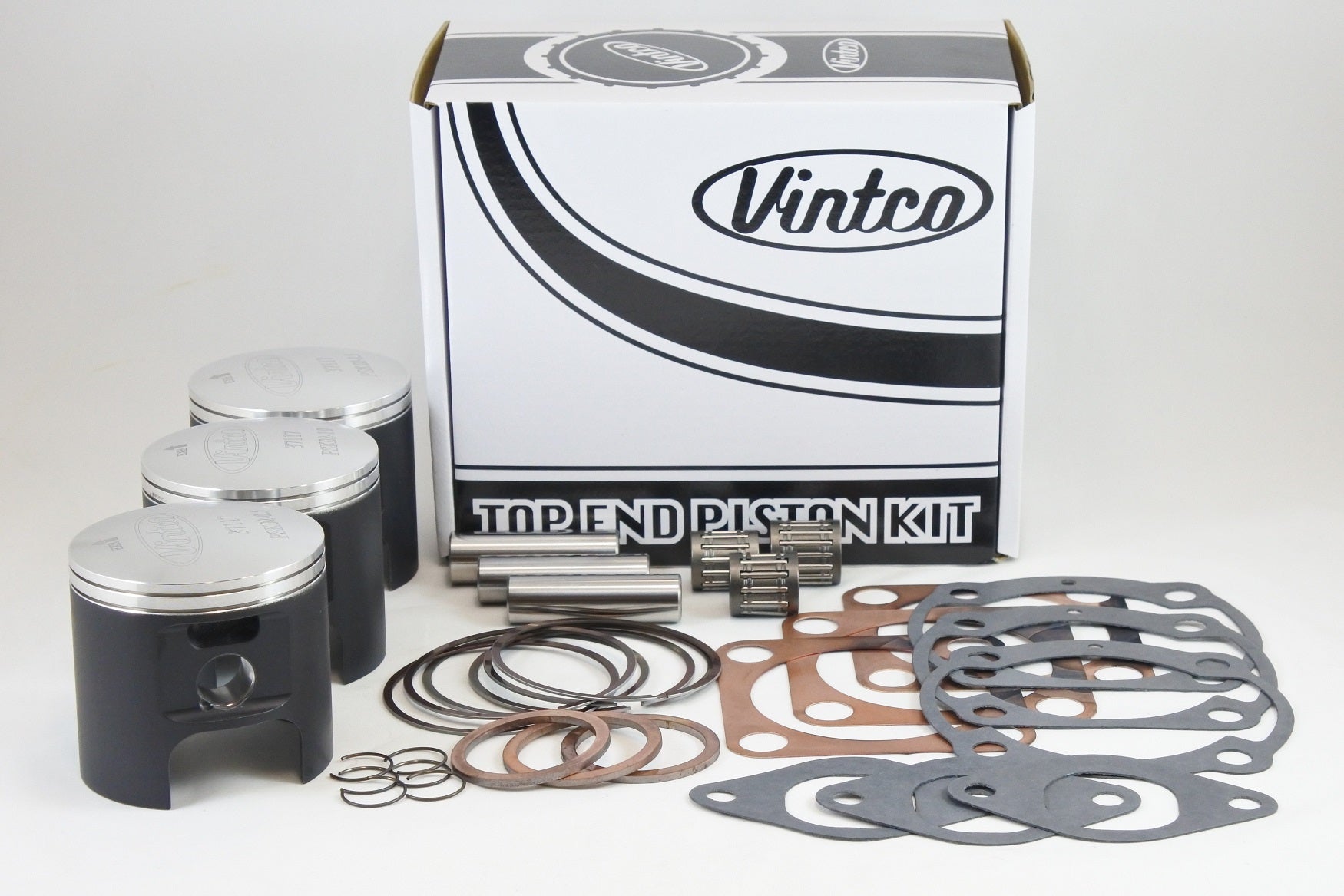

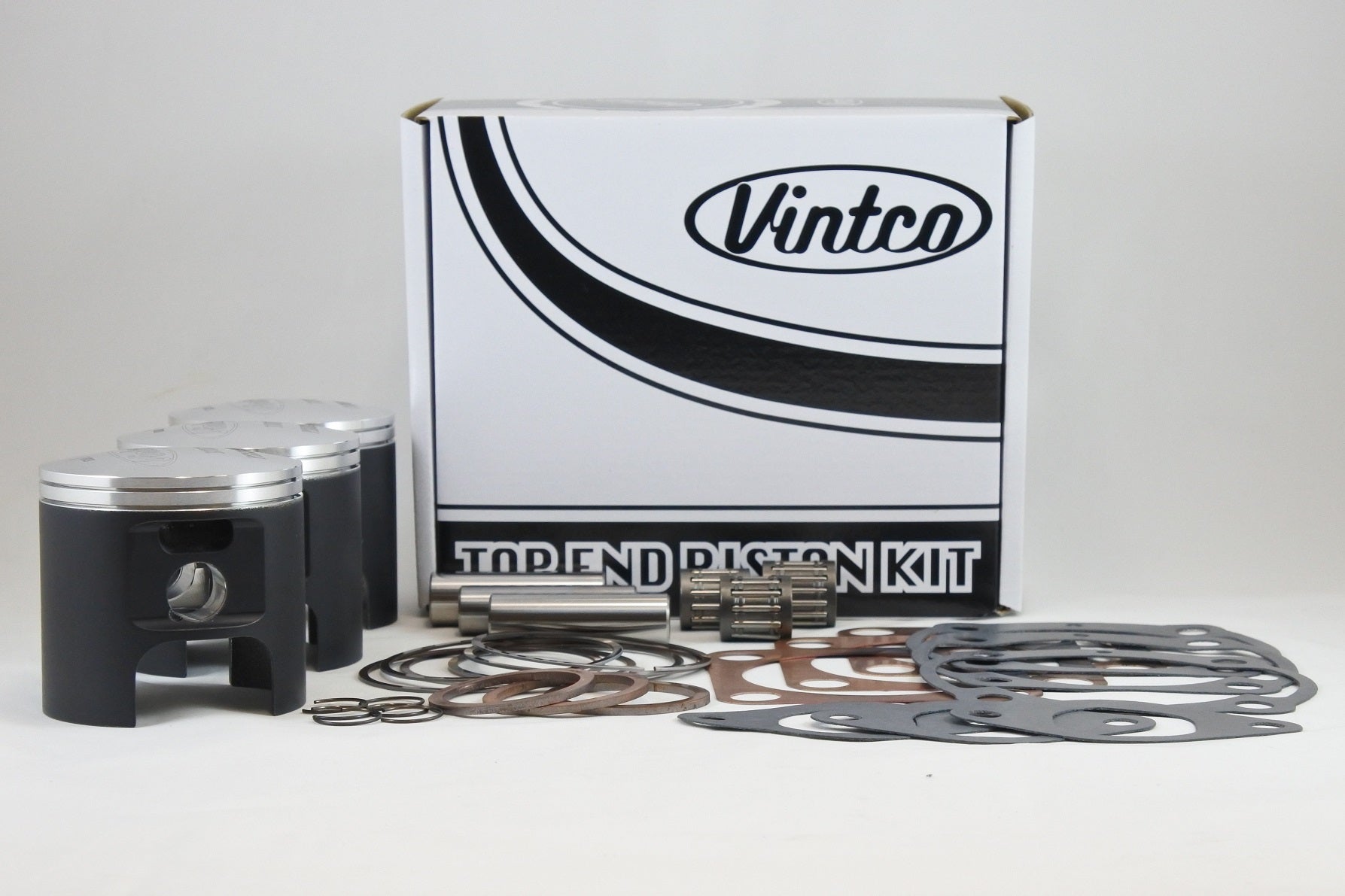

This VintCo top end piston kit is a complete rebuild set for 1972-1975 Kawasaki H2-750 models. It is designed for 71.5mm bore applications at 0.5mm oversize and includes three piston kits with pistons, rings, pins and clips, along with top end bearings and a full top-end gasket set for the entire top end. The components are produced using modern materials and manufacturing methods for OEM-equivalent fitment and performance.

Features

• Complete top-end rebuild kit
• Supplied with piston kits, top end bearings and a full top-end gasket set
• Gasket coverage for head, base, intake and exhaust
• MoS2-coated pistons for break-in
• Uses modern materials and manufacturing techniques for OEM-equivalent fitment and performance
• Intended to simplify rebuild work in a cost-effective package
• Kit price includes a 10% saving compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK03-0.5
• Product type: Top End Piston Kit
• Piston diameter: 71.5mm
• Oversize: +0.5mm
• Piston measurement: 71.43mm
• Piston-to-cylinder clearance: 0.07mm
• Piston type: Forged
• Country of manufacture: Germany
• Includes 3 pistons
• Includes 3 head gaskets
• Includes 3 base gaskets
• Includes 3 intake gaskets
• Includes 3 exhaust gaskets
• Includes 3 wrist pin bearings

Cross-Reference OEM Part Numbers

• Pistons: 13029-051
• Head gaskets: 11004-049
• Base gaskets: 11009-028
• Intake gaskets: 16062-016
• Exhaust gaskets: 18067-008
• Wrist pin bearings: 13033-027

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
