TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.5mm 1.5mm OVER VINTCO KTK09-1.5
  • TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.5mm 1.5mm OVER VINTCO KTK09-1.5
  • TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.5mm 1.5mm OVER VINTCO KTK09-1.5
  • TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.5mm 1.5mm OVER VINTCO KTK09-1.5
  • TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.5mm 1.5mm OVER VINTCO KTK09-1.5
TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.5mm 1.5mm OVER VINTCO KTK09-1.5

TOP END PISTON KIT 72-75 KAWASAKI H2 750 18mm WRIST PIN BORE 72.5mm 1.5mm OVER VINTCO KTK09-1.5

£599.75 GBP
Taxes included. Shipping calculated at checkout.

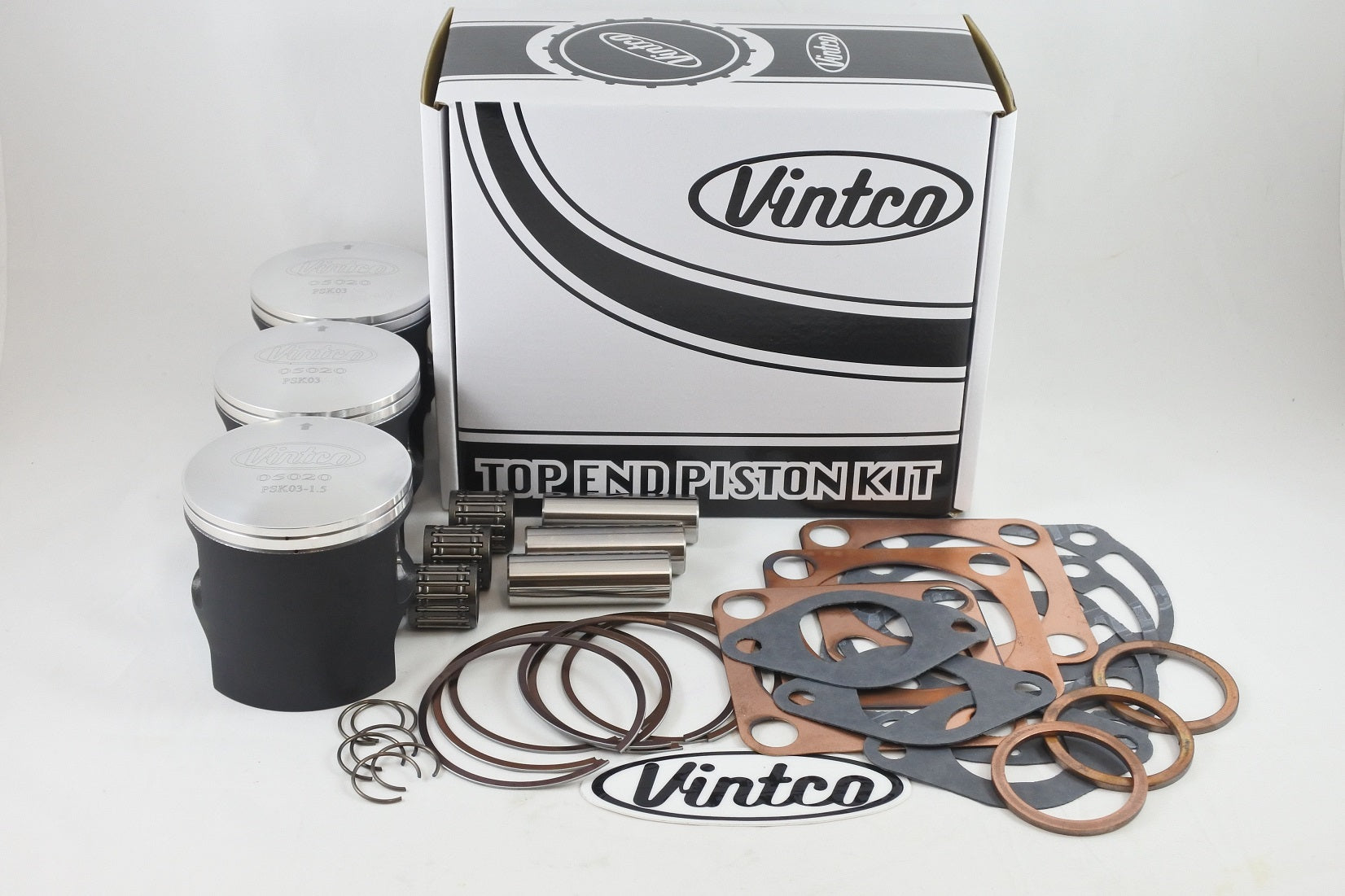

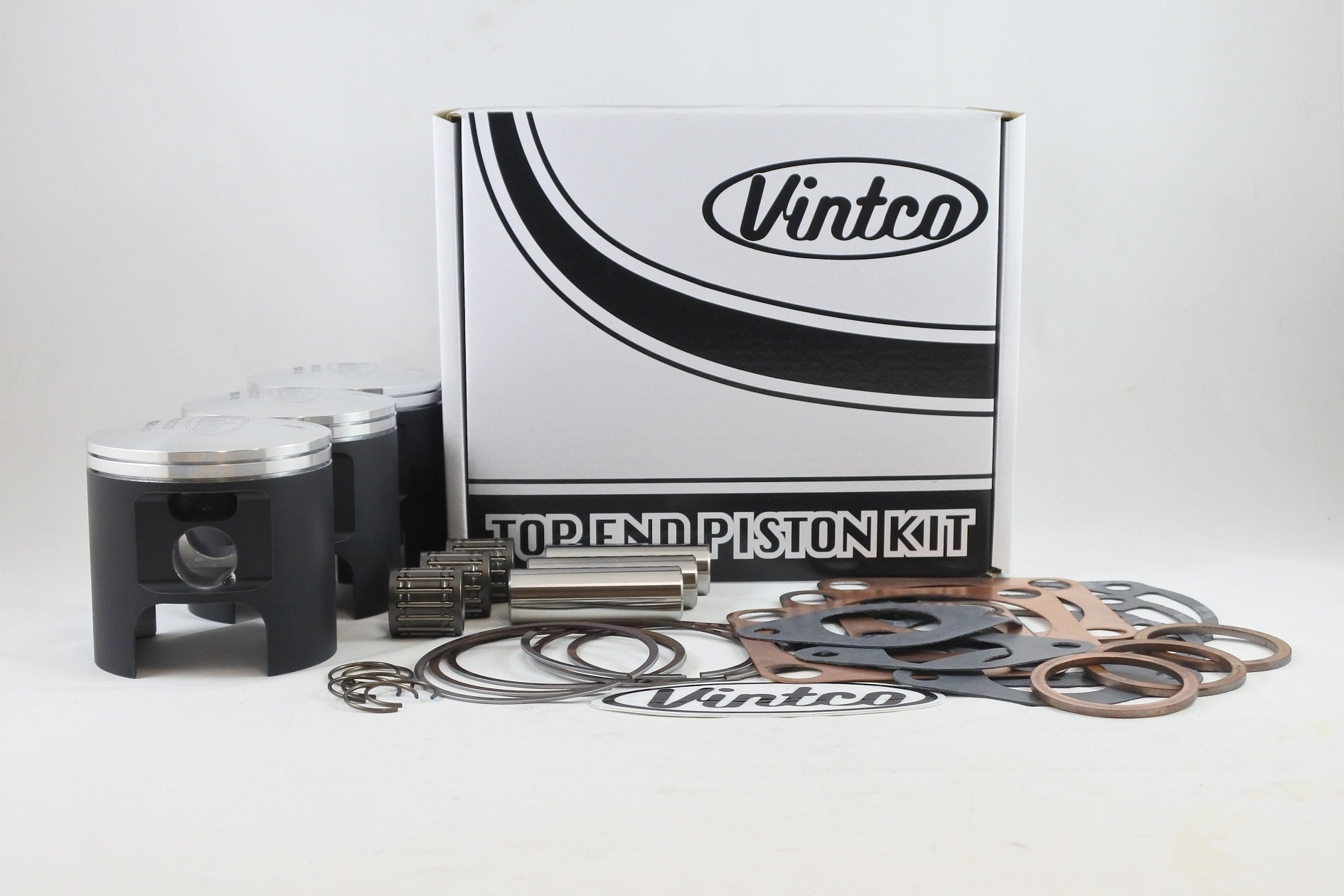

VintCo KTK09-1.5 is a top end piston kit for 1972-1975 Kawasaki H2-750 models with an 18 mm wrist pin bore and 72.5 mm bore size, 1.5 mm oversize. The kit is intended for top end rebuilds and includes three high performance/race piston assemblies with rings, pins and clips, three wrist pin bearings, and a complete top-end gasket set covering the head, base, intake and exhaust. Components are manufactured using modern materials and processes for OEM-equivalent or better fit and performance. This kit is for use only with VintCo Heavy Duty High Performance Crankshaft CR2010, and the kit price is 10% lower than purchasing the components individually. Additional size options are also available.

Features

  • Complete top end rebuild kit
  • Includes three piston assemblies with rings, pins and clips
  • Includes top end bearings
  • Includes a full top-end gasket set
  • Covers head, base, intake and exhaust sealing points
  • High performance/race piston configuration
  • MoS2-coated pistons for running-in
  • For use only with VintCo Heavy Duty High Performance Crankshaft CR2010
  • OEM cross-reference part numbers provided for fitment verification
  • Additional size options available
  • Kit price is 10% lower than purchasing the components individually

Specifications

  • VintCo Part Number: KTK09-1.5
  • Product type: Top End Piston Kit
  • Wrist pin bore: 18 mm
  • Nominal bore size: 72.5 mm
  • Oversize: 1.5 mm over
  • Piston quantity: 3
  • Piston size: 72.43 mm
  • Piston clearance: 0.07 mm
  • Piston construction: Forged
  • Piston coating: MoS2
  • Country of manufacture: Germany
  • Head gaskets included: 3
  • Base gaskets included: 3
  • Intake gaskets included: 3
  • Exhaust gaskets included: 3
  • Wrist pin bearings included: 3

Cross-Reference OEM Part Numbers

  • Head gasket: 11004-049
  • Base gasket: 11009-028
  • Intake gasket: 16062-016
  • Exhaust gasket: 18067-008
  • Wrist pin bearing: 13033-027

Vehicle Fitments

  • 1972 Kawasaki H2-750
  • 1973 Kawasaki H2-750
  • 1974 Kawasaki H2-750
  • 1975 Kawasaki H2-750
