Top End Piston Kit 72-75 Kawasaki H2 750 18mm Wrist Pin Bore 71.5mm 0.5mm Over Vintco KTK09-0.5

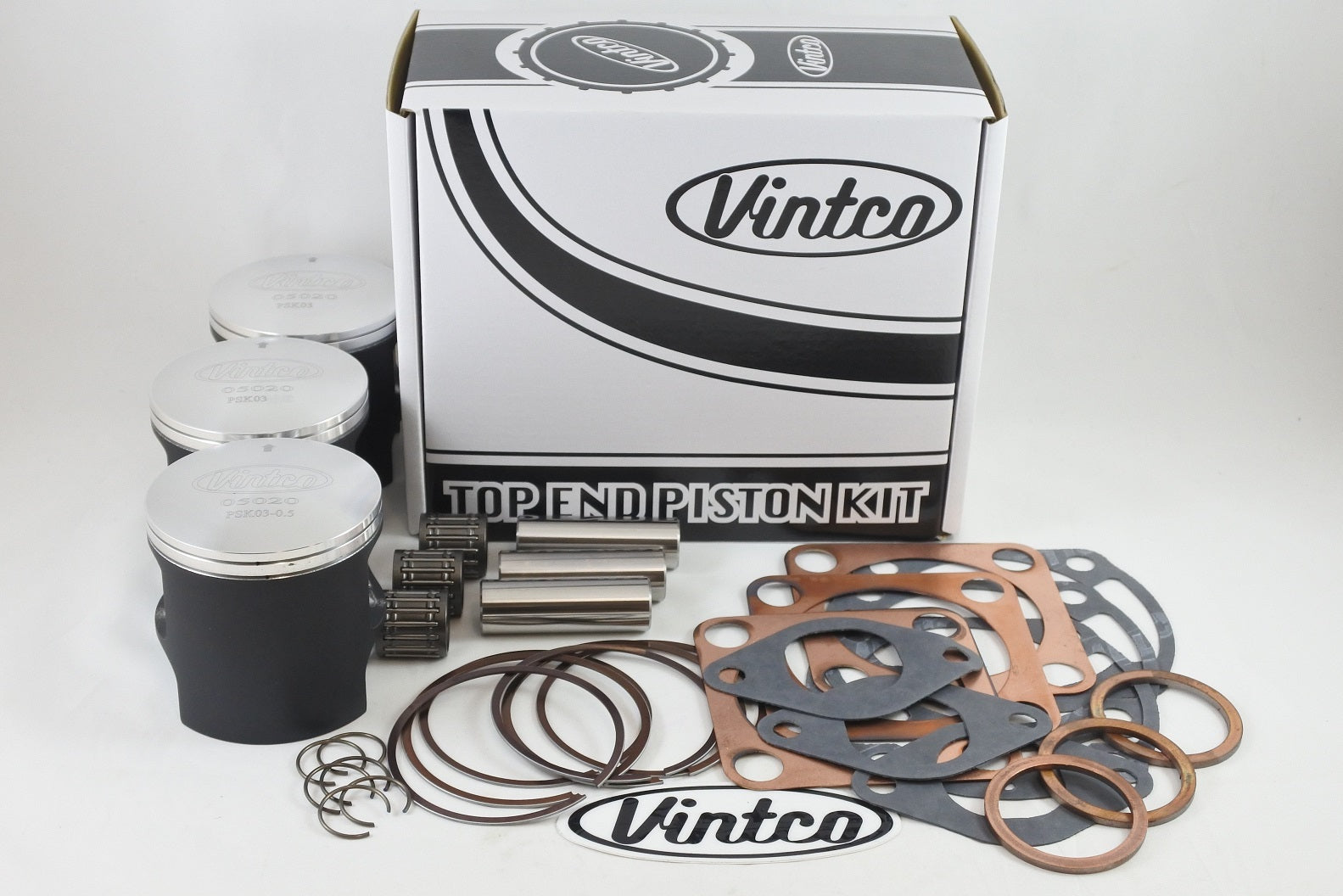

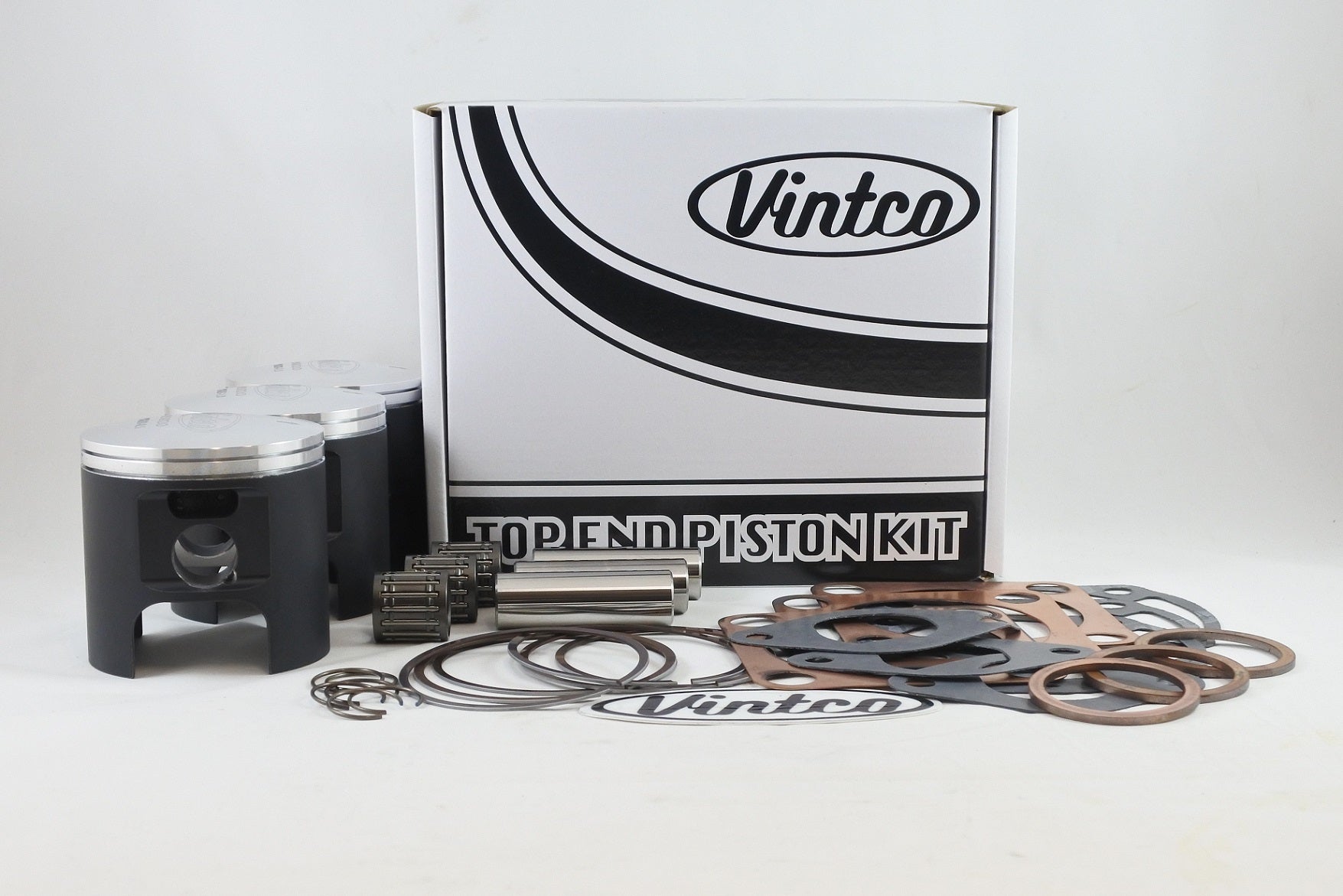

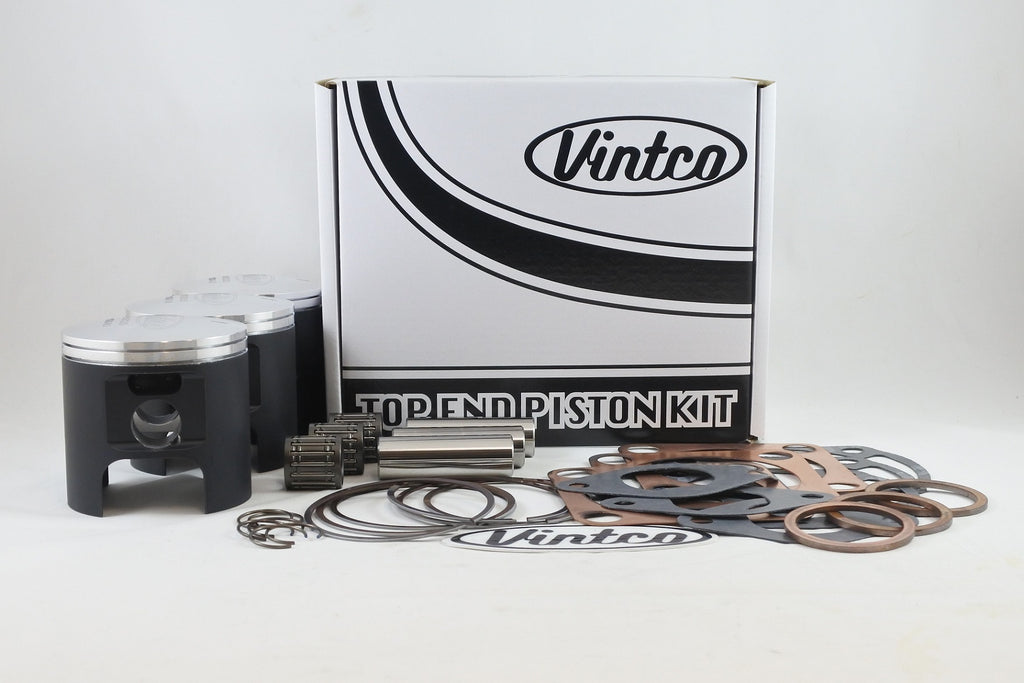

VintCo KTK09-0.5 is a complete top end piston kit for 1972-1975 Kawasaki H2-750 models, supplied with a 71.5 mm bore size in 0.5 mm oversize and an 18 mm wrist pin bore. The kit is intended for top end rebuilds and includes three VintCo High Performance/Race piston assemblies with pistons, rings, pins and clips, three wrist pin bearings, and a full top-end gasket set for the head, base, intake and exhaust. Components are produced using modern materials and manufacturing methods to provide OEM-equivalent fitment and performance, with the kit supplied as a combined rebuild package.

Features

• Complete top end rebuild kit
• Includes three piston assemblies with rings, pins and clips
• Includes three wrist pin bearings
• Includes a full top-end gasket set
• Covers head, base, intake and exhaust sealing points for the entire top end
• Intended for use only with VintCo Heavy Duty High Performance Crankshaft CR2010 for Kawasaki H2 750 1972-1975
• Kit price is 10% lower than purchasing the equivalent parts individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK09-0.5
• Product type: Top End Piston Kit
• Piston size: 71.5 mm
• Oversize: 0.5 mm over
• Wrist pin bore: 18 mm
• Piston diameter: 71.43 mm
• Piston clearance: 0.07 mm
• Pistons supplied: 3
• Piston construction: Forged
• Piston manufacture: Made in Germany
• Piston coating: MoS2 coated for break-in
• Head gaskets supplied: 3
• Base gaskets supplied: 3
• Intake gaskets supplied: 3
• Exhaust gaskets supplied: 3
• Wrist pin bearings supplied: 3

Cross-Reference OEM Part Numbers

• Head gasket: 11004-049
• Base gasket: 11009-028
• Intake gasket: 16062-016
• Exhaust gasket: 18067-008
• Wrist pin bearing: 13033-027

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
