Top End Piston Kit 72-73 Yamaha DT2 DT3 DT250 71.5mm Vintco KTY54-1.5

Top End Piston Kit 72-73 Yamaha DT2 DT3 DT250 71.5mm Vintco KTY54-1.5

£239.91 GBP
Taxes included. Shipping calculated at checkout.

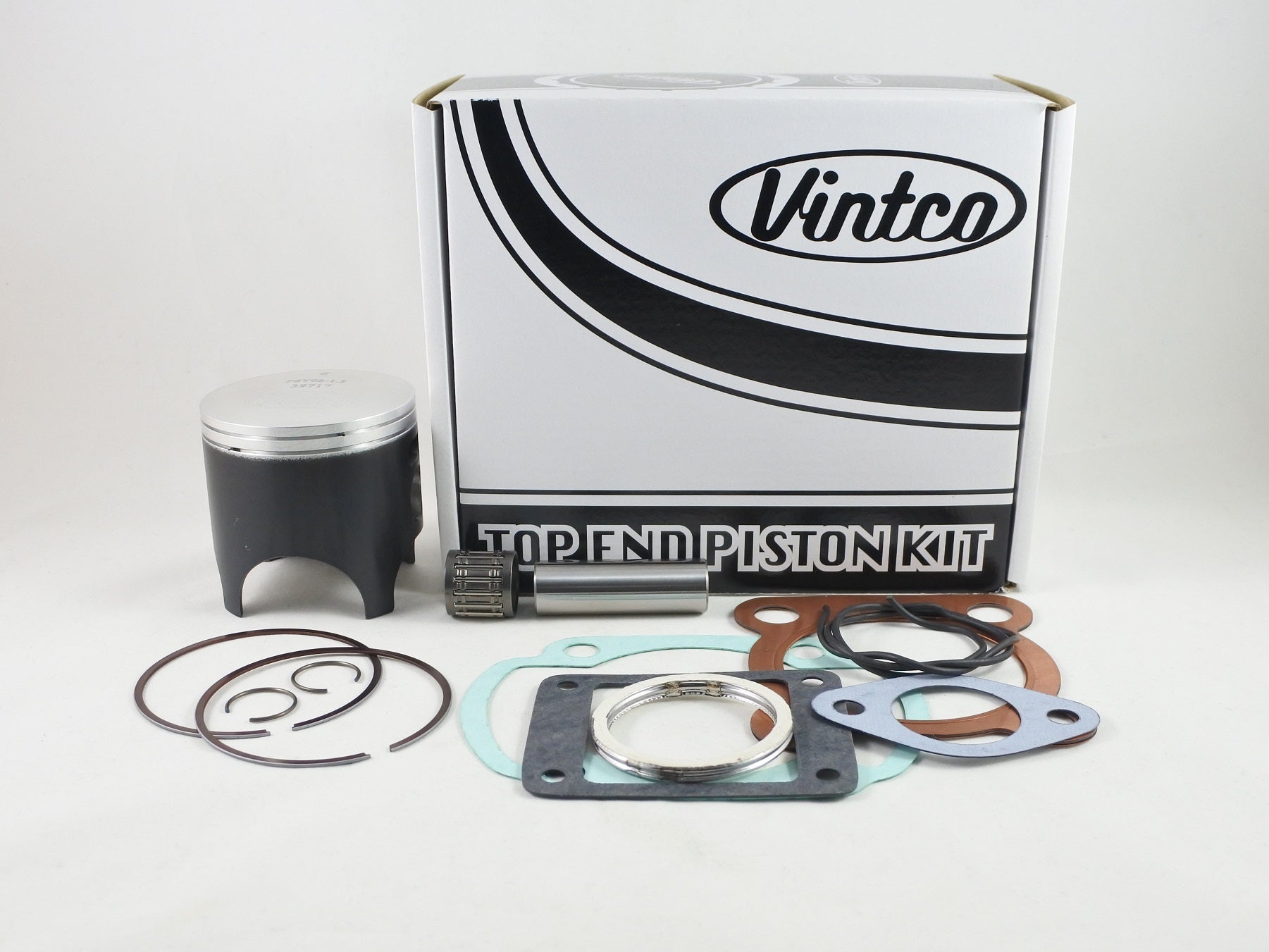

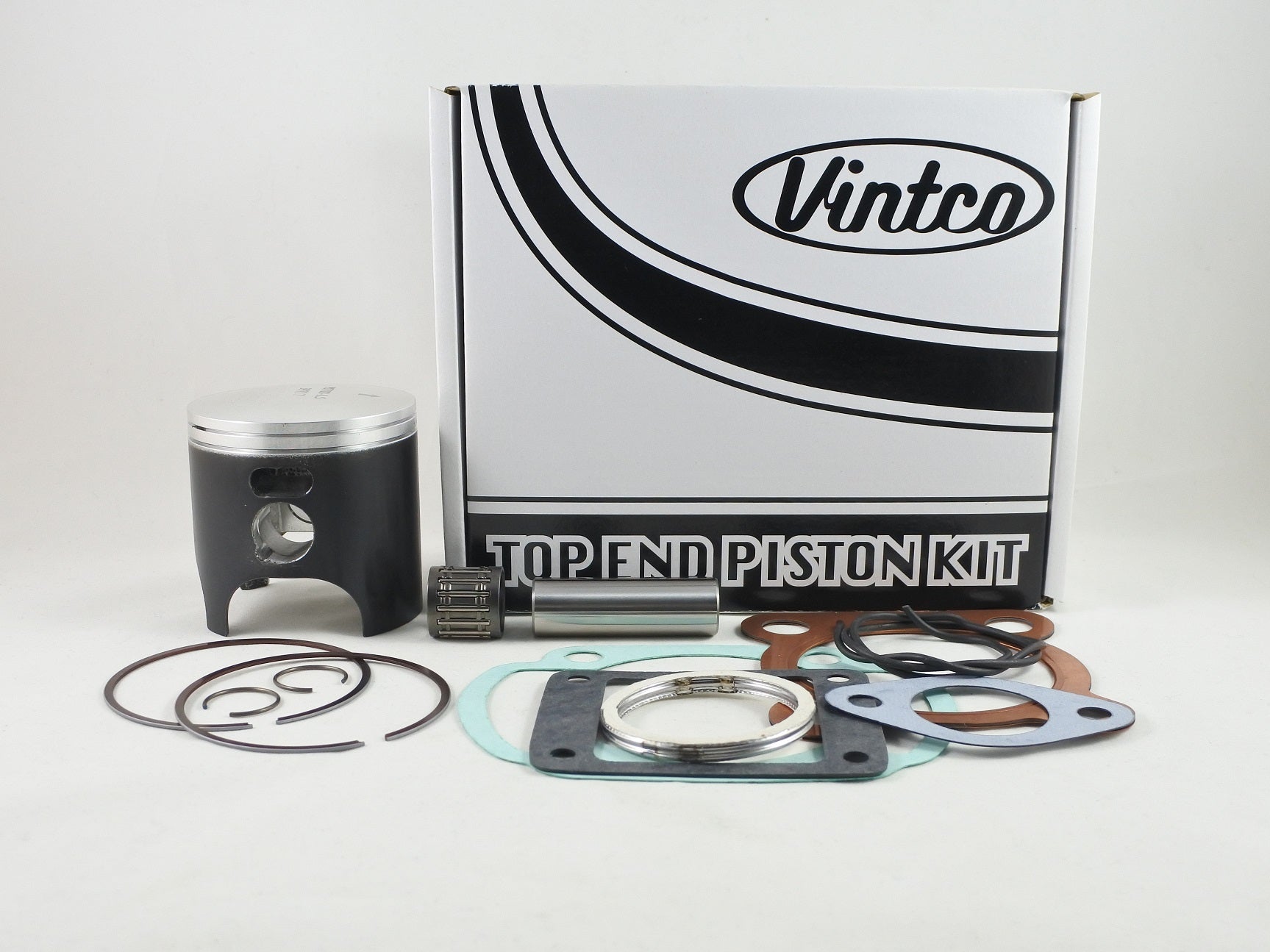

This VintCo top end piston kit is for 1972-1973 Yamaha DT2, DT3 and DT250 models and provides the main components required for a top end rebuild. The kit includes a German-made forged piston with MOS2 coating for running-in, the necessary gaskets and a wrist pin bearing, and is priced at a 10% discount compared with the individual items.

Features

  • Complete top end piston kit
  • Includes forged piston
  • MOS2-coated piston for running-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes 2 reed valve gaskets
  • Includes intake gasket
  • Includes 2 exhaust pipe gaskets
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY54-1.5
  • Piston size: 71.5 mm
  • Piston diameter: 71.44 mm
  • Clearance: 0.06 mm
  • Oversize: 1.5 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 214-11181-09-00
  • Cylinder base gasket: 214-11351-09-00
  • Reed valve gasket: 3TT-13621-00-00
  • Intake gasket: 275-13556-09-00
  • Exhaust pipe gasket: 214-14613-09-00
  • Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

  • 1972 Yamaha DT2
  • 1972 Yamaha DT250
  • 1973 Yamaha DT3
  • 1973 Yamaha DT250
