TOP END PISTON KIT 72-73 YAMAHA DT 2 3 250 71mm 1.0mm OVER VINTCO KTY54-1.0
  • TOP END PISTON KIT 72-73 YAMAHA DT 2 3 250 71mm 1.0mm OVER VINTCO KTY54-1.0
  • TOP END PISTON KIT 72-73 YAMAHA DT 2 3 250 71mm 1.0mm OVER VINTCO KTY54-1.0
  • TOP END PISTON KIT 72-73 YAMAHA DT 2 3 250 71mm 1.0mm OVER VINTCO KTY54-1.0
  • TOP END PISTON KIT 72-73 YAMAHA DT 2 3 250 71mm 1.0mm OVER VINTCO KTY54-1.0
TOP END PISTON KIT 72-73 YAMAHA DT 2 3 250 71mm 1.0mm OVER VINTCO KTY54-1.0

TOP END PISTON KIT 72-73 YAMAHA DT 2 3 250 71mm 1.0mm OVER VINTCO KTY54-1.0

£239.91 GBP
Taxes included. Shipping calculated at checkout.

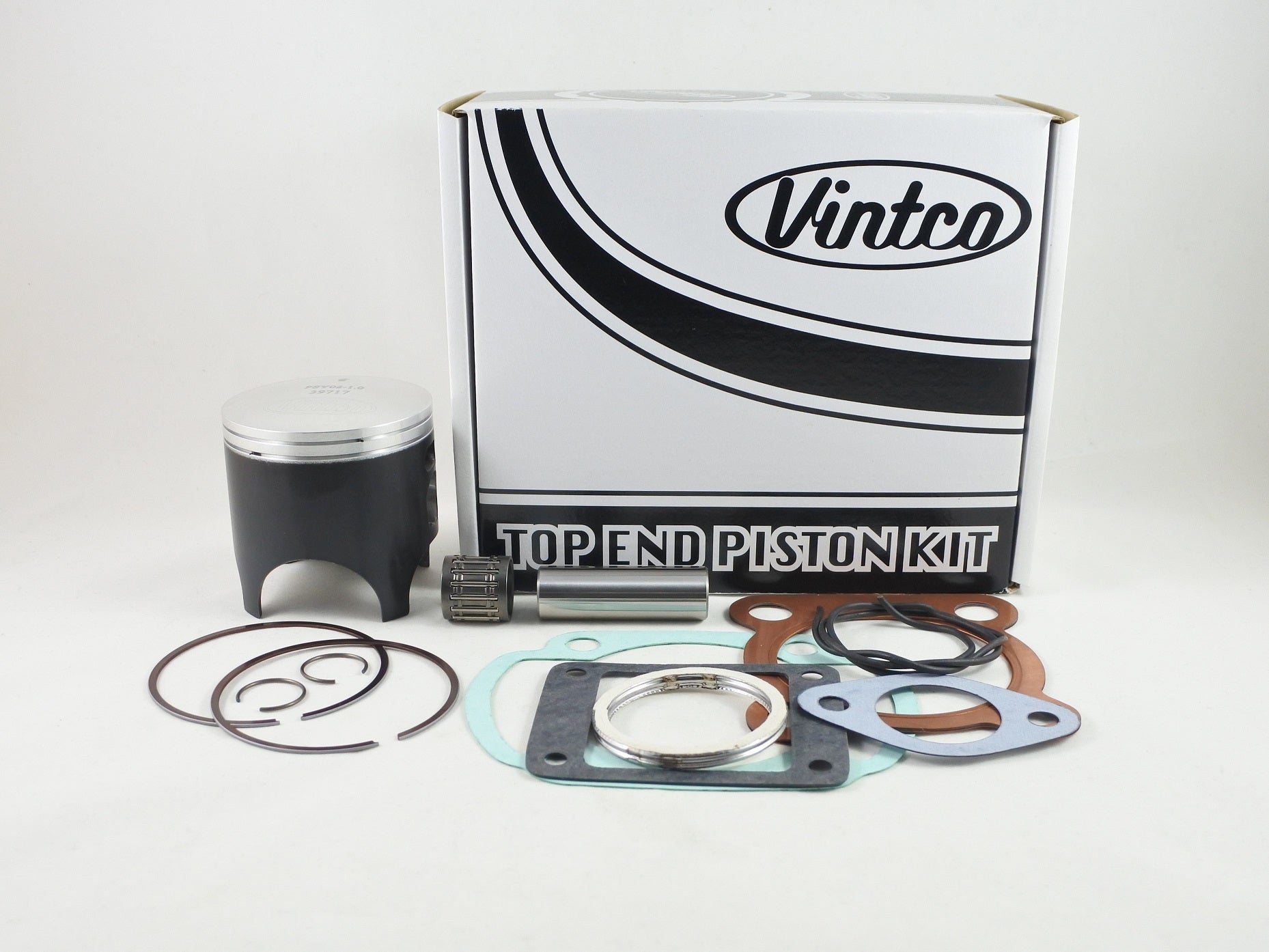

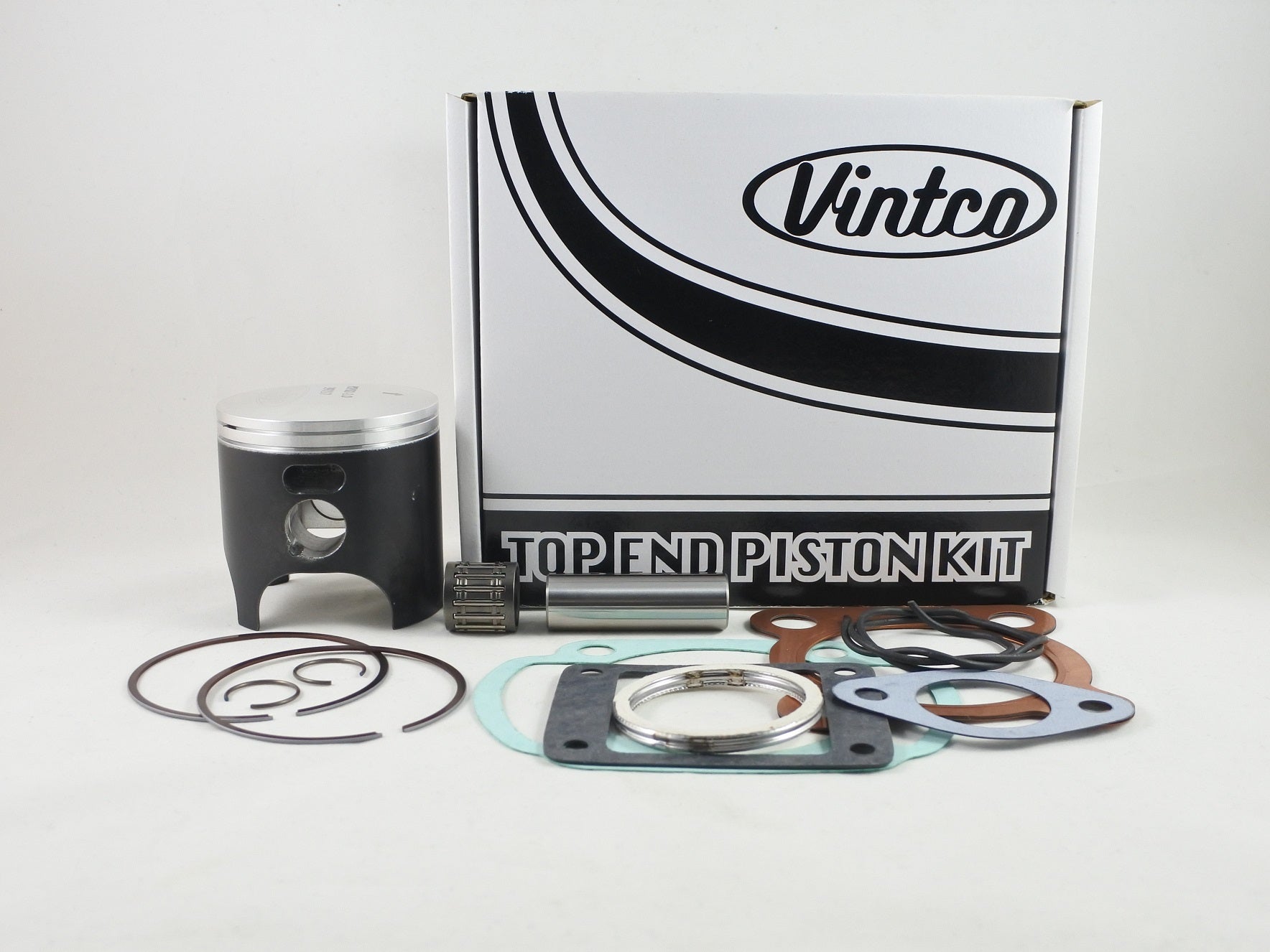

Top end piston kit for 1972-1973 Yamaha DT2, DT3 and DT250 models, supplied as a complete package with a forged piston, gasket set and wrist pin bearing. The kit price includes a 10% discount compared with purchasing the individual items separately.

Features

  • Complete top end piston kit
  • Forged piston
  • MOS2-coated piston for break-in
  • Made in Germany
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes 2 reed valve gaskets
  • Includes intake gasket
  • Includes 2 exhaust pipe gaskets
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY54-1.0
  • Nominal piston size: 71 mm
  • Oversize: 1.0 mm over
  • Piston diameter: 70.94 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 214-11181-09-00
  • Cylinder base gasket: 214-11351-09-00
  • Reed valve gaskets: 3TT-13621-00-00
  • Intake gasket: 275-13556-09-00
  • Exhaust pipe gasket: 214-14613-09-00
  • Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

  • 1972 Yamaha DT2
  • 1972 Yamaha DT250
  • 1973 Yamaha DT3
  • 1973 Yamaha DT250
