Top End Piston Kit 69-73 Kawasaki H1 500 61.5mm Over Vintco KTK01-1.5

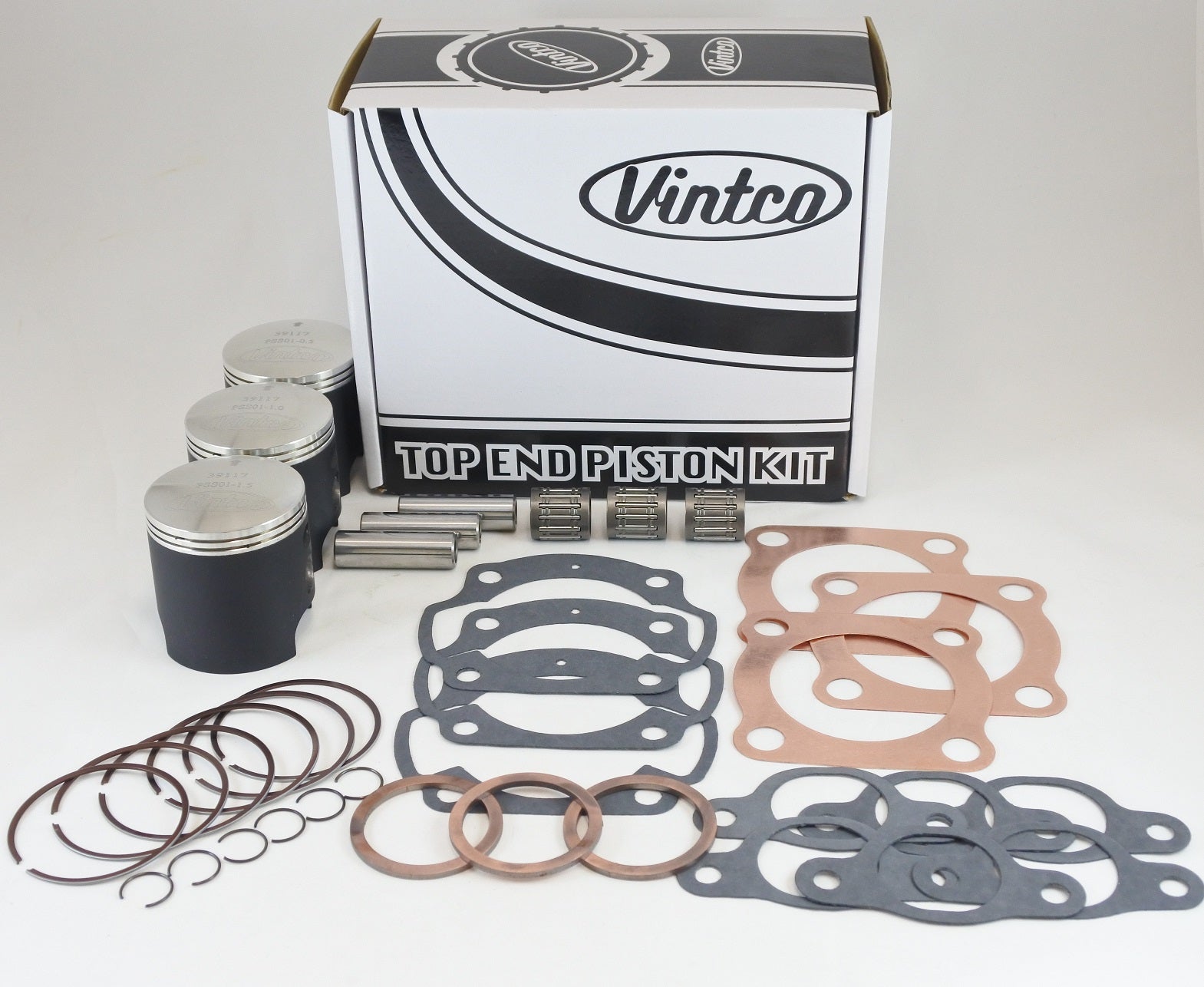

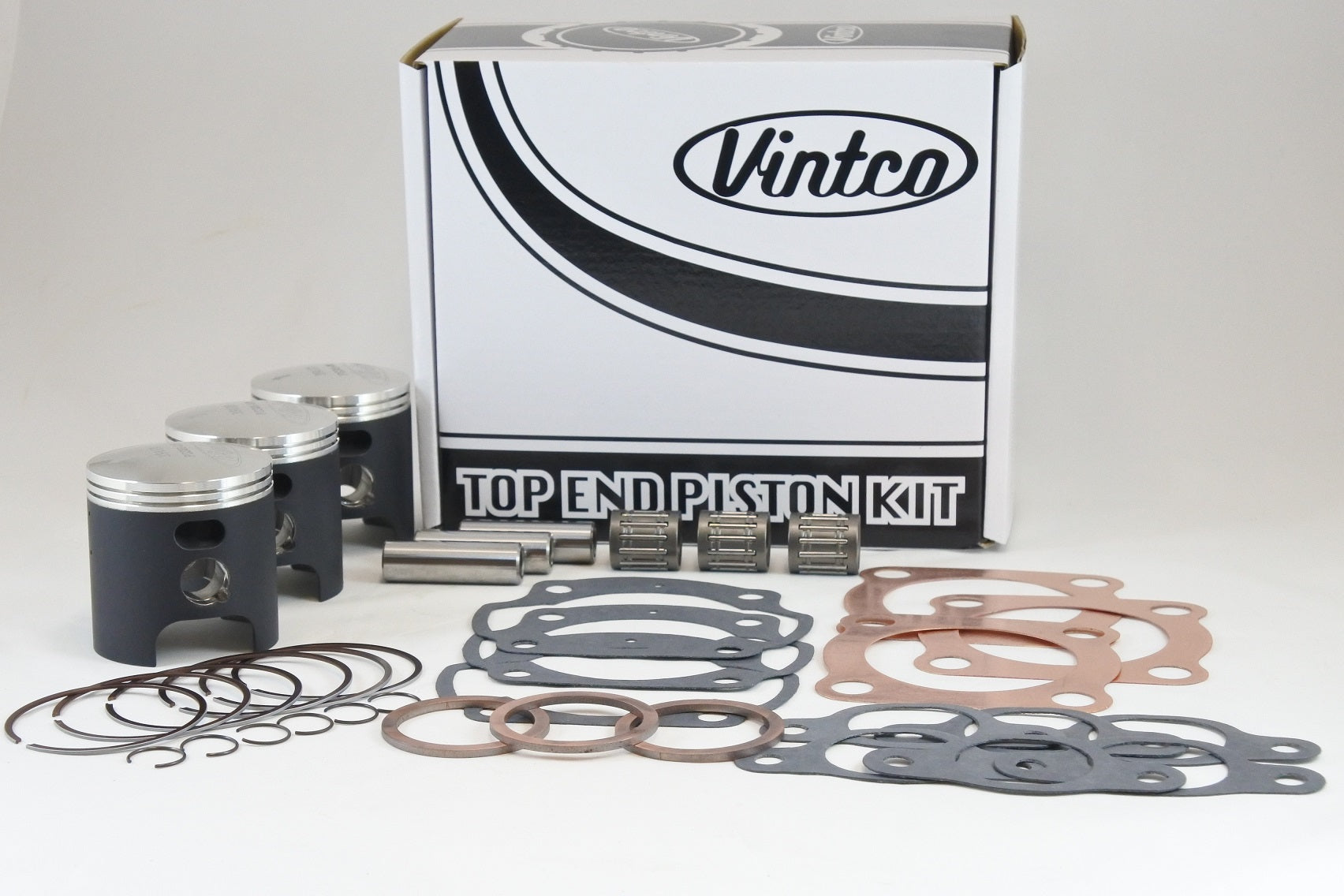

VintCo top end piston kit KTK01-1.5 is a complete rebuild set for Kawasaki H1-500 models from 1969 to 1973. It includes three piston kits with pistons, rings, pins and clips, three wrist pin bearings, and a full top-end gasket set with head, base, intake and exhaust gaskets for the entire top end. The components are manufactured using modern materials and production methods for OEM-equivalent fit and performance, and the kit price is 10% lower than purchasing the parts individually.

Features

• Complete top-end rebuild kit
• Includes three piston kits
• Each piston kit includes piston, rings, pin and clips
• Includes top-end bearings
• Includes full top-end gasket kit for the entire top end
• Intended for rebuild work
• OEM part numbers supplied for fitment confirmation
• Additional size options are available

Specifications

• VintCo Part Number: KTK01-1.5
• Product type: Top End Piston Kit
• Piston type: Forged
• Country of manufacture: Germany
• Piston coating: MoS2
• Nominal piston size: 61.5 mm
• Oversize: +1.5 mm
• Piston measurement: 61.43 mm
• Clearance: 0.07 mm
• Pistons included: 3
• Head gaskets included: 3
• Base gaskets included: 3
• Intake gaskets included: 6
• Exhaust gaskets included: 3
• Wrist pin bearings included: 3

Cross-Reference OEM Part Numbers

• Head gasket: 11004-048
• Base gasket: 11009-019
• Intake gasket: 16062-011
• Exhaust gasket: 18067-008
• Wrist pin bearing: 93310-216E1-00

Vehicle Fitments

• 1969 Kawasaki H1-500
• 1970 Kawasaki H1-500
• 1971 Kawasaki H1-500
• 1972 Kawasaki H1-500
• 1973 Kawasaki H1-500
