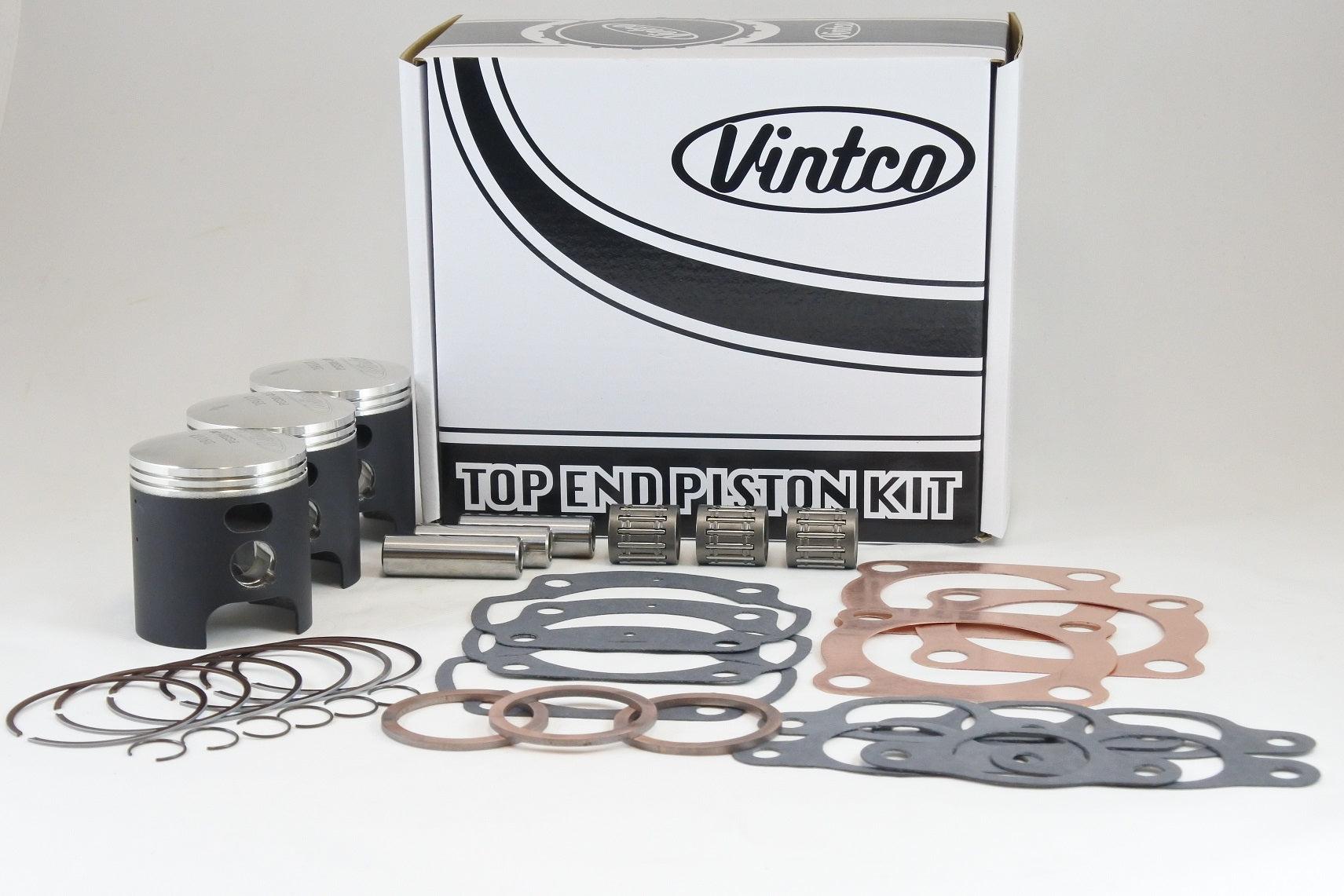

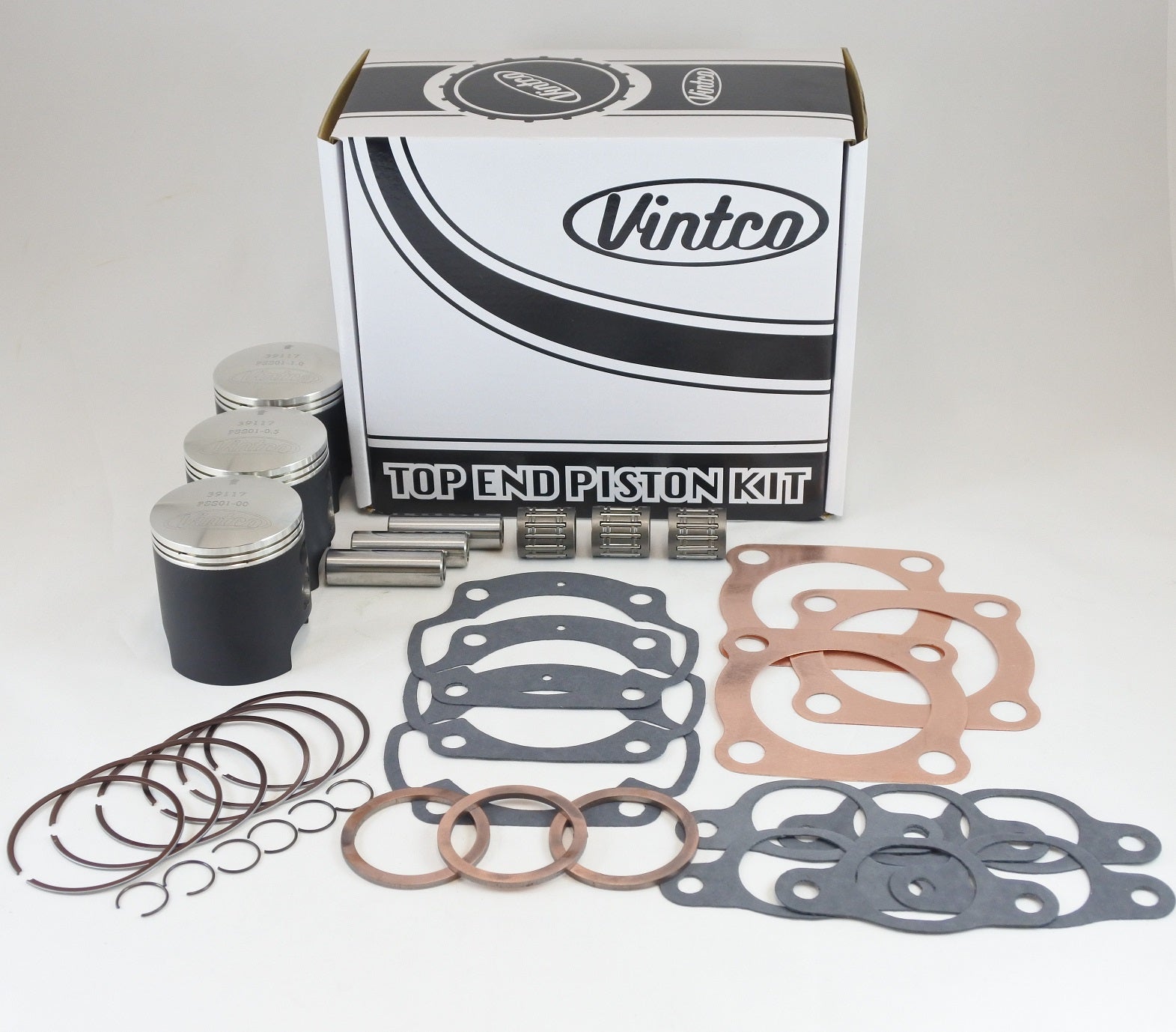

Top End Piston Kit 69-73 Kawasaki H1 500 60.0mm Standard Vintco KTK01-00

This VintCo top end piston kit is a complete rebuild set for the 1969-1973 Kawasaki H1-500 with a 60.0 mm standard bore. It includes three piston kits with the related top-end bearings and a full top-end gasket set for the entire engine top end, providing the required components for a straightforward rebuild with OEM-equivalent fitment and performance.

Features

• Complete top-end rebuild kit for Kawasaki H1-500 models
• Includes three piston kits with pistons, rings, pins and clips
• Includes top-end bearings
• Includes a full top-end gasket kit for the entire top end
• Suitable for standard bore applications
• Manufactured with modern materials and production methods for OEM-equivalent fitment and performance
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTK01-00
• Product type: Top End Piston Kit
• Bore size: 60.0 mm standard
• Piston size: 59.93 mm
• Piston clearance: 0.07 mm
• Pistons: 3
• Head gaskets: 3
• Base gaskets: 3
• Intake gaskets: 6
• Exhaust gaskets: 3
• Wrist pin bearings: 3
• Forged pistons
• Pistons made in Germany
• MoS2 coated pistons

Cross-Reference OEM Part Numbers

• Piston: 13001-031
• Head gasket: 11004-048
• Base gasket: 11009-019
• Intake gasket: 16062-011
• Exhaust gasket: 18067-008
• Wrist pin bearing: 93310-216E1-00

Vehicle Fitments

• 1969 Kawasaki H1-500
• 1970 Kawasaki H1-500
• 1971 Kawasaki H1-500
• 1972 Kawasaki H1-500
• 1973 Kawasaki H1-500
