Top End Gasket Kit 95-06 Kawasaki Kdx 200 Vintco KTE181
  • Top End Gasket Kit 95-06 Kawasaki Kdx 200 Vintco KTE181
  • Top End Gasket Kit 95-06 Kawasaki Kdx 200 Vintco KTE181
  • Top End Gasket Kit 95-06 Kawasaki Kdx 200 Vintco KTE181
  • Top End Gasket Kit 95-06 Kawasaki Kdx 200 Vintco KTE181
Top End Gasket Kit 95-06 Kawasaki Kdx 200 Vintco KTE181

Top End Gasket Kit 95-06 Kawasaki Kdx 200 Vintco KTE181

£45.32 GBP
Taxes included. Shipping calculated at checkout.

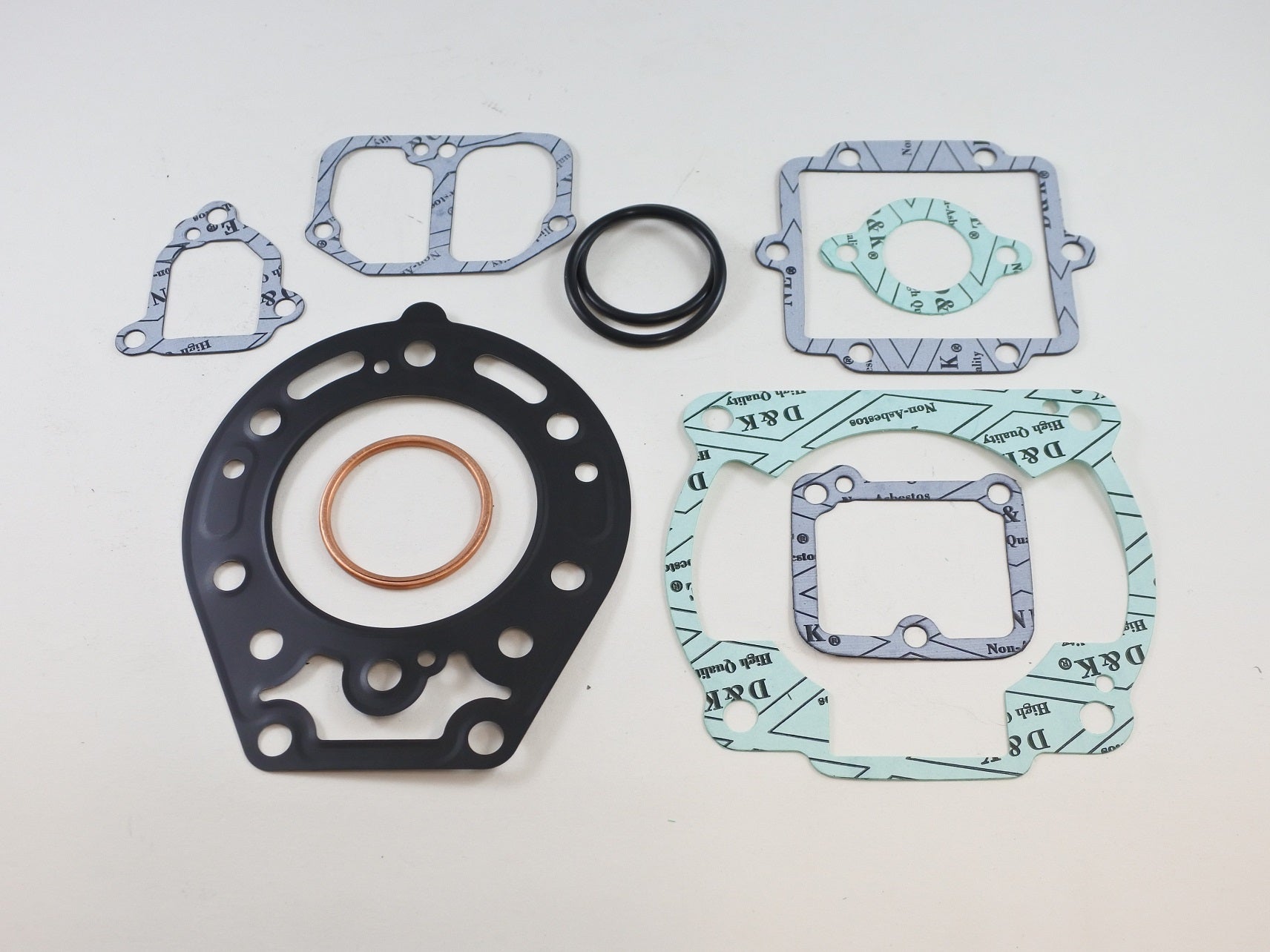

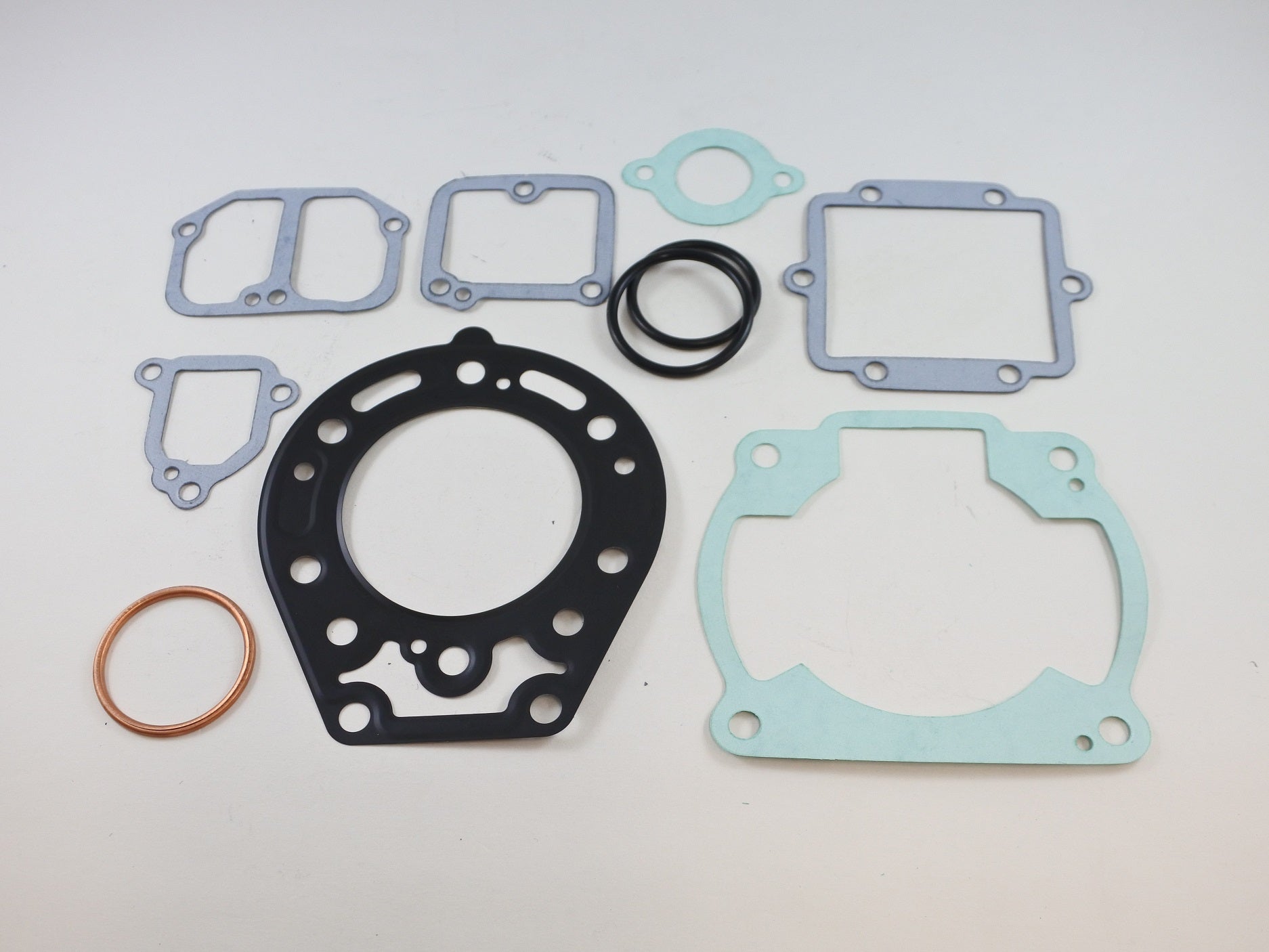

VintCo KTE181 is a top-end gasket kit for 1995-2006 Kawasaki KDX200 models, intended for top-end engine service and replacement of key sealing components. The kit includes a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket, two exhaust pipe O-rings, and four cylinder cover gaskets.

Features

  • Replacement gasket kit for top-end engine service
  • Covers cylinder head, cylinder base, intake, exhaust pipe and cylinder cover sealing points
  • Includes two exhaust pipe O-rings
  • Intended for 1995-2006 Kawasaki KDX200 models

Specifications

  • VintCo Part Number: KTE181
  • Product Type: Top-end gasket kit
  • Total Pieces: 10

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 11004-1298
  • Cylinder Base Gasket: 11060-1659
  • Intake Gasket: 11009-1941
  • Exhaust Pipe Gasket: 11009-1995
  • Exhaust Pipe O-Ring (x2): 670E3039
  • Cylinder Cover Gasket: 11060-1629
  • Cylinder Cover Gasket: 11060-1628
  • Cylinder Cover Gasket: 11009-1993
  • Cylinder Cover Gasket: 11060-1627

Vehicle Fitments

  • 1995 Kawasaki KDX200
  • 1996 Kawasaki KDX200
  • 1997 Kawasaki KDX200
  • 1998 Kawasaki KDX200
  • 1999 Kawasaki KDX200
  • 2000 Kawasaki KDX200
  • 2001 Kawasaki KDX200
  • 2002 Kawasaki KDX200
  • 2003 Kawasaki KDX200
  • 2004 Kawasaki KDX200
  • 2005 Kawasaki KDX200
  • 2006 Kawasaki KDX200
