TOP END GASKET KIT 93-93 YAMAHA YZ 125 VINTCO KTE143

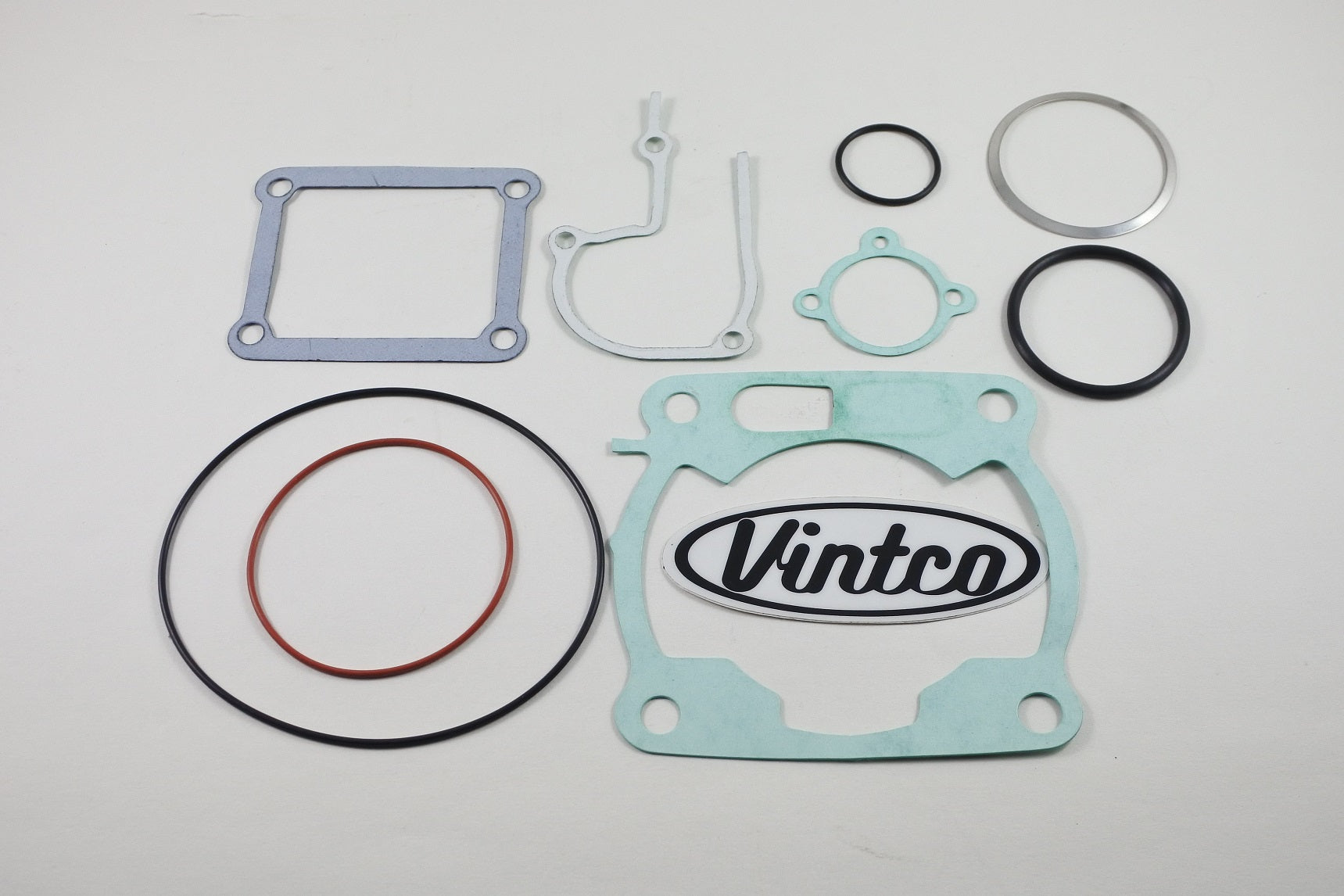

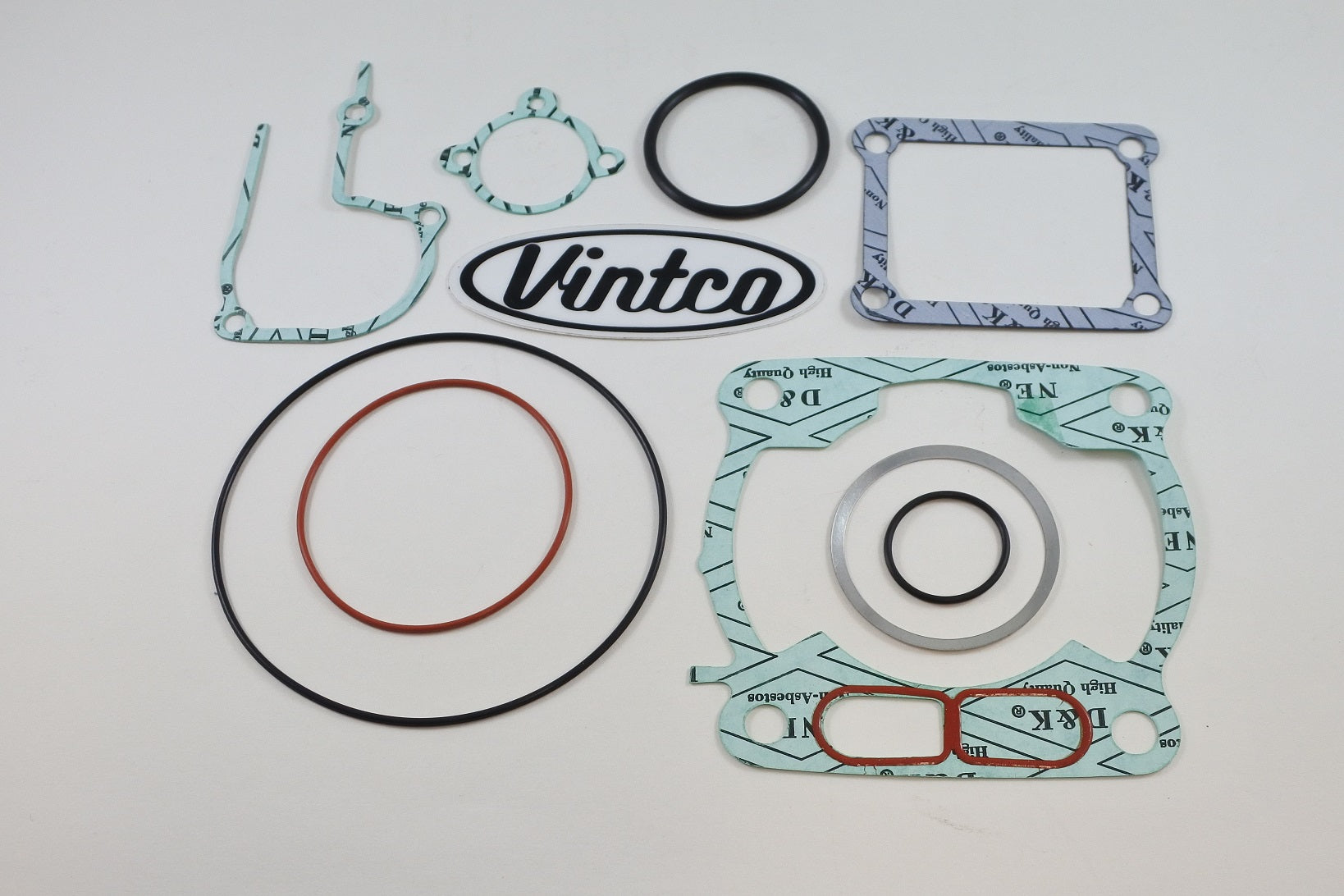

VintCo top end gasket kit KTE143 is designed for the 1993 Yamaha YZ125 and provides the components needed for top-end assembly and service. The kit includes cylinder head, cylinder base, intake, exhaust pipe, holder and YPVS housing gaskets, along with two O-rings. It is manufactured using modern materials and production methods for fitment and performance comparable to or better than OEM.

Features

• Complete top end gasket kit for top-end assembly and service
• Includes gaskets for the cylinder head, cylinder base, intake, exhaust pipe, holder and YPVS housing
• Includes 2 O-rings
• Designed for exact fitment using OEM cross-reference numbers
• Manufactured using modern materials and manufacturing techniques

Specifications

• VintCo Part Number: KTE143
• Product Type: Top end gasket kit
• Item Category: Gaskets

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 93211-07720-00
• Cylinder Head Gasket: 93210-65721-00
• Cylinder Base Gasket: 1LX-11351-10-00
• Intake Gasket: 4TP-13621-00-00
• Exhaust Pipe Gasket: 3R3-14613-00-00
• Exhaust Pipe Gasket: 93210-45742-00
• Holder Gasket: 4DB-1131N-00-00
• O-Ring (quantity 2): 93210-27672-00
• YPVS Housing Gasket: 4DB-11993-01-00

Vehicle Fitments

• 1993 Yamaha YZ125
