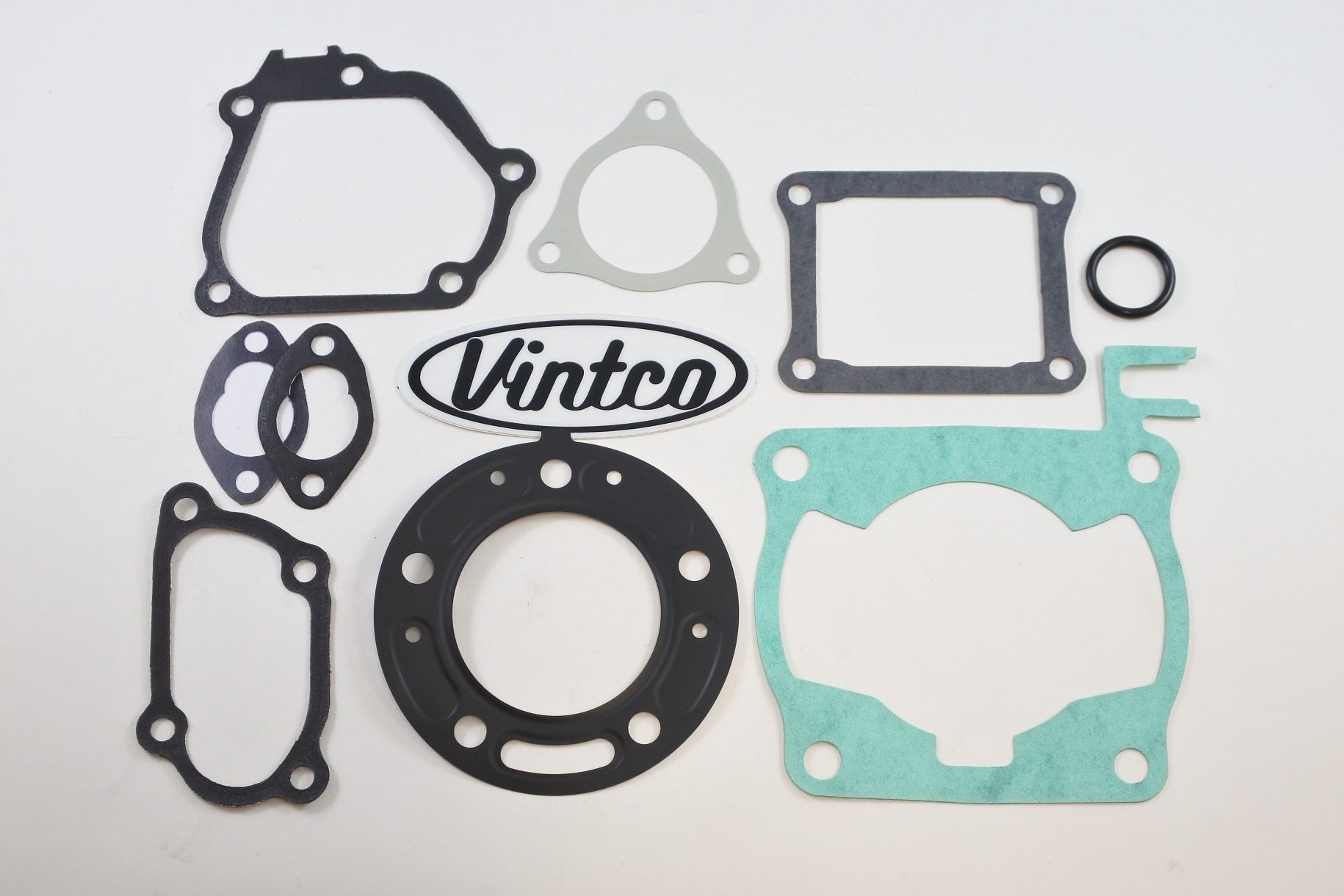

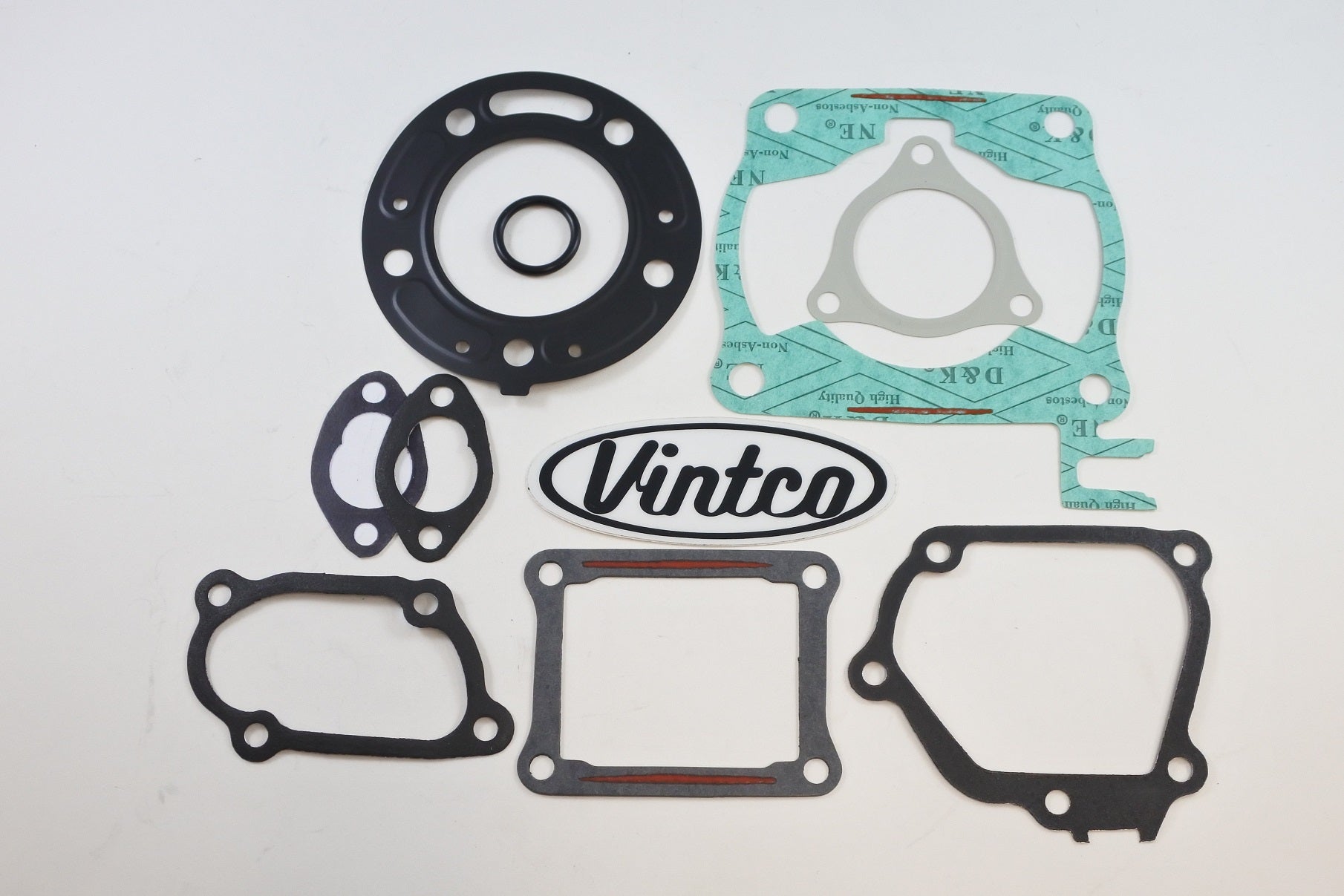

Top End Gasket Kit 90-97 Honda CR 125 55.5mm Bore Vintco KTE096

Top end gasket kit for 1990-1997 Honda CR125 models, designed for engines with a 55.5 mm bore. The kit includes the head gasket, base gasket, water hose O-ring, intake gasket, exhaust pipe gasket, and right, left, and upper powervalve cover gaskets for top-end service and reassembly.

Features

• Complete top end gasket kit for Honda CR125 models
• Intended for top-end service and engine reassembly
• Includes head gasket
• Includes base gasket
• Includes water hose O-ring
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes right powervalve cover gasket
• Includes left powervalve cover gasket
• Includes upper powervalve cover gasket

Specifications

• VintCo Part Number: KTE096
• Bore Size: 55.5 mm
• Product Type: Top end gasket kit
• Item Category: Gaskets

Cross-Reference OEM Part Numbers

• Head Gasket: 12251-KZ4-701
• Base Gasket: 12191-KZ4-620
• Water Hose O-ring: 91312-KE7-003
• Intake Gasket: 14132-KY4-970
• Exhaust Pipe Gasket: 18291-KZ4-700
• Right Powervalve Cover Gasket: 12108-KZ4-620
• Left Powervalve Cover Gasket: 12109-KZ4-620
• Upper Powervalve Cover Gasket: 12112-KZ4-620

Vehicle Fitments

• 1990 Honda CR125
• 1991 Honda CR125
• 1992 Honda CR125
• 1993 Honda CR125
• 1994 Honda CR125
• 1995 Honda CR125
• 1996 Honda CR125
• 1997 Honda CR125
