TOP END GASKET KIT 89-91 HONDA CR 500 BORE 90.2mm VINTCO KTE109
  • TOP END GASKET KIT 89-91 HONDA CR 500 BORE 90.2mm VINTCO KTE109
  • TOP END GASKET KIT 89-91 HONDA CR 500 BORE 90.2mm VINTCO KTE109
  • TOP END GASKET KIT 89-91 HONDA CR 500 BORE 90.2mm VINTCO KTE109
  • TOP END GASKET KIT 89-91 HONDA CR 500 BORE 90.2mm VINTCO KTE109
TOP END GASKET KIT 89-91 HONDA CR 500 BORE 90.2mm VINTCO KTE109

TOP END GASKET KIT 89-91 HONDA CR 500 BORE 90.2mm VINTCO KTE109

£37.76 GBP
Taxes included. Shipping calculated at checkout.

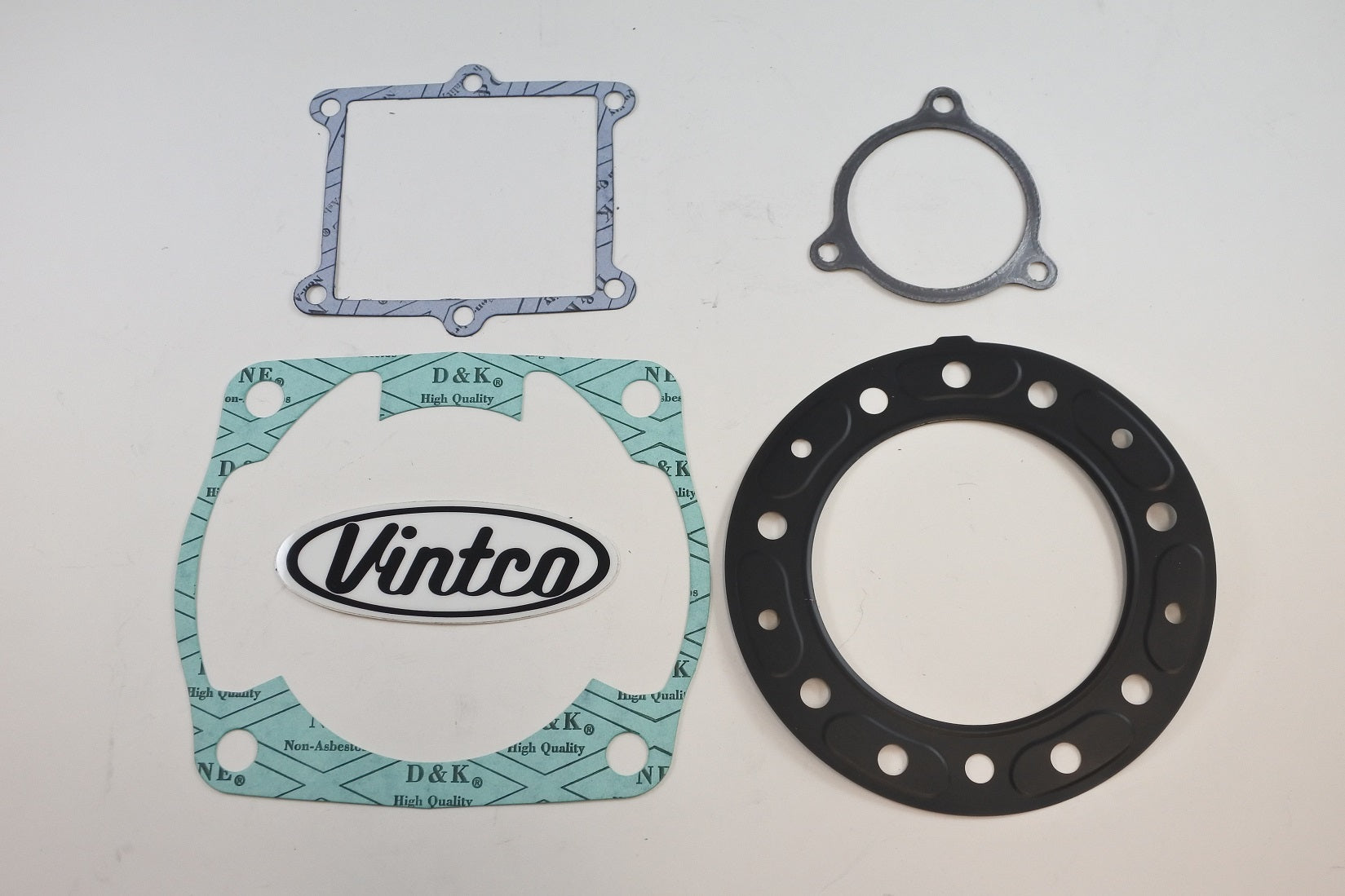

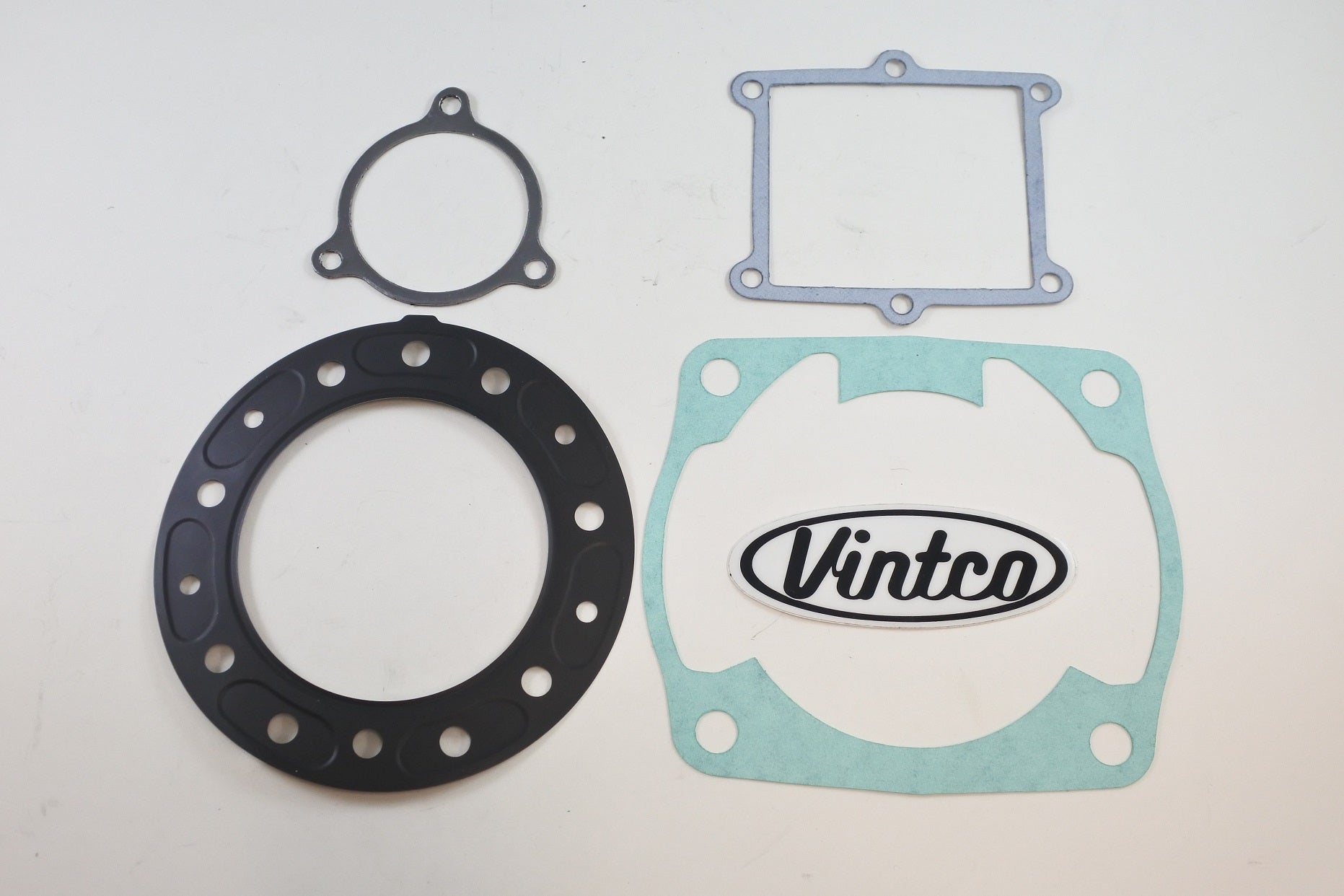

VintCo top end gasket kit KTE109 is a gasket set for 1989-1991 Honda CR500 models with a 90.2 mm bore. It is intended for top-end engine rebuilds and includes the head, base, intake, and exhaust pipe gaskets. The gaskets are produced using modern materials and manufacturing techniques to provide fitment and performance comparable to or better than OEM.

Features

  • Top end gasket kit for engine rebuild work
  • Includes head gasket
  • Includes base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Designed to complete top-end assembly
  • Manufactured using modern materials and manufacturing techniques
  • Intended to provide OEM-comparable or better fitment and performance

Specifications

  • VintCo Part Number: KTE109
  • Bore size: 90.2 mm
  • Item category: Gaskets

Cross-Reference OEM Part Numbers

  • Head Gasket: 12254-ML3-680
  • Base Gasket: 12191-MAC-680
  • Intake Gasket: 14132-KA5-306
  • Exhaust Pipe Gasket: 19291-KA5-306

Vehicle Fitments

  • 1989 Honda CR500
  • 1990 Honda CR500
  • 1991 Honda CR500
