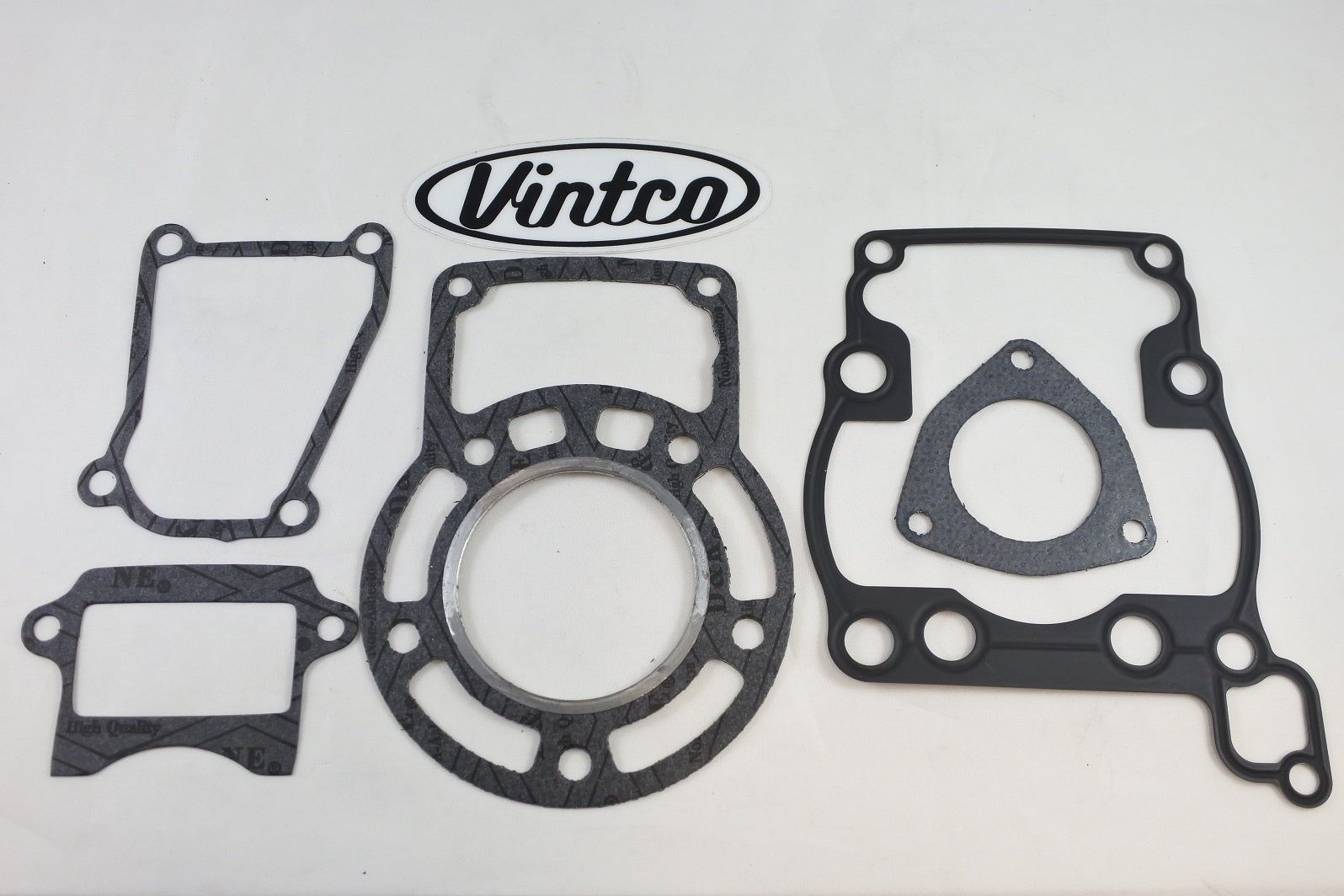

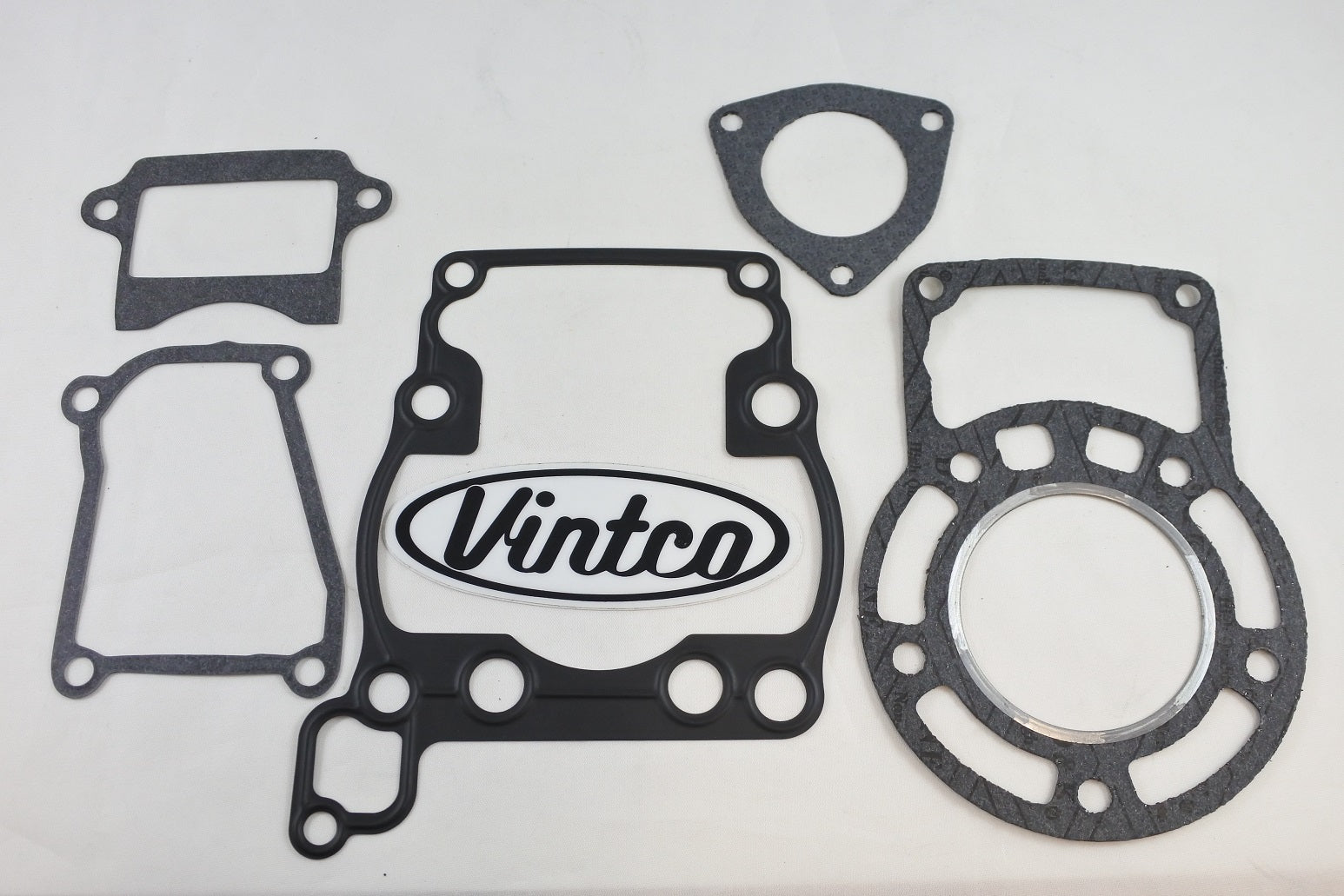

TOP END GASKET KIT 86-86 SUZUKI RM 125 BORE 54mm-57.5mm VINTCO KTE074

VintCo top end gasket kit for the 1986 Suzuki RM125, intended for top-end rebuild work and supplied with the key gaskets required to complete the assembly. The kit is produced using modern materials and manufacturing methods for OEM-level fitment and performance, and is specified for 54 mm to 57.5 mm bore applications.

Features

• Top end gasket kit for 1986 Suzuki RM125
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes reed valve gasket
• Includes cylinder cover gasket
• Includes exhaust pipe gasket
• Supplied with OEM part number references for fitment verification

Specifications

• VintCo Part Number: KTE074
• Item Category: Gaskets
• Application bore range: 54 mm to 57.5 mm
• Cylinder head gasket bore: 54 mm to 57.7 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11141-01B01-H17
• Cylinder base gasket: 11241-01B00-H17
• Reed valve gasket: 13156-14500-H17
• Cylinder cover gasket: 11233-01B00-H17
• Exhaust pipe gasket: 14181-40200-H17

Vehicle Fitments

• 1986 Suzuki RM125
