TOP END GASKET KIT 86-86 HONDA CR 125 BORE 56.5mm VINTCO KTE093

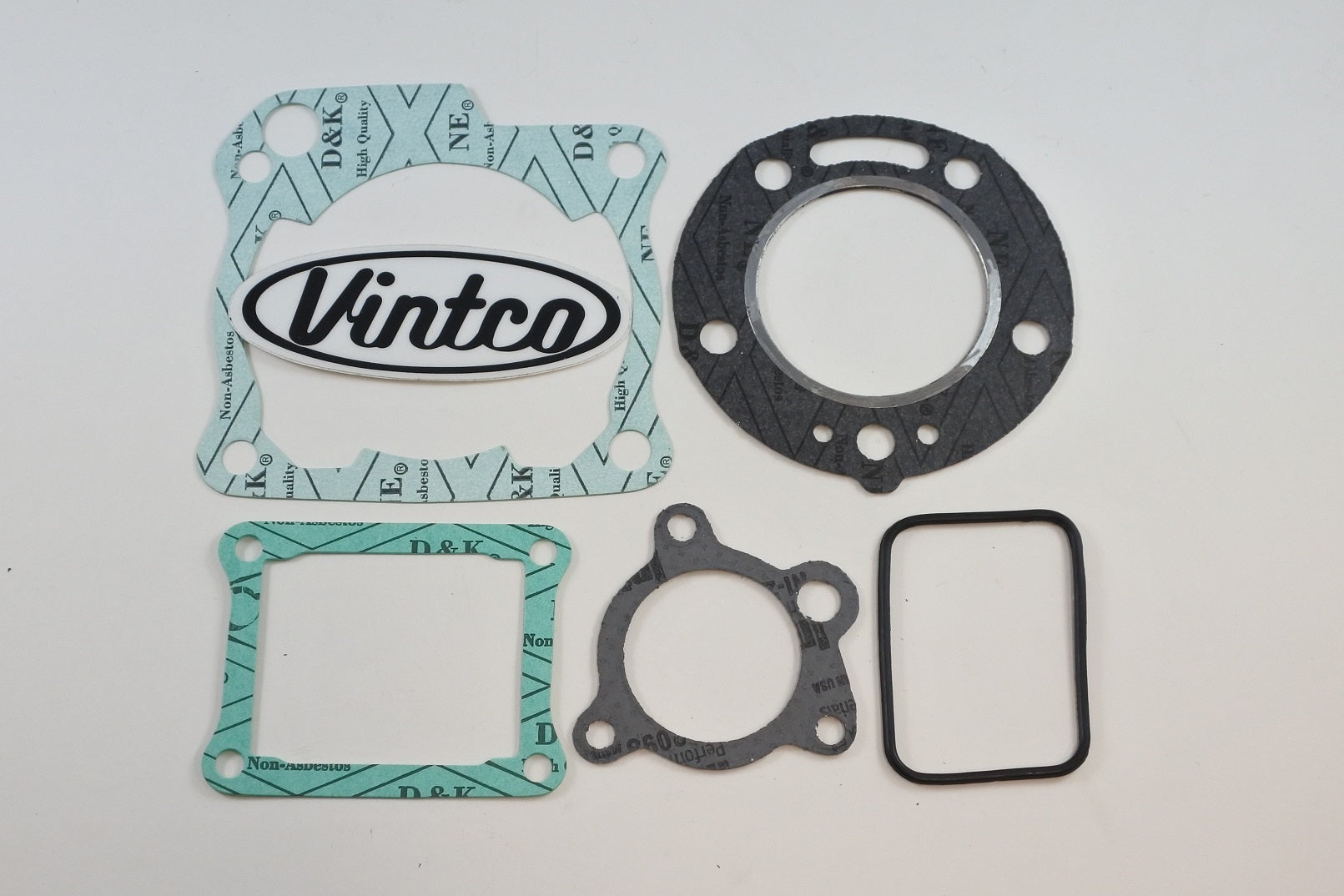

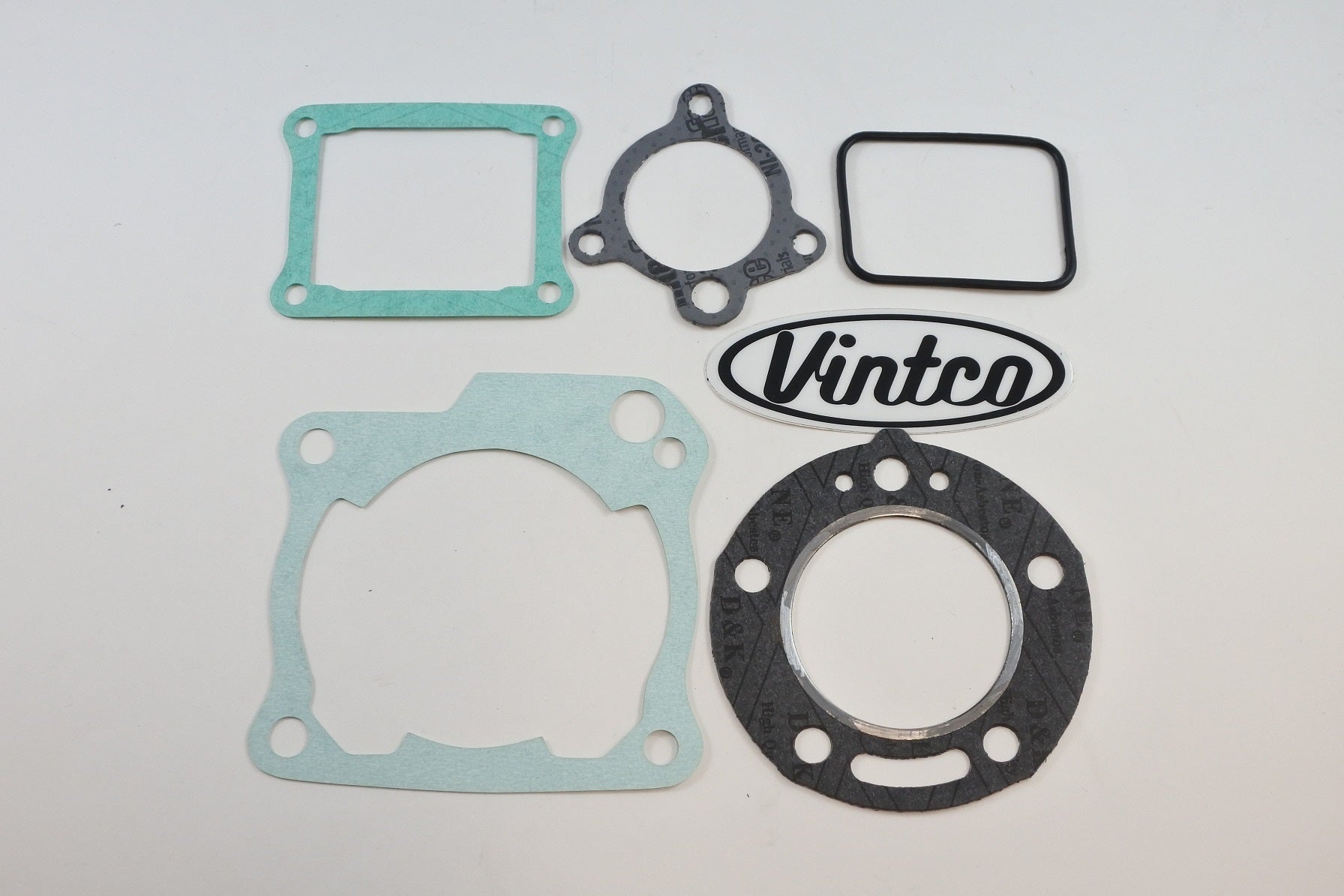

Top end gasket kit for the 1986 Honda CR125, designed for 56.5 mm bore applications. This kit includes the head gasket, base gasket, intake gasket, intake O-ring and exhaust pipe gasket, providing the required sealing components for a top end rebuild. Manufactured using modern materials and manufacturing techniques for OEM-equivalent fitment and performance.

Features

• Top end gasket kit for engine rebuild work
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes intake O-ring
• Includes exhaust pipe gasket
• Intended to provide correct sealing for top end assembly

Specifications

• VintCo Part Number: KTE093
• Bore size: 56.5 mm
• Application: 1986 Honda CR125

Cross-Reference OEM Part Numbers

• Head Gasket: 12251-KS6-307
• Base Gasket: 12191-KA3-307
• Intake O-ring: 91301-KS6-003
• Intake Gasket: 14132-KA3-306
• Exhaust Pipe Gasket: 18359-KS6-306

Vehicle Fitments

• 1986 Honda CR125
