TOP END GASKET KIT 85-88 HONDA CR 500 BORE 90.5mm VINTCO KTE108
  • TOP END GASKET KIT 85-88 HONDA CR 500 BORE 90.5mm VINTCO KTE108
  • TOP END GASKET KIT 85-88 HONDA CR 500 BORE 90.5mm VINTCO KTE108
  • TOP END GASKET KIT 85-88 HONDA CR 500 BORE 90.5mm VINTCO KTE108
  • TOP END GASKET KIT 85-88 HONDA CR 500 BORE 90.5mm VINTCO KTE108
TOP END GASKET KIT 85-88 HONDA CR 500 BORE 90.5mm VINTCO KTE108

TOP END GASKET KIT 85-88 HONDA CR 500 BORE 90.5mm VINTCO KTE108

£49.10 GBP
Taxes included. Shipping calculated at checkout.

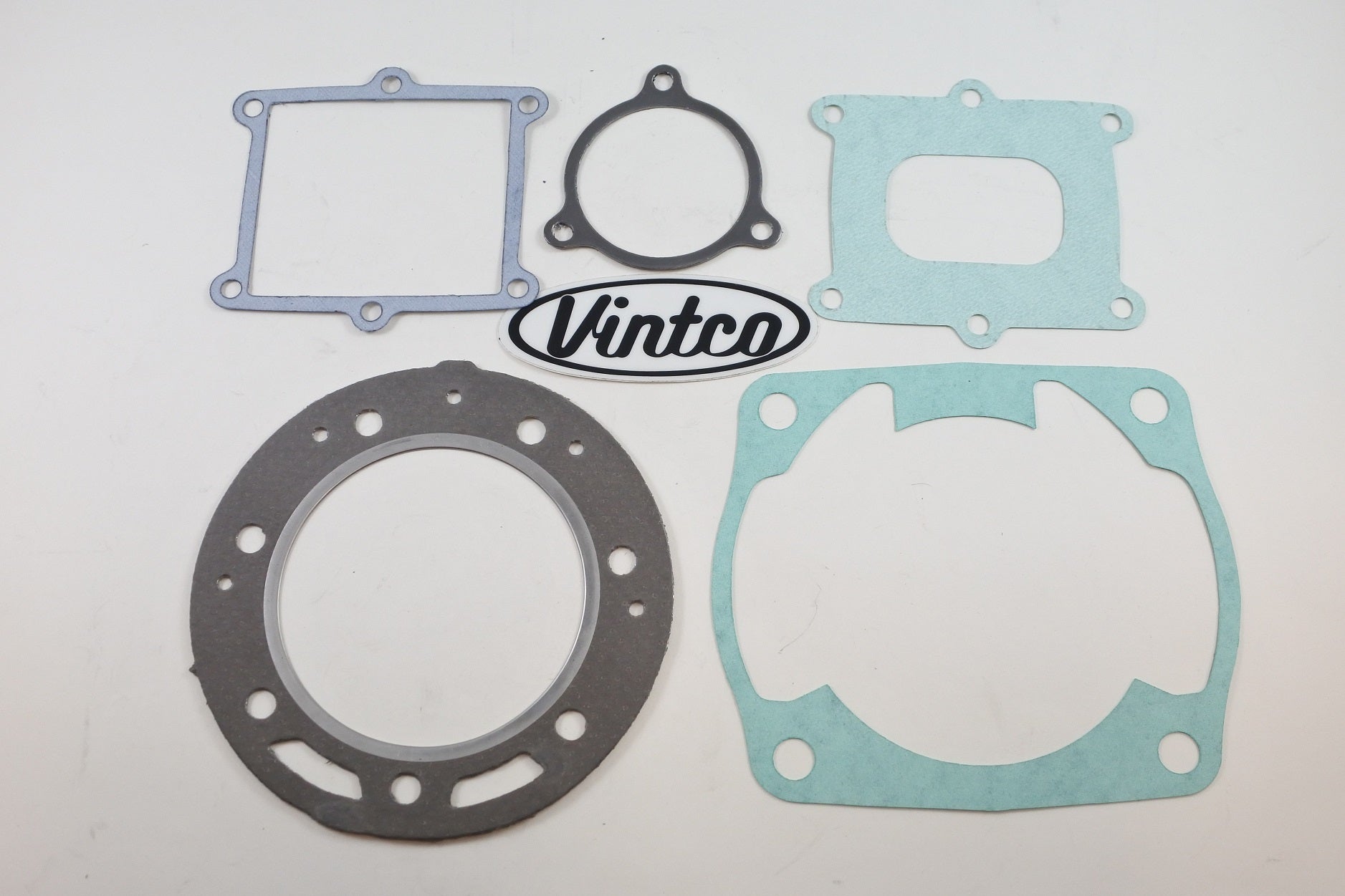

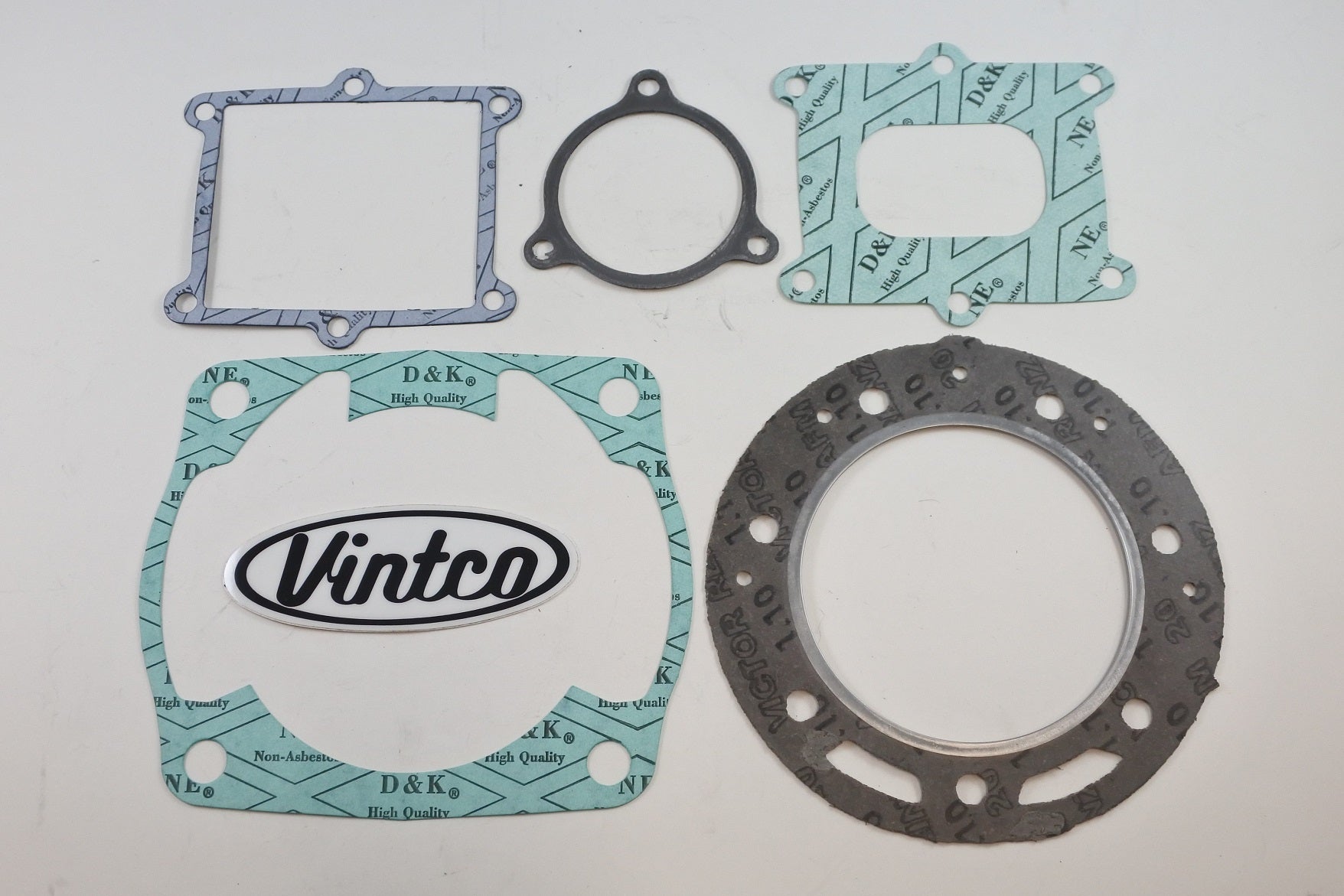

VintCo KTE108 is a top end gasket kit for Honda CR500 models, covering 1985-1988 applications with a 90.5 mm bore. The kit is designed for top-end service and includes the head gasket, base gasket, two intake gaskets, and exhaust pipe gasket. It is manufactured using modern materials and production methods to provide fit and performance comparable to or better than OEM.

Features

  • Top end gasket kit for Honda CR500 engines
  • Intended for top-end rebuild and service work
  • Includes head, base, two intake, and exhaust pipe gaskets
  • Supports straightforward assembly with the required top-end sealing components
  • One intake gasket is not used on 1988 models
  • Manufactured using modern materials and manufacturing techniques

Specifications

  • VintCo Part Number: KTE108
  • Product Type: Top end gasket kit
  • Bore Size: 90.5 mm

Cross-Reference OEM Part Numbers

  • Head Gasket: 12254-ML3-881
  • Base Gasket: 12191-MAC-680
  • Intake Gasket: 14132-KA5-306
  • Intake Gasket: 14133-KA5-306
  • Intake Gasket 14133-KA5-306 is not for 1988
  • Exhaust Pipe Gasket: 18291-KA5-306

Vehicle Fitments

  • 1985 Honda CR500
  • 1986 Honda CR500
  • 1987 Honda CR500
