STATOR COIL 88-00 HONDA TRX 300 FOURTRAX 12-POLE 31120-HC4-014 31120-HC4-004

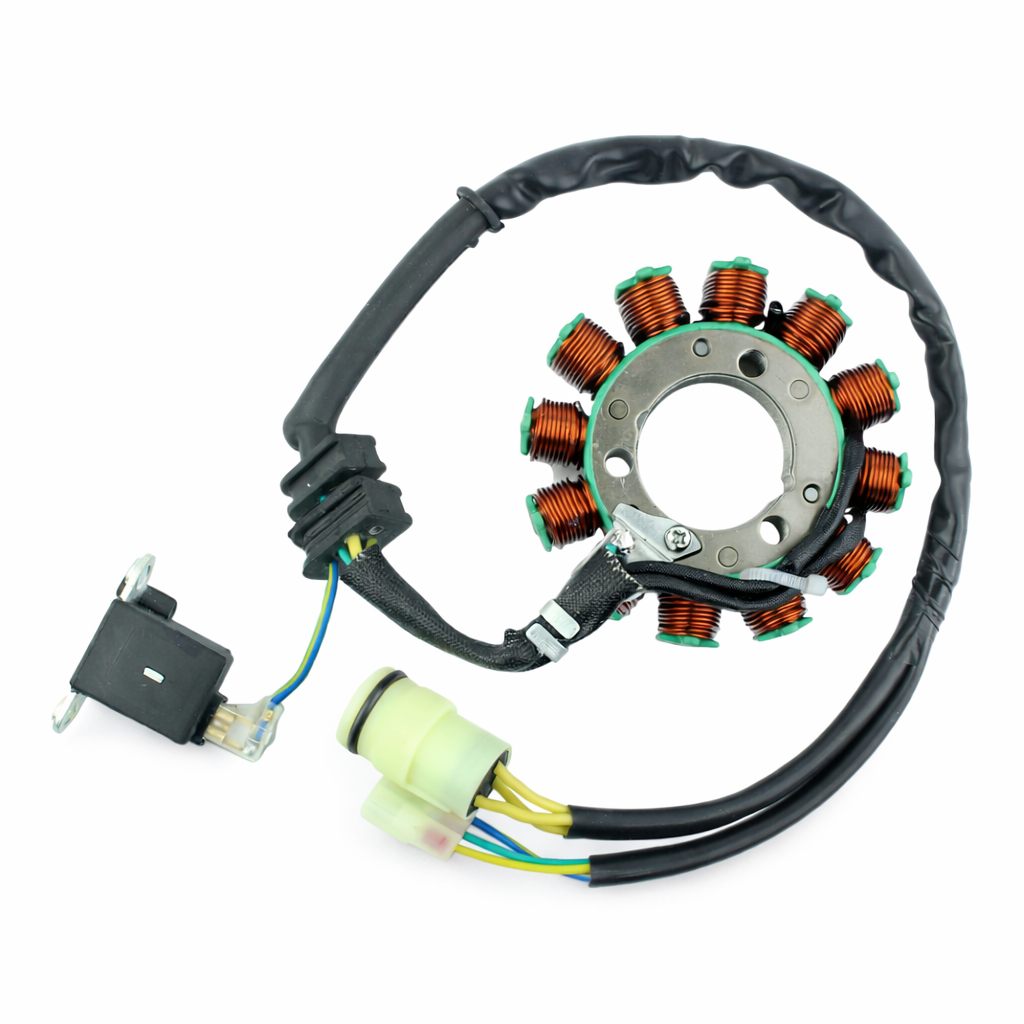

Replacement stator coil for Honda TRX300 Fourtrax and TRX300FW Fourtrax 300 models, designed for the 12-pole charging system and suitable for use in place of OEM part numbers 31120-HC4-014 and 31120-HC4-004. This unit is intended as a direct replacement for the Honda magneto stator assembly on compatible machines and is supplied for applications requiring the 12-pole version rather than the 18-pole type.

Features

• Compatible replacement for Honda TRX300 Fourtrax 300 models from 1988 to 2000
• Compatible replacement for Honda TRX300FW Fourtrax 300 models from 1988 to 2000
• Designed exclusively for 12-pole configuration
• Not compatible with the 18-pole version
• Premium copper windings
• Pick-up coil included

Specifications

• 12-pole stator

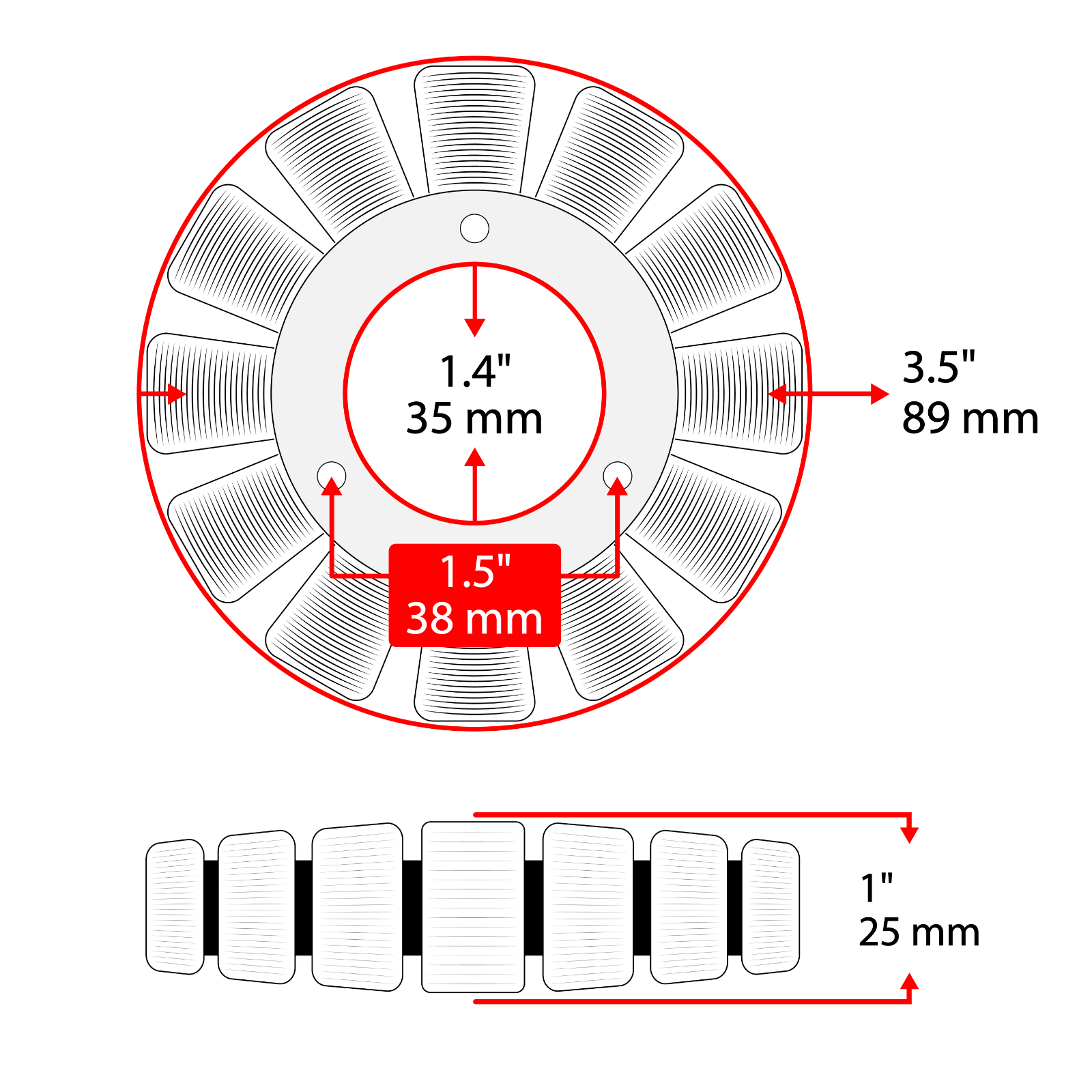

• Length: 96.7 mm
• Width: 96.7 mm
• Height: 13.5 mm
• Approximate internal diameter: 34 mm
• Approximate external diameter: 88 mm
• Approximate thickness from other source data: 15 mm

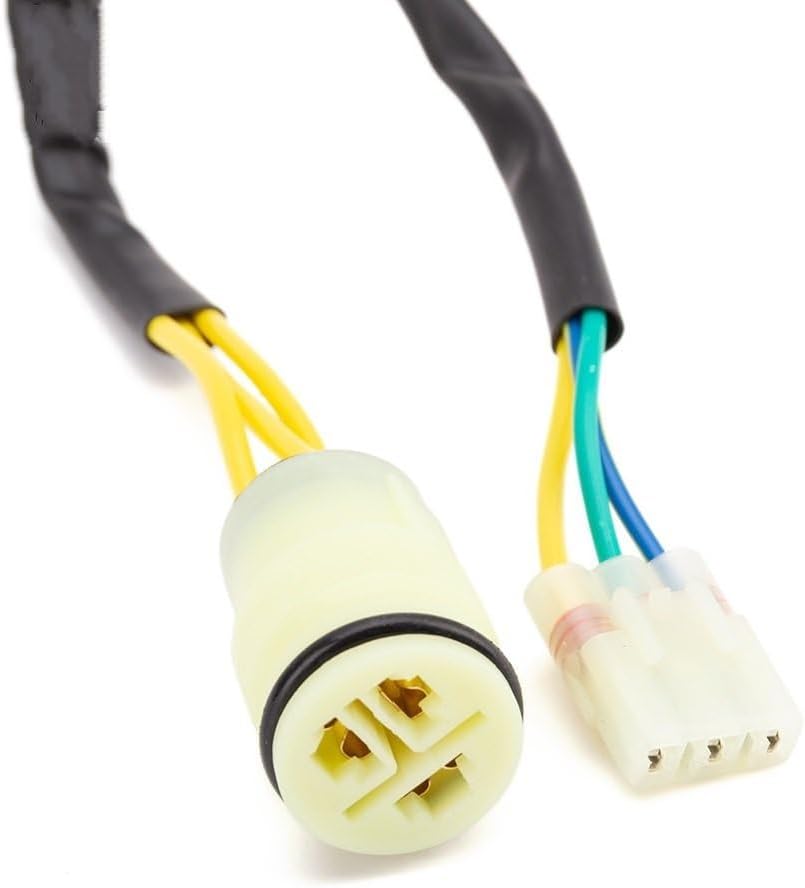

• Typical wiring configuration: 6 wires and 6 pins
• Copper windings rated to withstand temperatures up to 200°C

Cross-Reference OEM Part Numbers

• 31120-HC4-003
• 31120-HC4-004
• 31120-HC4-014
• 31120-HC4-750

Vehicle Fitments

• Honda TRX300 Fourtrax 300, 1988-2000
• Honda TRX300FW Fourtrax 300 4x4, 1988-2000
