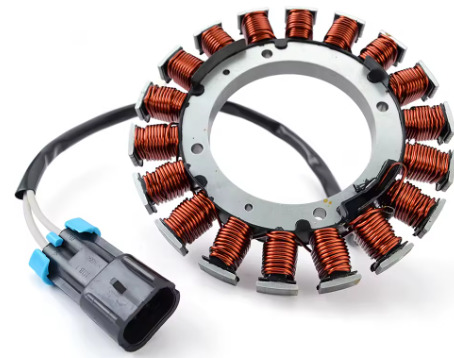

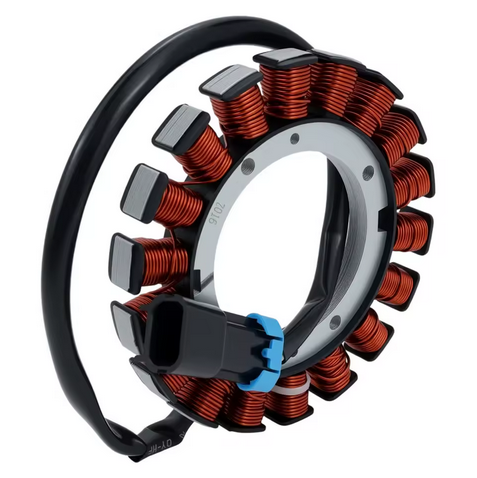

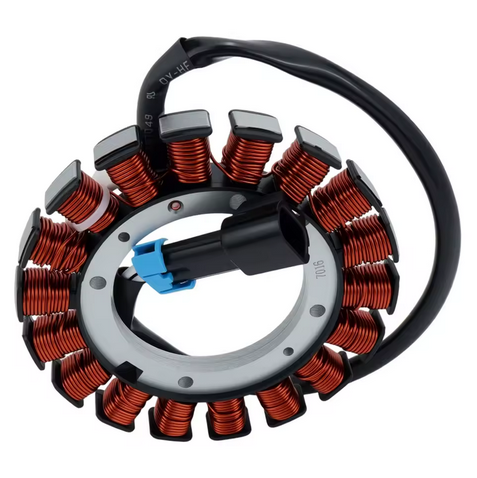

Stator Coil 2005-2016 Kawasaki KAF400 Mule 610 59031-2132

High-output stator designed as a direct OEM-spec replacement for Kawasaki KAF400 Mule applications. Built to meet or exceed OEM standards, it mounts to stock locations and is factory tested to ensure consistent charging performance under increased electrical loads.

Features

• Meets or exceeds OEM quality
• Direct OEM replacement
• Stock mounting locations
• Designed to handle increased power loads
• Best value for money
• Made to OEM specifications and matches the original equipment in appearance
• All electrical parts are 100% factory tested before shipping
• Due to the nature of electrical components, they are non-returnable and have no warranty
• Please check the image before ordering to avoid mistakes

Specifications

• Lam stack ID: 2.780" / 70.600 mm
• Lam stack OD: 5.425" / 137.800 mm
• Lam stack thickness: 0.843" / 21.400 mm
• Voltage: 12 V

Cross-Reference OEM Part Numbers

• 59031-2132
• 340-58067
• 59031-7016

Vehicle Fitments

• Kawasaki KAF400 Mule SX 2017–2023
• Kawasaki KAF400 Mule SX 4x4 SE 2017–2018
• Kawasaki KAF400 Mule SX 4x4 XC 2017–2018
• Kawasaki KAF400 Mule 600 2005–2016
• Kawasaki KAF400 Mule 610 4x4 2005–2016
• Kawasaki KAF400 Mule 610 4x4 XC 2010–2014
• Kawasaki KAF400 Mule 610 4x4 XC SE 2014–2016
• Kawasaki KAF400 Mule 610 4x4 XC Camo 2014–2017
• Kawasaki KAF400 Mule 610 4x4 XC Realtree APG HD 2011–2013
• Kawasaki KAF400 Mule 610 4x4 Hardwoods Green HD 2005–2009
