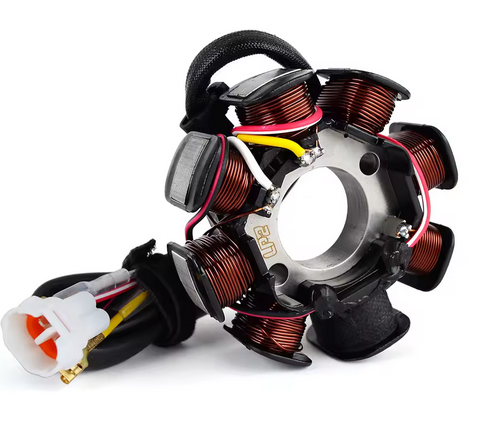

Stator Coil 10-18 Beta RR 125 250 300 390 400 480 520 Xtrainer 006100200000 XQ-525

This stator coil is a replacement electronic ignition charging component for Beta RR and Xtrainer models. It is intended as a direct replacement for the original unit and is used within the motorcycle’s electrical system to support ignition and charging functions on compatible 2-stroke and 4-stroke applications.

Features

• Direct replacement stator coil for compatible Beta models
• Supports ignition and charging system operation
• Suitable for repair or replacement of a faulty original unit
• Factory tested for functional reliability
• Built to OEM-equivalent fitment standard

Specifications

• Product type: stator coil
• Also identified as: stator / backplate stator
• Installation area: electronic ignition assembly

Cross-Reference OEM Part Numbers

• 006100200000
• XQ-525
• 44-0275.AAA

Vehicle Fitments

• Beta Xtrainer 2015–2018
• Beta RR 125 2T 2018
• Beta RR 250 2T 2013–2018
• Beta RR 300 2T 2013–2018
• Beta RR 250 Racing 2014–2018
• Beta RR 300 Racing 2013–2018
• Beta RR 350 4T 2011–2014
• Beta RR 390 4T 2015
• Beta RR 400 4T 2011–2014
• Beta RR 430 4T 2015
• Beta RR 450 4T 2011–2014
• Beta RR 480 4T 2015
• Beta RR 498 4T 2012–2014
• Beta RR 520 4T 2010–2011
• Beta RR Factory 2012
• Beta RR 350 Factory 2014
• Beta RR Cross Country 2012
• Beta RR 350 Racing 2013, 2015
• Beta RR 430 Racing 2015
• Beta RR 450 Racing 2013–2015
• Beta RR 480 Racing 2014–2015
