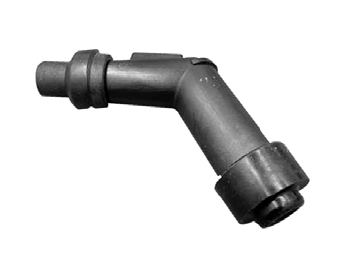

SPARK PLUG CAP VB05FP VB05F NGK STYLE

This spark plug cap is an NGK-style VB05FP configuration, featuring a compact 120° elbow with an integrated 5 kΩ resistor for interference suppression. The VB05F is the same specification as VB05FP, with the ‘P’ suffix indicating a waterproof cover. Suitable for 10–12 mm plug threads with a stud terminal connection and a durable Bakelite body.

Features

• NGK-style VB05FP pattern with 120° elbow layout

• Integrated 5 kΩ resistor

• Waterproof cap design on VB05FP (‘P’ denotes waterproof cover)

• Compatible with 10–12 mm spark plug threads

• Stud terminal connection

• Bakelite (phenolic) construction

Specifications

• Resistor value: 5 kΩ

• Elbow angle: 120°

• Spark plug thread size: 10–12 mm

• Terminal type: Stud

• Material: Bakelite (phenolic)

Cross-Reference OEM Part Numbers

• VB05FP

• VB05F
