SKF Fork Guide & Slide Bushing Set 48mm - Marzocchi VKWA-MAR48-A

SKF fork bushing kit for 48 mm Marzocchi and ZF Sachs front forks, supplied as one inner and one outer bushing to service a single fork leg, intended to provide low-friction fork guidance with corrosion-resistant steel backing.

Features

• Suitable for Marzocchi and ZF Sachs 48 mm front forks
• Kit services one fork leg (two kits required to service both forks)
• Maintenance-free operation with a self-lubricating sliding layer
• Low-friction performance under side load
• High load-carrying capability
• Stable operation across a wide temperature range
• Small operating clearance for improved fork guidance
• Dimension marking for quick product identification

Specifications

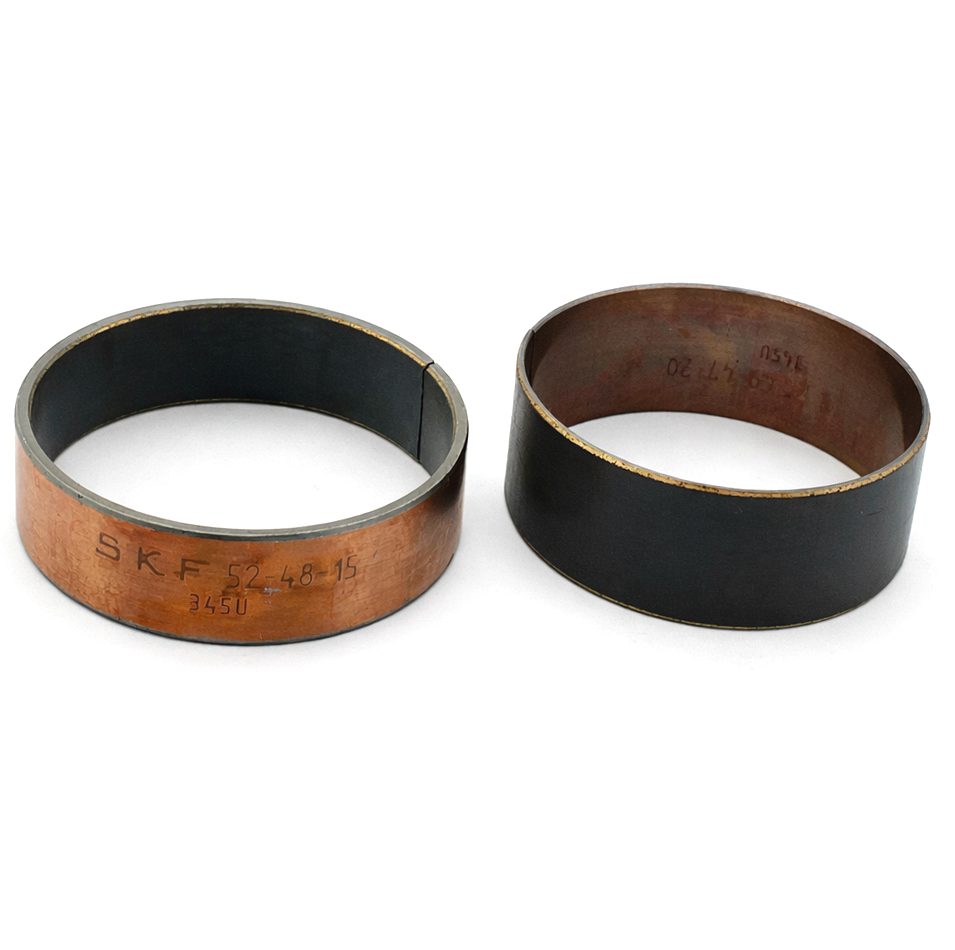

• Kit contents: 1 outer bushing (PTFE inside), 1 inner bushing (PTFE outside)
• Fork diameter: 48 mm
• Outer bushing dimensions: 48 × 52 × 15 mm
• Inner bushing dimensions: 49 × 47 × 20 mm
• Sliding layer: PTFE-based composite
• Intermediate layer: thin bronze layer
• Backing: steel with copper plating (corrosion protection)

Cross-Reference Numbers

• VKWA-MAR48-A

Vehicle Fitments

• Aprilia SXV 550 2008
• Beta RR 300 2T 2011-2012
• Beta RR 400 2011-2012
• Beta RR 498 2012
• Gas Gas EC 200 2013-2015
• Gas Gas EC 250 2011-2025
• Gas Gas EC 250F 2013-2025
• Gas Gas EC 300 2011-2026
• Gas Gas EC 300F 2013-2015
• Gas Gas EC 450F 2013-2015
