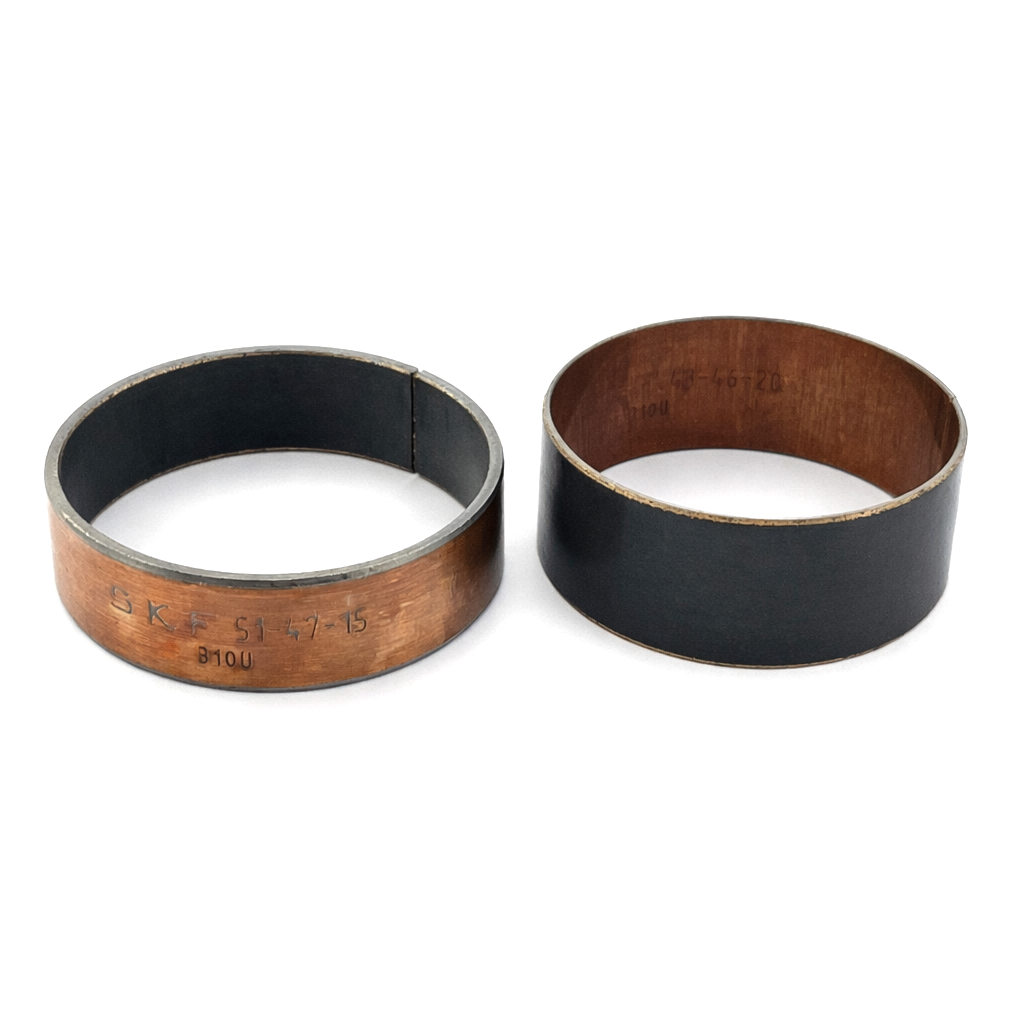

SKF Fork Guide & Slide Bushing Set 47mm - Showa VKWA-SHO47-A

SKF fork guide and slide bushing set for 47 mm Showa front forks, supplied as one inner bushing and one outer bushing to service a single fork leg, intended to provide low-friction fork guidance with a self-lubricating sliding surface and corrosion-resistant backing.

Features

• Suitable for 47 mm Showa front forks
• Kit services one fork leg (two kits required to service both forks)
• Maintenance-free operation
• Low-friction properties under side load
• High load-carrying capability
• Stable operation across a wide temperature range
• Small operating clearance for improved fork guidance
• Dimension marking for quick product identification

Specifications

• Kit contents: 1 inside bushing, 1 outside bushing
• Inside bushing dimensions: 47 × 51 × 15 mm
• Outside bushing dimensions: 48 × 46 × 20 mm
• Sliding layer: PTFE-based self-lubricating composite
• Intermediate layer: thin bronze layer
• Backing: steel with copper plating (corrosion protection)

Cross-Reference Numbers

• VKWA-SHO47-A
• 1122535
• 7316581872312

Vehicle Fitment

• Honda CR 250 R 1997-2007
• Honda CRF 250 R 2004-2009
• Honda CRF 250 X 2004-2017
• Honda CRF 450 R 2002-2008
• Honda CRF 450 X 2005-2017
• Suzuki RM 125 2001-2010
• Suzuki RM 250 2004-2010
• Suzuki RM-Z 250 2007-2012
• Suzuki RM-Z 450 2005-2012
• Suzuki RMX 450 Z 2012-2017
• Kawasaki KX 250 F 2006-2012
