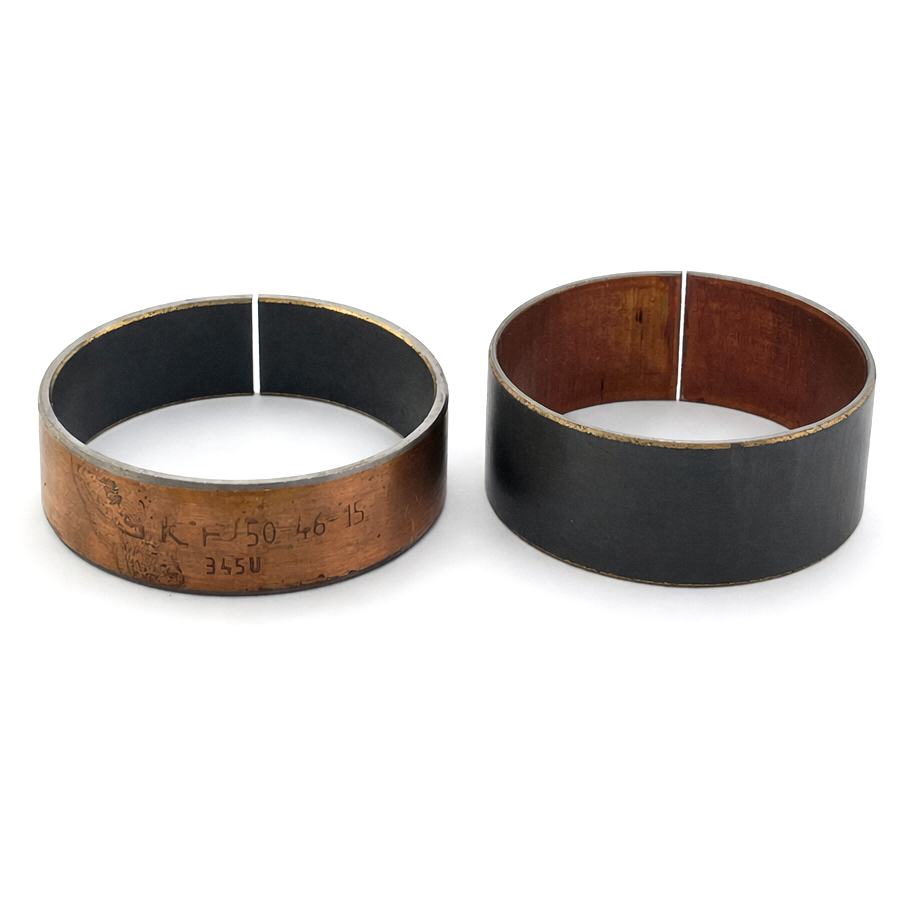

SKF Fork Guide & Slide Bushing Set 46mm (TYPE2) - Kayaba VKWA-KYB46-B

SKF fork bushing kit for 46 mm Kayaba (KYB) front forks, supplied as one inner and one outer bushing for servicing a single fork leg, designed to provide low-friction fork guidance with corrosion-resistant backing and reduced routine maintenance.

Features

• Suitable for Kayaba (KYB) 46 mm front forks (Type 2 / Type B)
• Kit services one fork leg (two kits required to service both forks)
• Maintenance-free operation (no lubrication required)
• Low-friction sliding performance to reduce stiction
• High load-carrying capability under side load
• Stable operation across a wide temperature range
• Small operating clearance for improved fork guidance
• Dimension marking for quick product identification
• Front mounting position

Specifications

• Kit contents: 1 internal bushing, 1 external bushing
• Fork inner tube diameter: 46.0 mm
• Internal bushing dimensions: 46 × 50 × 15 mm
• External bushing dimensions: 45 × 47 × 20 mm
• Sliding layer: PTFE-based
• Intermediate layer: thin bronze layer
• Backing: steel with copper plating (corrosion protection)

Cross-Reference Numbers

• VKWA-KYB46-B
• SKF-VKWA-KYB46-B
• 1122523

Vehicle Fitments

• Suzuki RM250 (2003)
• Yamaha WR250F (2004)
• Yamaha WR450F (2004)
