SKF Fork Guide & Slide Bushing Set 46mm (Type1) - Kayaba VKWA-KYB46-A

SKF fork guide and slide bushing set for 46 mm Kayaba (KYB) front forks (Type A), supplied as one inner bushing and one outer bushing to service a single fork leg, intended to provide low-friction fork guidance with a self-lubricating sliding surface and corrosion-resistant backing.

Features

• Suitable for 46 mm Kayaba (KYB) front forks (Type A)
• Kit services one fork leg (two kits required to service both forks)
• Maintenance-free operation
• Low-friction properties under side load
• High load-carrying capability
• Stable operation across a wide temperature range
• Small operating clearance for improved guidance
• Dimension marking for quick product identification
• Corrosion-resistant backing for durability

Specifications

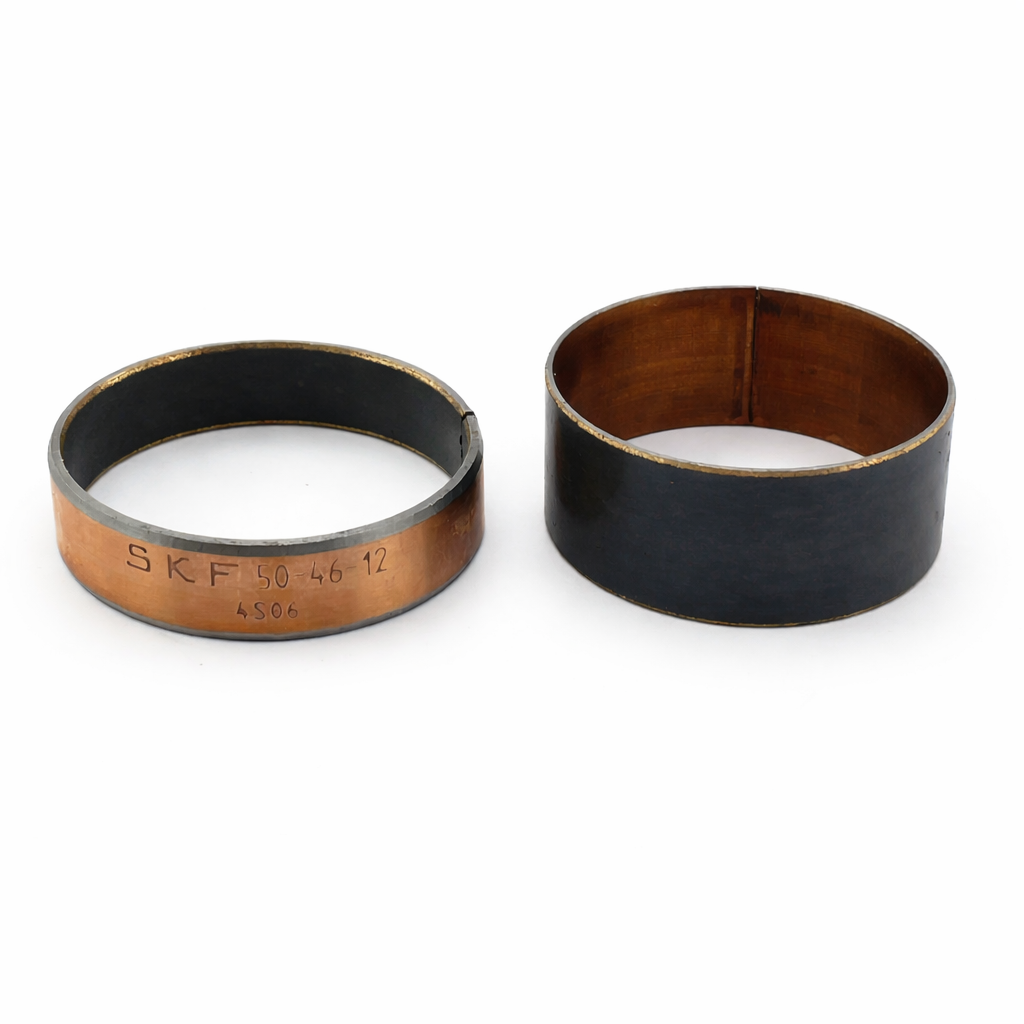

• Kit contents: 1 inner bushing (PTFE outside), 1 outer bushing (PTFE inside)
• Fork inner tube diameter: 46.0 mm
• Inner bushing dimensions: 47 × 45 × 20 mm
• Outer bushing dimensions: 46 × 50 × 12 mm
• Sliding layer: PTFE-based composite
• Intermediate layer: thin bronze layer
• Backing: copper-plated steel (corrosion protection)

Cross-Reference Numbers

• VKWA-KYB46-A
• SKF-VKWA-KYB46-A

Vehicle Fitments

• Honda CR 125 R 1997-2007
• Honda CR 250 R 1996-1996
• Honda CR 500 R 1996-2001
• Kawasaki KX 125 1995-2001
• Kawasaki KX 500 2001-2004
• Suzuki RM 250 2001-2002
• Yamaha WR 250 F 2002-2003
• Yamaha WR 400 F 1998-2000
• Yamaha WR 426 F 2001-2002
• Yamaha WR 450 F 2003-2003
• Yamaha YZ 125 1996-2003
• Yamaha YZ 250 1996-2003
• Yamaha YZ 250 F 2001-2003
• Yamaha YZ 400 F 1998-1999
• Yamaha YZ 426 F 2000-2002
• Yamaha YZ 450 F 2003-2003
• Kawasaki KX 250 (2 Stroke) 1996-2001
