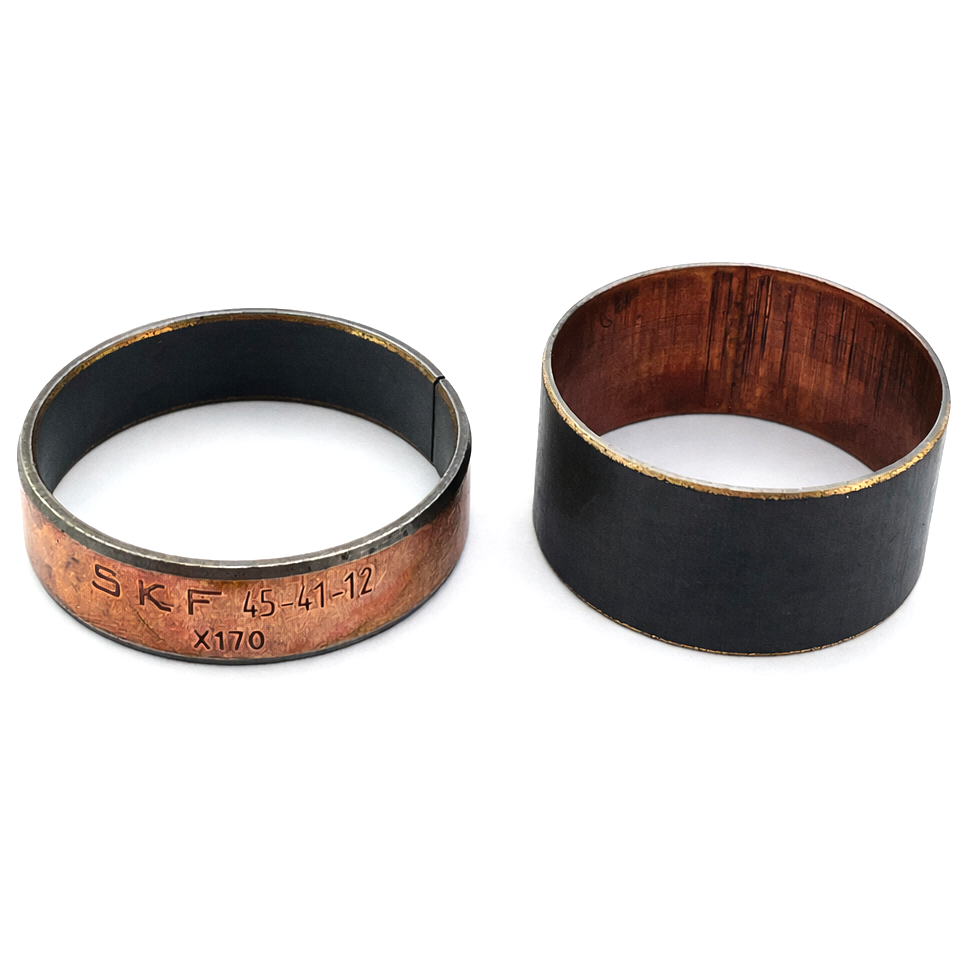

SKF FORK GUIDE & SLIDE BUSHING SET 41mm (Type1) - KAYABA VKWA-KYB41-A

SKF fork guide and slide bushing set for 41 mm Kayaba (KYB) front forks (Type A), supplied as one inner bushing and one outer bushing to service a single fork leg, intended to provide low-friction fork guidance with a self-lubricating sliding surface and corrosion-resistant backing.

Features

• Suitable for 41 mm Kayaba (KYB) front forks (Type A)
• Kit services one fork leg (two kits required to service both forks)
• Maintenance-free operation
• Low-friction properties under side load
• High load-carrying capability
• Stable operation across a wide temperature range
• Small operating clearance for improved guidance
• Dimension marking for quick product identification

Specifications

• Fork inner tube diameter: 41.0 mm
• Kit contents: 1 internal PTFE bushing, 1 external PTFE bushing
• Internal bushing dimensions: 41 × 45 × 12 mm
• External bushing dimensions: 39 × 41 × 20 mm
• Sliding layer: PTFE-based self-lubricating composite
• Intermediate layer: thin bronze layer
• Backing: copper-plated steel (corrosion protection)

Cross-Reference Numbers

• VKWA-KYB41-A

Vehicle Fitments

• Honda XR 250 R 2003-2004
• Kawasaki KX 125 1989-1992
• Kawasaki KX 500 1990
• Suzuki RM 250 1987-1990
• Yamaha YZ 125 1989-1990
• Kawasaki KX 250 1990-1991
