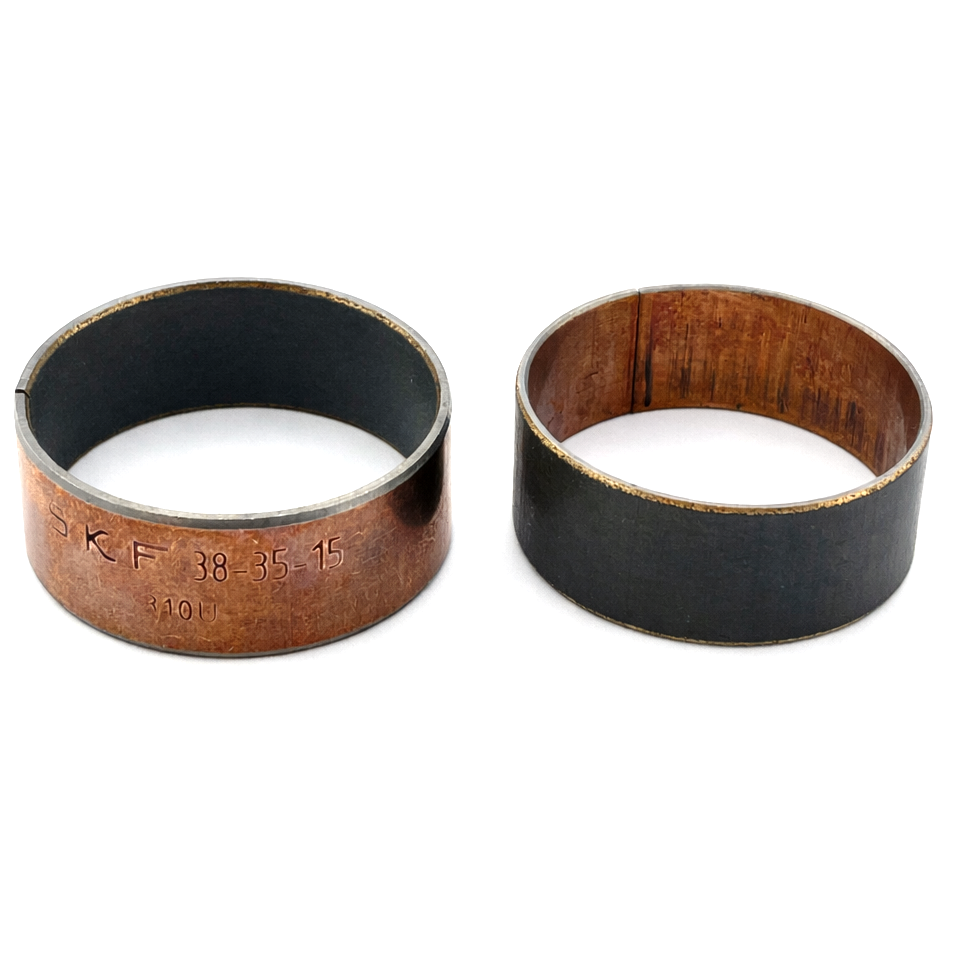

SKF FORK GUIDE & SLIDE BUSHING SET 35mm - WP/MARZOCCHI VKWA-WP35-A

SKF fork bushing kit for 35 mm WP/Marzocchi front forks, supplied as one inner and one outer bushing to service a single fork leg, intended to provide low-friction fork guidance with corrosion-resistant backing.

Features

• Suitable for WP/Marzocchi 35 mm front forks
• Kit services one fork leg (two kits required to service both forks)
• Maintenance-free operation with a self-lubricating sliding layer
• Low-friction sliding performance to reduce stiction
• High load-carrying capability under side load
• Small operating clearance for improved fork guidance
• Front mounting position

Specifications

• Kit contents: 1 inner bushing, 1 outer bushing
• Fork tube diameter: 35.00 mm (1.38")
• Outer bushing dimensions: 35 × 38 × 12 mm
• Inner bushing dimensions: 36 × 34 × 15 mm
• Sliding layer: PTFE-based composite
• Intermediate layer: bronze
• Backing: steel with copper plating (corrosion protection)

Cross-Reference Numbers

• VKWA-WP35-A
• SKF-VKWA-WP35-A

Vehicle Fitments

• GASGAS MC 125 2021-2022
• GASGAS MC 50 2021-2025
• GASGAS MC 65 2021-2025
• GASGAS MC-E 5 2020-2024
• HUSQVARNA EE 5 2020-2024
• HUSQVARNA TC 50 2017-2025
• HUSQVARNA TC 65 2017-2025
• KTM SX 50 2017-2024
• KTM SX 65 2017-2024
• POLINI XP 65 R 2010
